OUTBOARD MOTOR INSTALLATION
90-857046R1 NOVEMBER 2001 Page 1D-13
Trim-In Stop Adjustment – Power Trim Models
If an adjustment is required, purchase a stainless steel tilt pin (P/N 17-49930A1) and insert
it through whatever pin hole is desired. The non-stainless steel shipping bolt should not be
used in this application other than on a temporary basis.

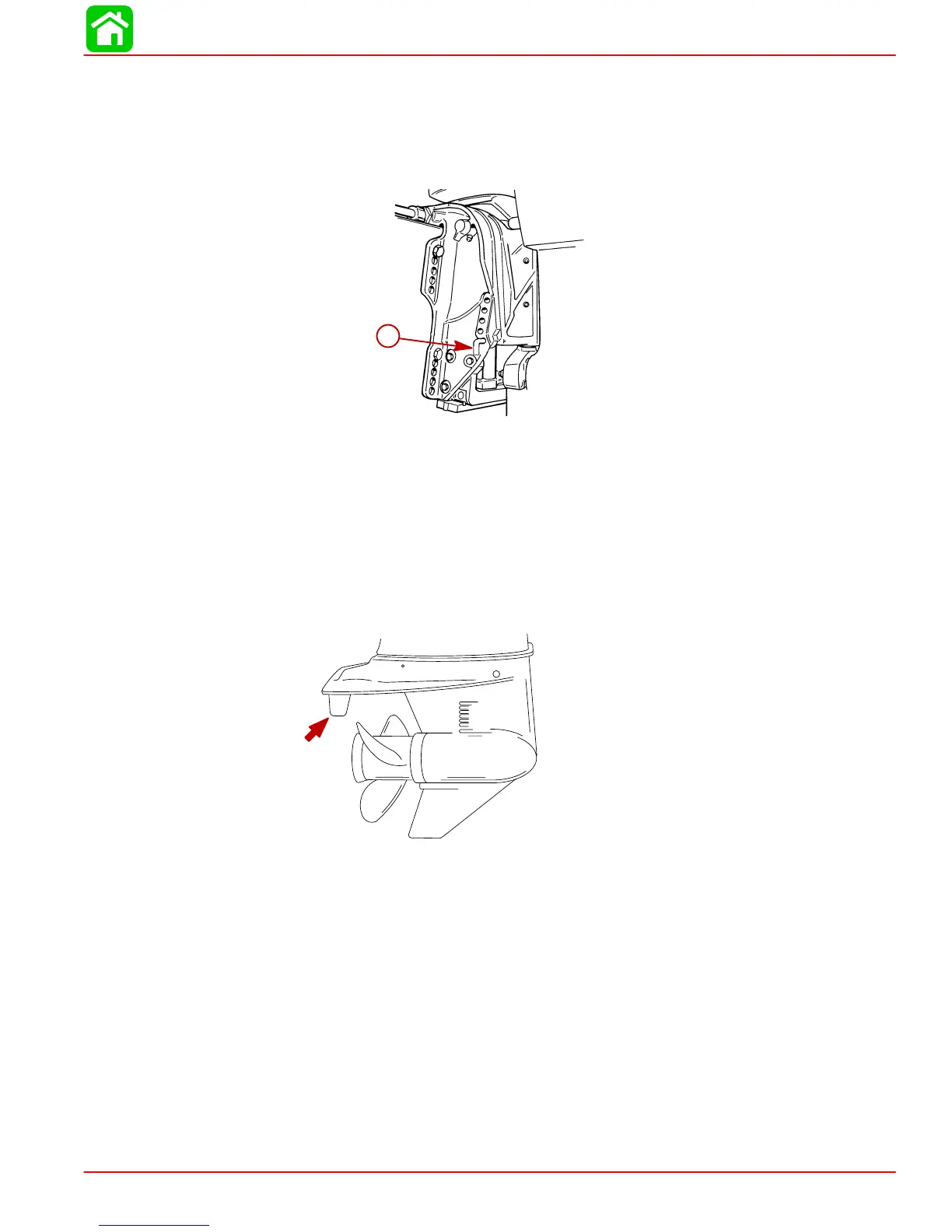

a
a
a-Tilt Pin
Trim Tab Adjustment
The trim tab can be adjusted within limits to help compensate for steering torque.
Adjust trim tab as follows:
1. If boat tends to pull to the right, move the rear edge of the trim tab to the right.
2. If boat tends to pull to the left, move the rear edge of the trim tab to the left.
NOTE: Trim tab adjustment will have little effect reducing steering torque if the anti-ventila-
tion plate is raised 2 inches (50mm) or more above the boat bottom.
