MANUAL STARTER
Page 8-4 90-857046R1 NOVEMBER 2001
Interlock Cable Adjustment
IMPORTANT: Lubricate core wire of interlock cable with light oil prior to making
adjustments.
1. While rotating the propeller shaft, place the gear shift lever into REVERSE.
2. Return the gear shift lever to NEUTRAL without going past neutral detent.
3. Place end of interlock cable over pin of cam lever and secure with retaining clip.
4. Secure interlock cable to starter housing using adjusting screw. Do not tighten screw at
this time.
5. Adjust interlock cable to align raised mark of cam lever with pointer of rewind housing.
a
b
c
d
e

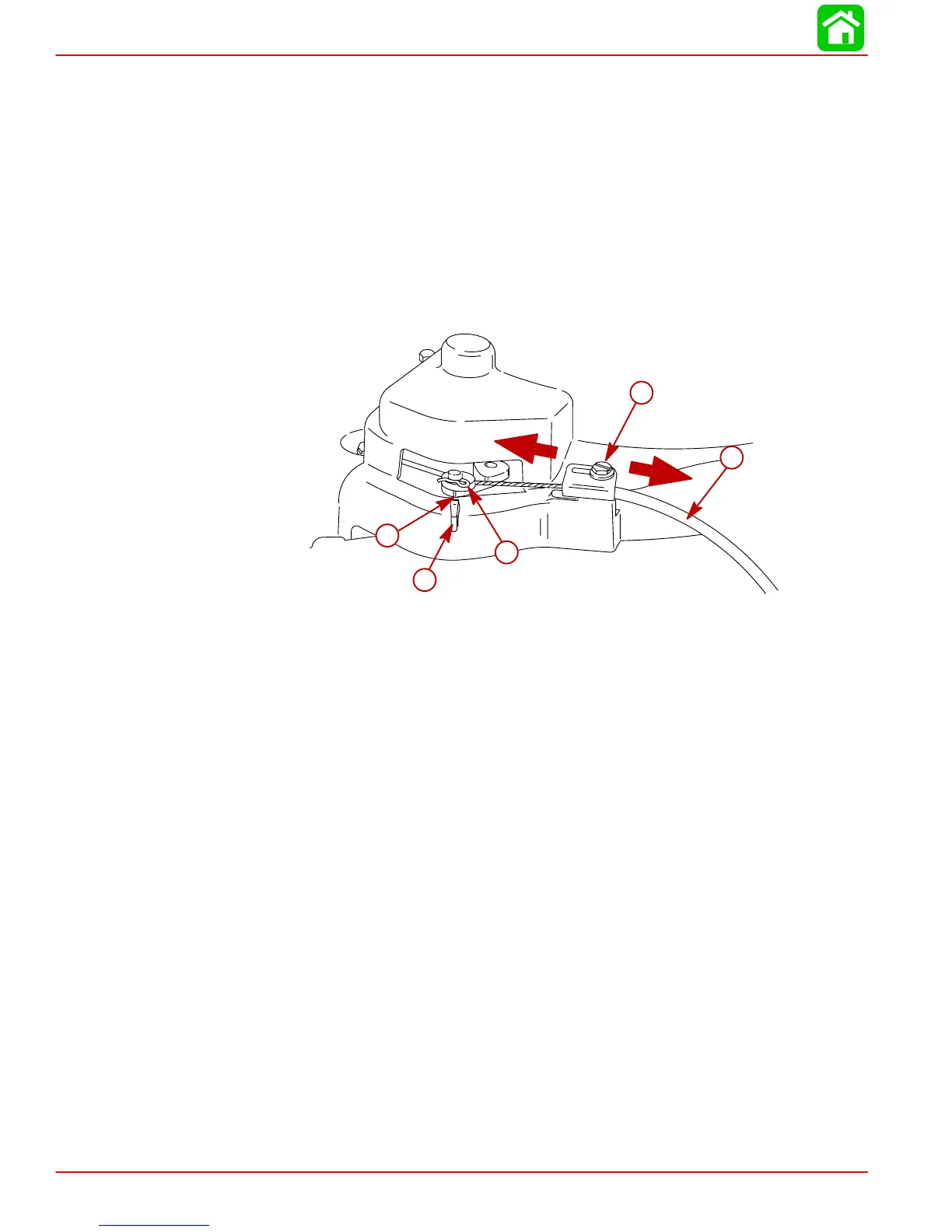

a-Interlock Cable
b-Retaining Clip
c-Adjustment Screw
d-Raised Mark of Cam Lever
e-Pointer of Rewind Housing
6. Tighten cable adjustment screw and check adjustment after 4 or 5 shift cycles.
