POWER TRIM
Page 5B-44 90-857046R1 NOVEMBER 2001

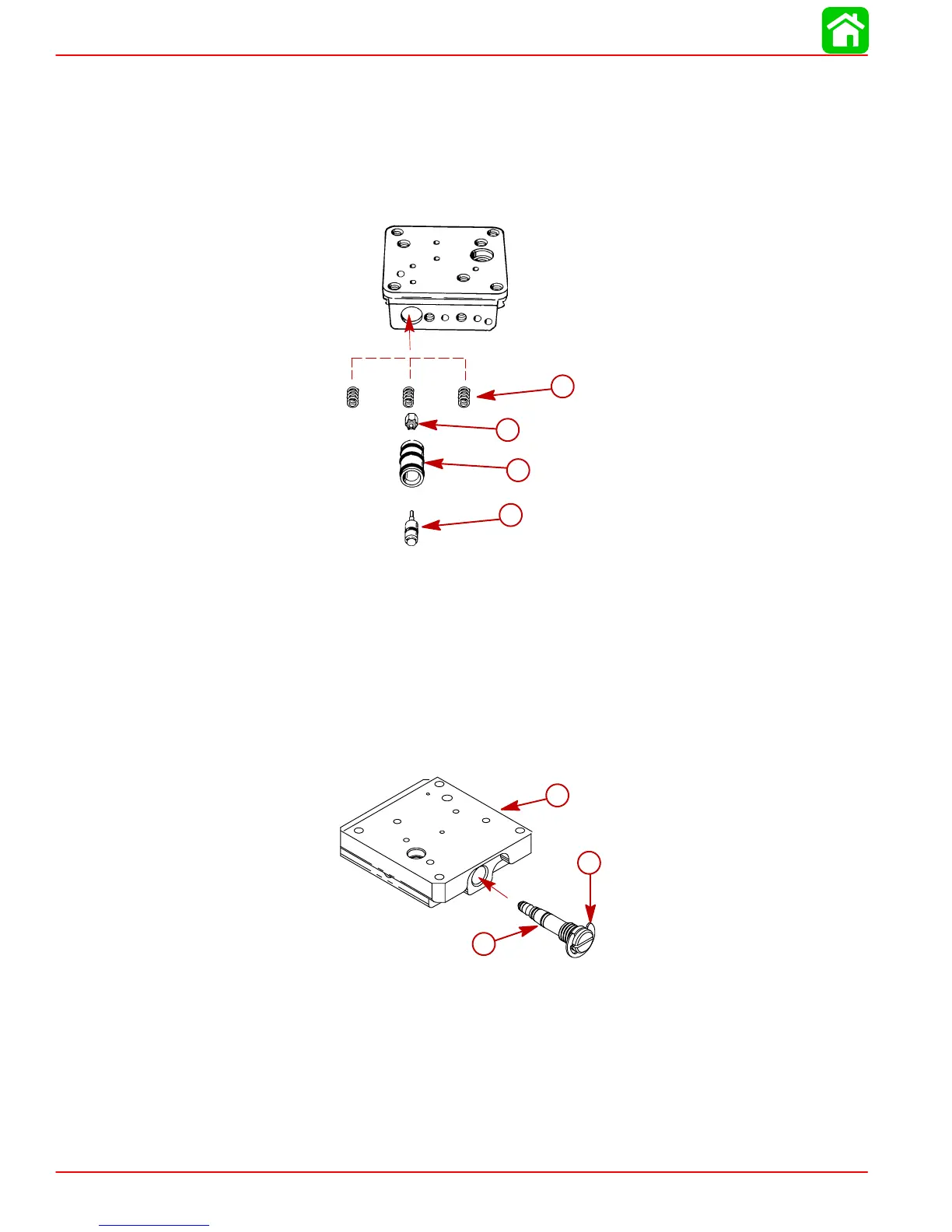

Trim Limit Assembly Installation
1. Lubricate all O-rings. Install spring, poppet, spool housing and trim limit spool into man-
ifold.
NOTE: There are three different size springs used in this manifold. The heavy spring is used
on 75-125 hp outboards. The medium spring is used on 40-60 hp Bigfoot outboards. The
light spring is used on 30-60 hp outboards.
51008
or
a
b
c
d
or
a-Spring
b-Poppet
c-Spool Housing
d-Trim Limit Spool
Manual Release Valve Installation
1. Install “E” clip (if removed) and lubricate o-rings to manual release valve.
2. Install manual release valve assembly into manifold.
a
b
c
a-Manifold
b-Manual Release Valve
c-E Clip
To Next Page
