MANUAL TILT ASSIST
Page 5C-32 90-857046R1 NOVEMBER 2001

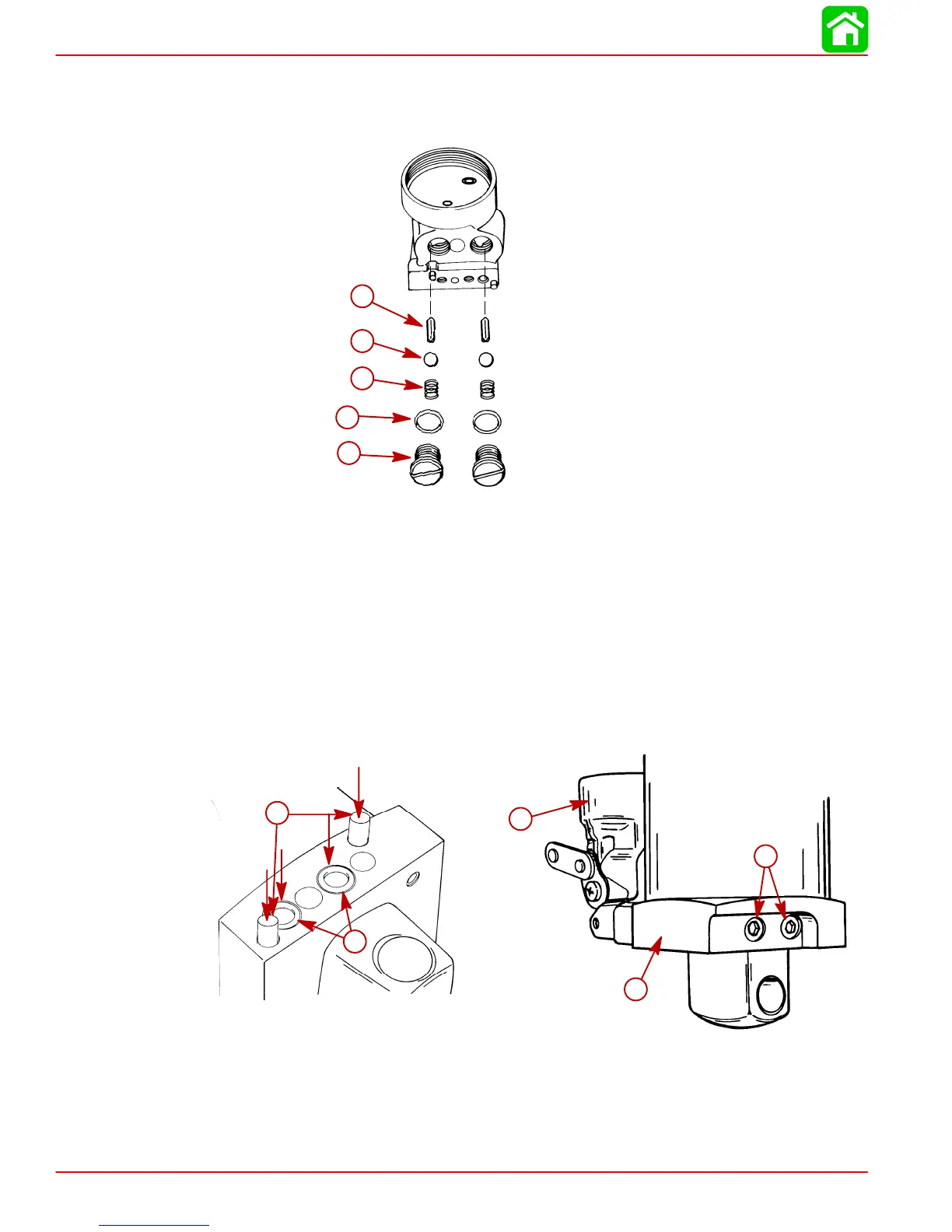

VALVE PLUG REASSEMBLY
1. Install plunger, steel ball, spring, lubricated o-ring and screw plug. Torque screw plugs
to 75 lb-in. (8.5 Nm).
51142
a
b
c
d
e
a-Plunger (2)
b-Steel Ball (2)
c-Spring (2)
d-O-ring (2)
e-Screw Plug (2) Torque to 75 lb-in. (8.5 Nm)
Valve Block Installation
1. Install lubricated O-rings and dowel pins.
2. Install valve block to shock rod cylinder. Insert screws to shock rod cylinder and torque
to 100 lb-in. (11 Nm).
51146
51148
1
a
b
c
d
e
a-O-ring (2)
b-Dowel Pin (2)
c-Valve Block
d-Screw (2) Torque to 100 lb-in. (11 Nm)
e-Shock Rod Cylinder
