BIGFOOT GEAR HOUSING
90-857046R1 NOVEMBER 2001 Page 6B-39

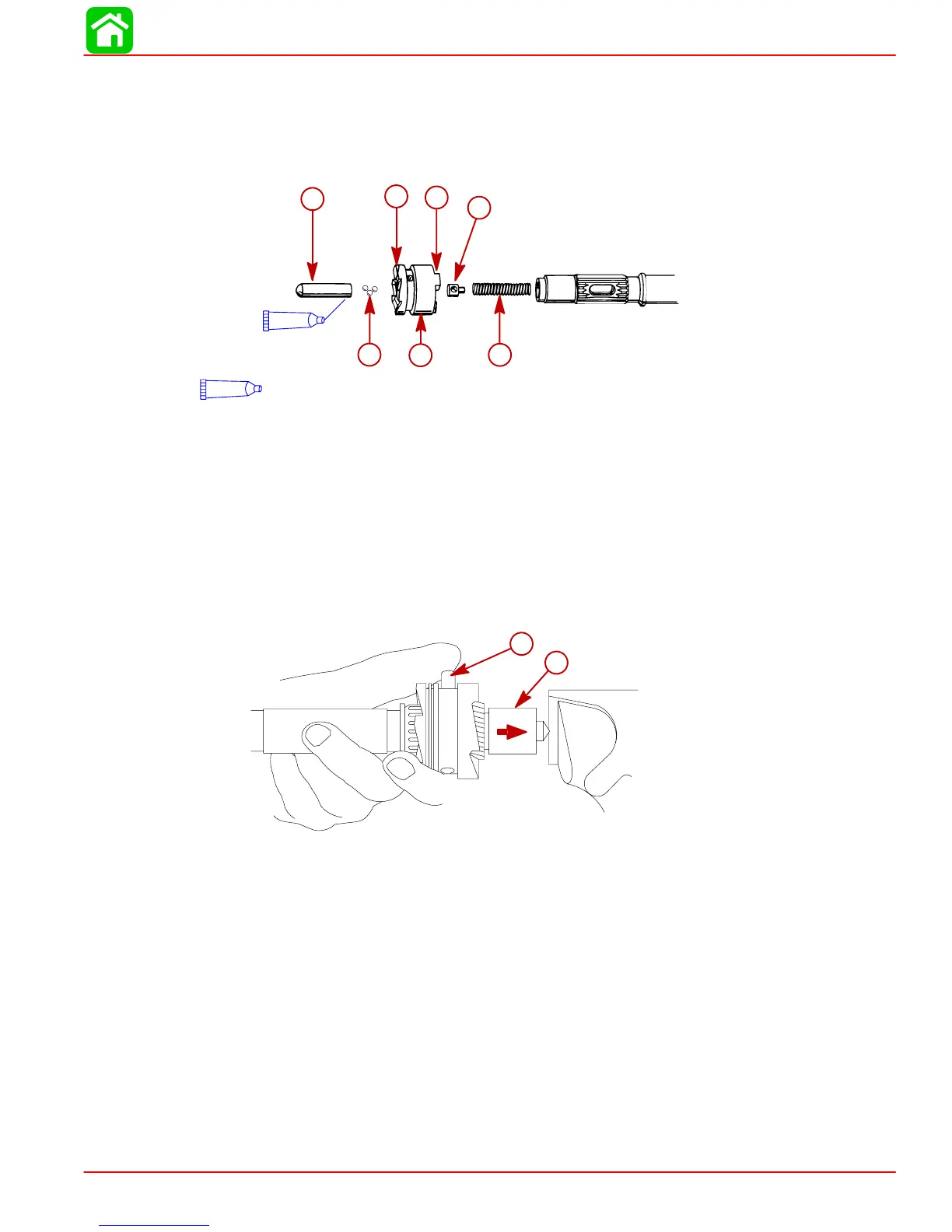

Propeller Shaft Reassembly
1. Install components into propeller shaft in sequence shown.
NOTE: When installing the clutch make sure the ratcheting clutch teeth (angled) are toward
forward gear, and non-ratcheting (square on both sides) are toward reverse gear.
51265
a
b
c
d
e
g
f
95
2-4-C Marine Lubricant with Teflon
95
Assembly Sequence
a- Spring
b- Guide Block
c- Clutch
d- 3 Metal Balls
e- Cam Follower
f- Forward Clutch Teeth
g- Reverse Clutch Teeth
2. Align the hole in the clutch with the hole in the guide block, install cross pin.
51800
a
b
a- Apply Pressure in This Direction
b- Cross Pin
To Next Page
