BIGFOOT GEAR HOUSING
Page 6B-38 90-857046R1 NOVEMBER 2001

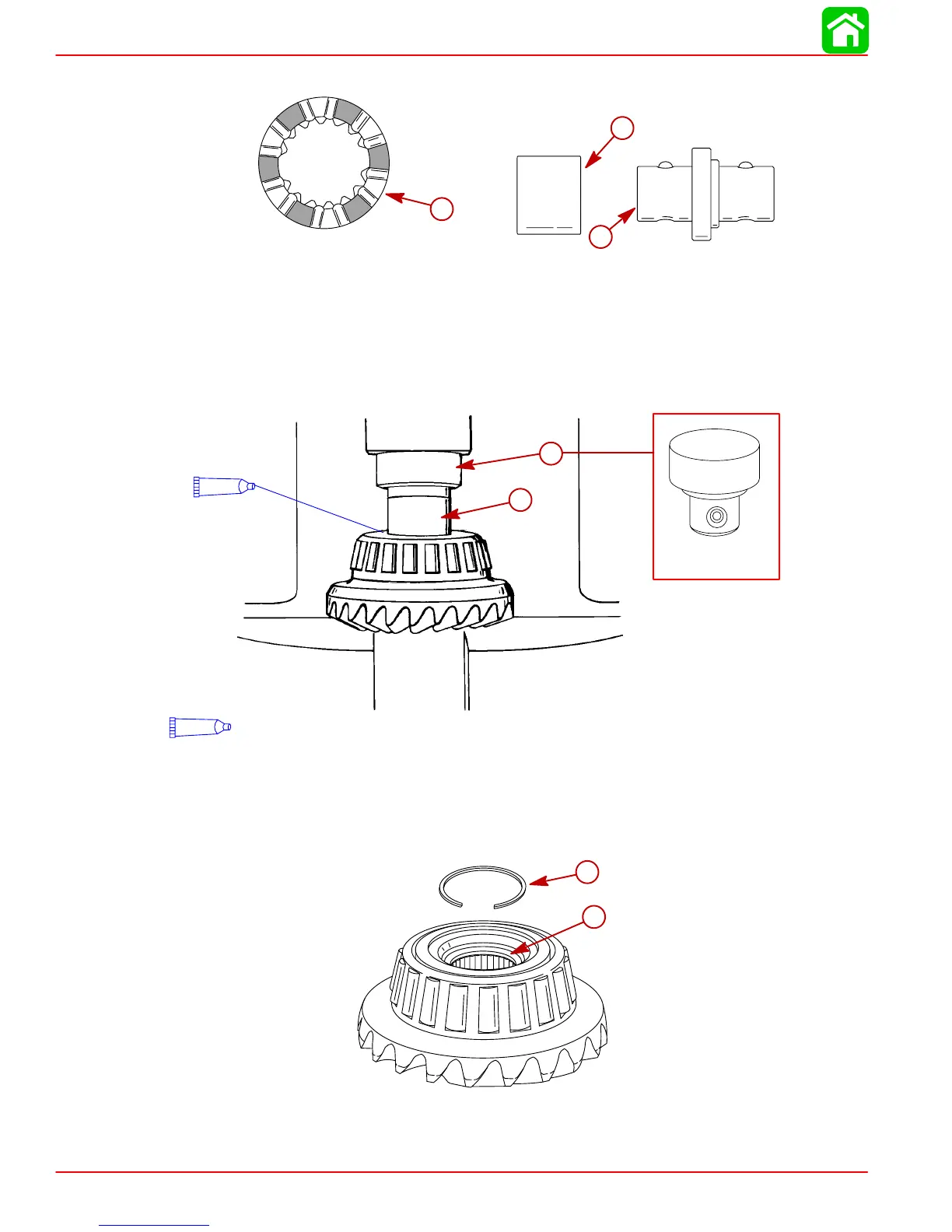

6 Jaw Reverse Clutch
56784
c
a
b
a- Stamped “6”
b- Numbered end of Needle Bearing
c- 6 Jaw Reverse Clutch
3. Apply Premium Gear Lubricant to I.D. of forward gear, and O.D. of needle bearing. Press
needle bearing into forward gear (using forward gear bearing installer tool) until tool bot-
toms out on gear.
a
b
Premium Gear Lubricant
87
87
91-877321A1
a- Forward Gear Bearing Installer (91-877321A1)
b- Needle Bearing, Numbered Side Toward Installer Tool
4. Install retaining ring into groove of forward gear by starting at one end of retaining ring
and working it around until seated in groove.
57905
a
b
a- Retaining Ring
b- Groove in Forward Gear
