MANUAL TILT ASSIST
Page 5C-12 90-857046R1 NOVEMBER 2001

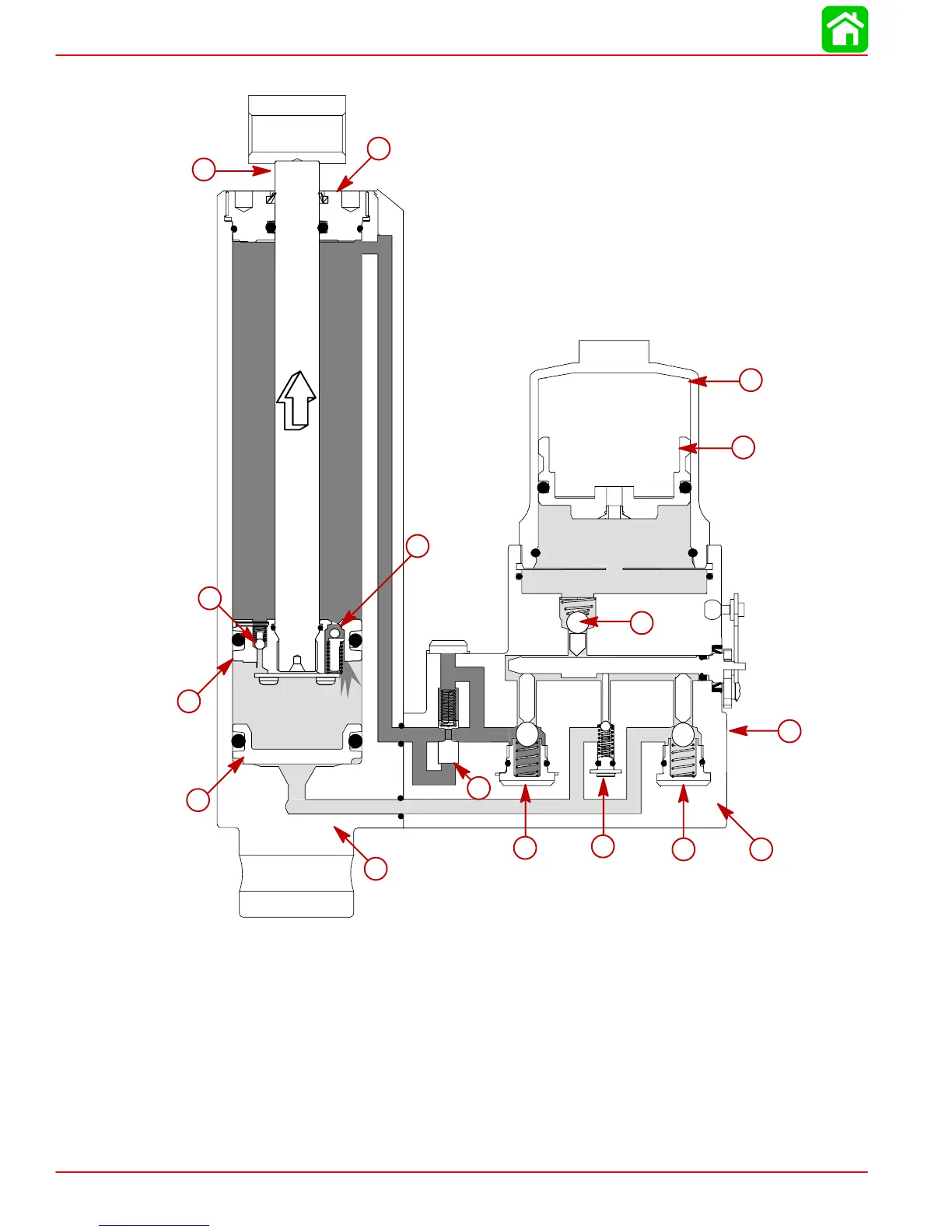

Shock Function (Valve Closed)
Accumulator
Gas Pressure
400 PSI
a
b
o
n
m
p
l
k
j
i
h
g
f
d
c
e
a-Shock Rod
b-End Cap
c-Accumulator
d-Accumulator Piston
e-Accumulator Check Valve
f-Camshaft Lever
g-Manifold
h-Down Circuit Fast Transfer Valve
i-Down Circuit Slow Transfer Valve
j-Up Circuit Fast Transfer Valve
k-Surge Valve
l-Cylinder
m-Memory Piston
n-Shock Piston
o-Shock Return Valve
p-Impact Relief Valve
To Next Page
