MANUAL STARTER
Page 8-8 90-857046R1 NOVEMBER 2001

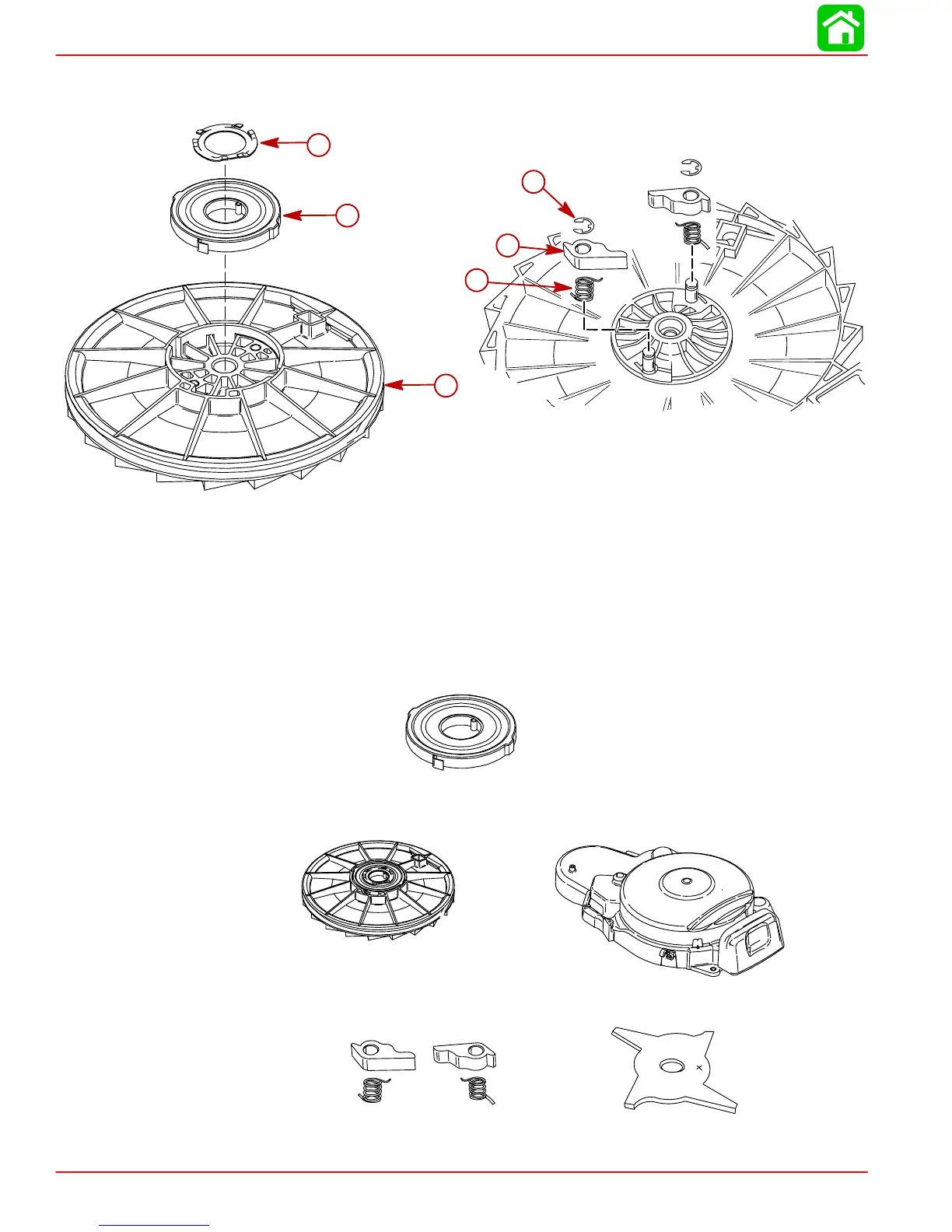

8. Remove springwasher and spring assembly from starter sheave.
9. Remove retaining rings, pawls, and springs from starter sheave.
a
b
c
d
e
f
a-Springwasher
b-Spring Assembly
c-Starter Sheave
d-Retaining Ring (2)
e-Pawl (2)
f-Spring (2)
Cleaning and Inspection
1. Clean components in solvent and dry with compressed air.
2. Inspect rewind spring for kinks, burrs, corrosion of breakage. Replace as necessary.
3. Inspect starter sheave, rope guide and recoil housing for nicks, grooves, cracks, wear
or distortion, especially area of rope travel. Replace as necessary.
4. Inspect cam, pawls and springs for wear or damage. Replace as necessary.
