MANUAL STARTER
90-857046R1 NOVEMBER 2001 Page 8-7

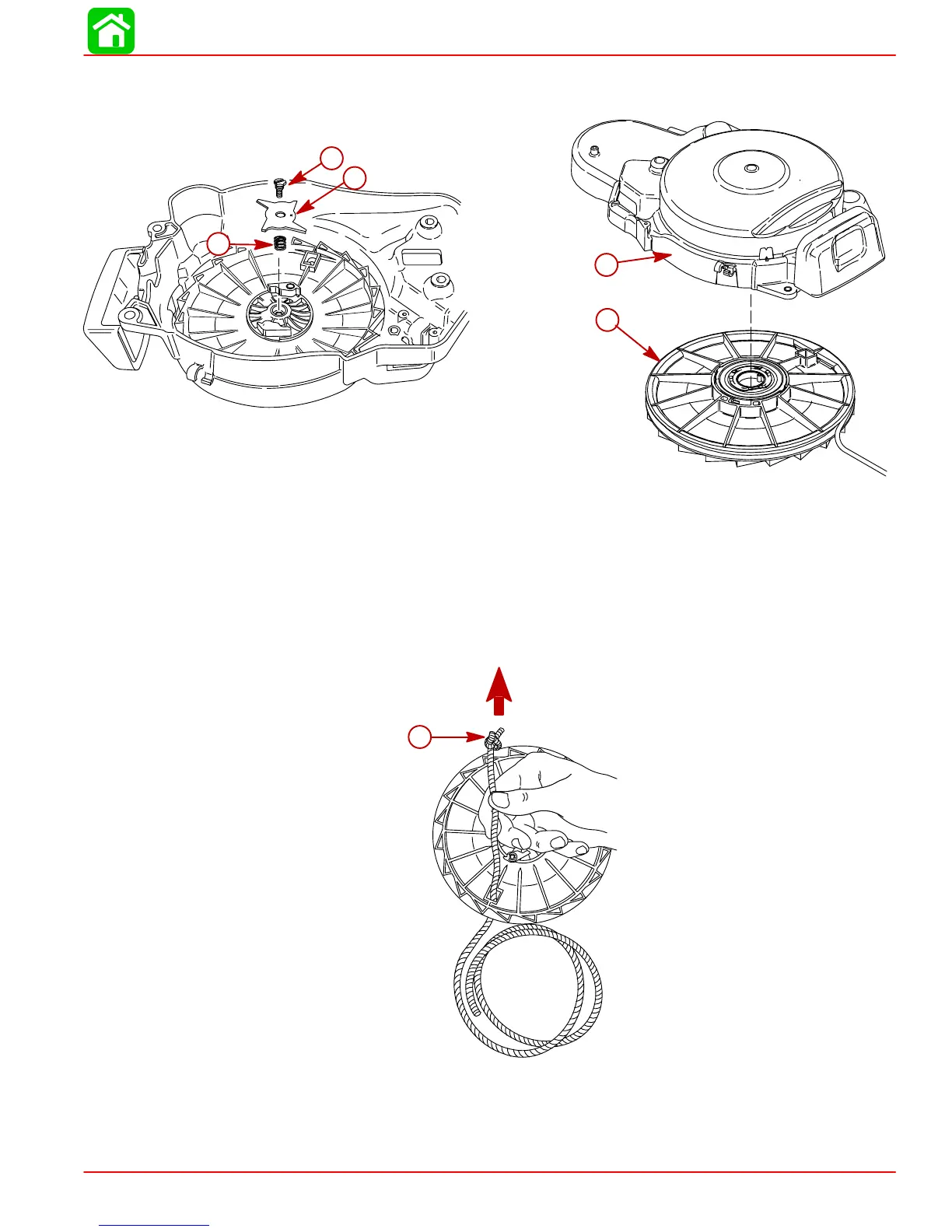

5. Remove cam and spring.
6. Remove starter sheave assembly from recoil housing.
d
a
b
c
e
a-Screw
b-Cam
c-Spring
d-Starter Sheave Assembly
e-Recoil Housing
7. Remove rope from starter sheave assembly.
NOTE: If re-using rope leave end knot tied.
a
a-Knot
