CYLINDER HEAD
90-857046R1 NOVEMBER 2001 Page 4A-43

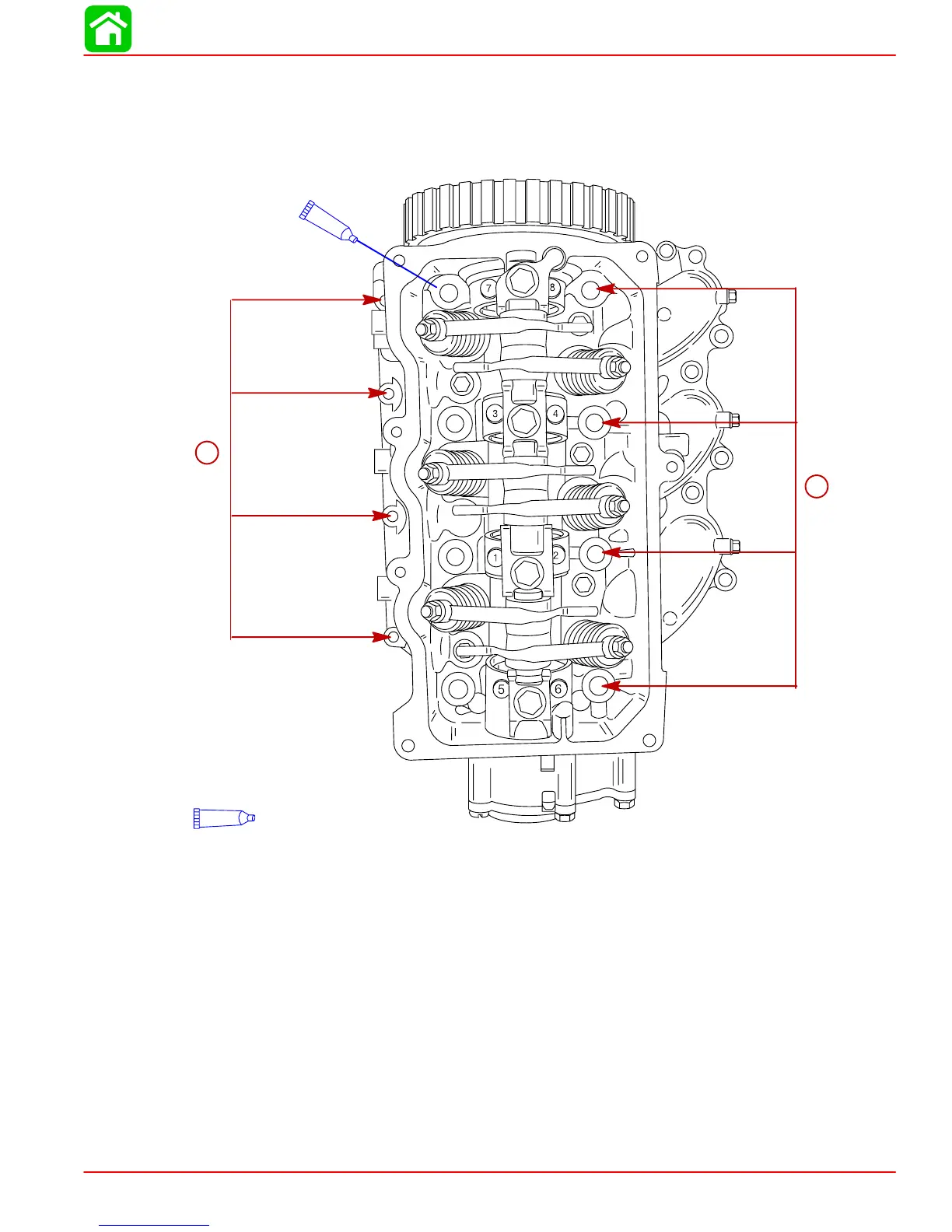

Cylinder Head Installation
1. Apply engine oil to the threads of each screw and seat surface.
2. Fasten cylinder head with screws shown. Do not tighten.
a
110
4-Stroke Outboard Oil
110
b
a-Screw (8) M9 x 95
b-Flange Screw (4) M6 x 25
