CYLINDER BLOCK/CRANKCASE
Page 4B-1390-857046R1 NOVEMBER 2001

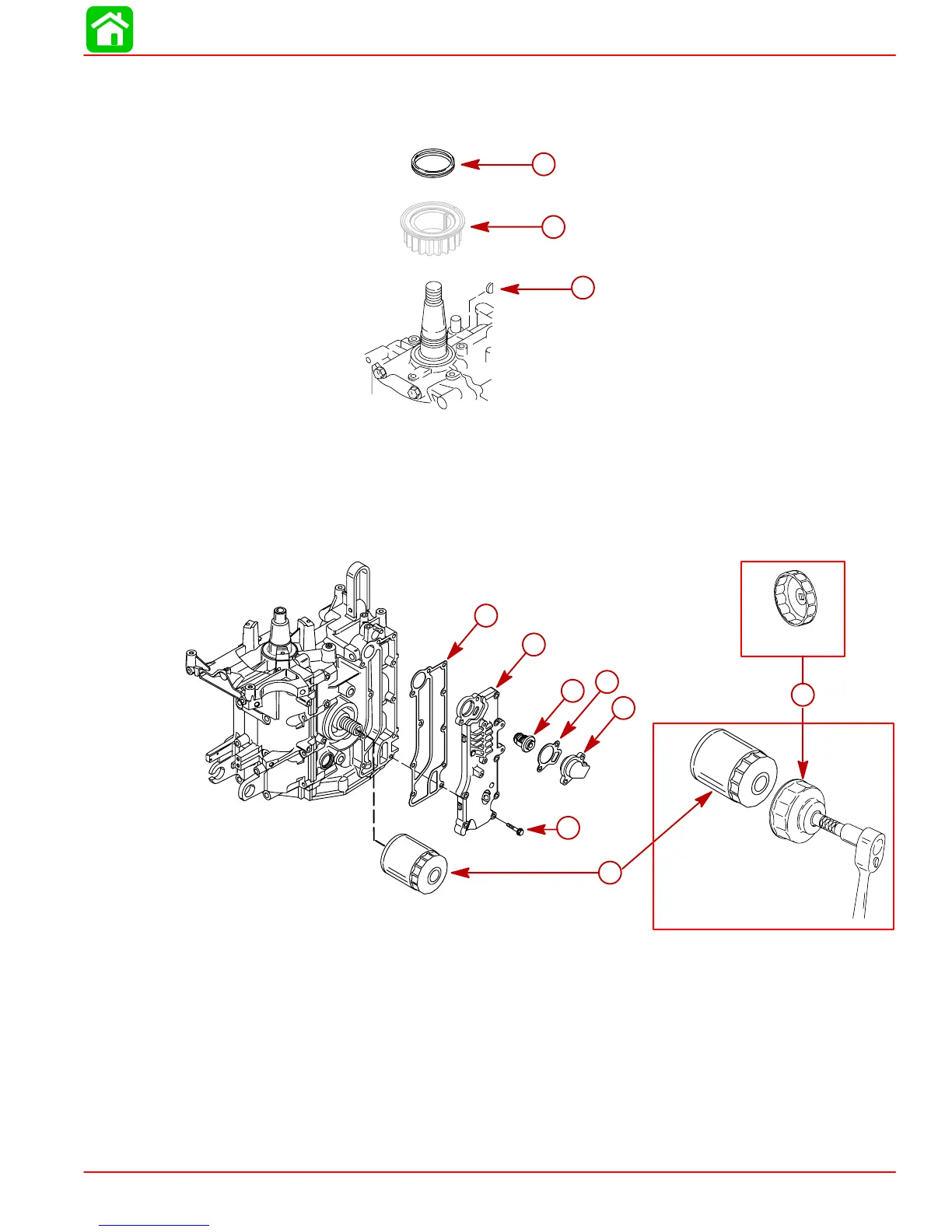

Cylinder Block Disassembly
1. Remove the drive gear components.
b
a
c
a-Load Ring (Discard)
b-Drive Gear
c-Woodruff Key
2. Remove exhaust cover and gasket.
3. Remove oil filter.
a
b
c
d
e
f
91-802653
h
g
a-Screw and Washer (10) M6 x 35
b-Thermostat Cover
c-Gasket (Discard)
d-Thermostat
e-Exhaust Cover
f-Gasket
g-Oil Filter
h-Oil Filter Wrench (91-802653)
To Next Page
