Mercury 40 FourStroke User Manual

MANUAL TILT ASSIST
90-857046R1 NOVEMBER 2001 Page 5C-21

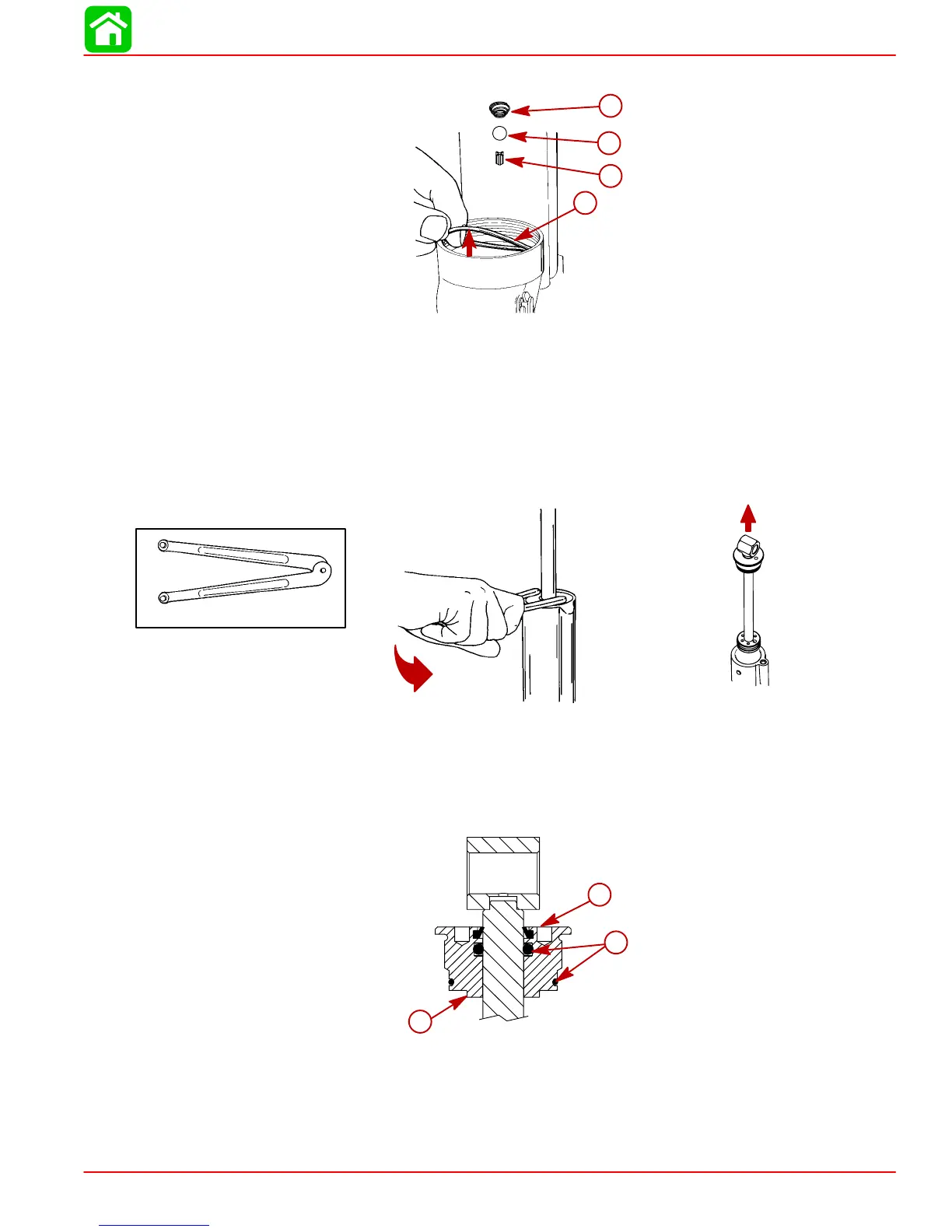

5. Once accumulator is removed, remove o-ring, conical spring, steel ball and plunger.
51145
d
c
b
a
a-Conical Spring
b-Steel Ball
c-Plunger
d-O-ring
Shock Rod Removal
1. Unscrew cylinder end cap assembly using spanner wrench [1/4 in. x 5/16 in. long pegs].
2. Remove shock rod assembly from cylinder.
51145
91-74951
Shock Rod Disassembly
NOTE: The only serviceable items on the shock rod assembly are the O-rings and wiper
ring. If shock rod requires any other repair, replace shock rod assembly.
b
c
a
a-End Cap
b-O-ring (2)
c-Wiper Ring
