MANUAL TILT ASSIST
Page 5C-22 90-857046R1 NOVEMBER 2001

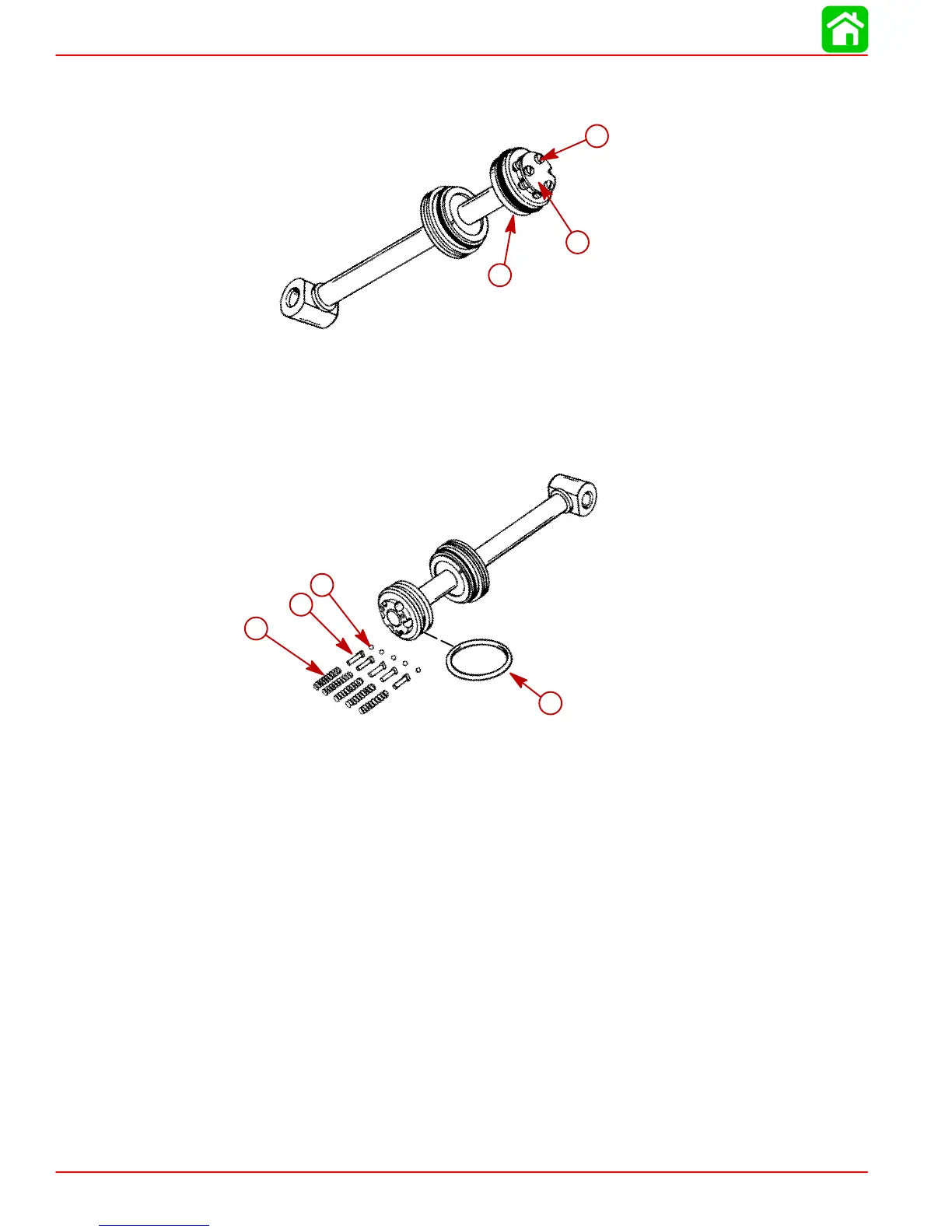

1. Place shock rod assembly on clean work surface.
2. Remove three (3) screws and remove plate from shock rod piston.
51143
a
b
c
a-Screw (3)
b-Plate
c-Shock Rod Piston
3. Remove check ball components from shock rod piston.
4. Remove o-ring.
51147
d
c
b
a
a-Spring (5)
b-Seat (5)
c-Ball (5)
d-O-ring
