MANUAL TILT ASSIST
90-857046R1 NOVEMBER 2001 Page 5C-23
CAUTION
When removing shock piston, spanner wrench must have 1/4 in. x 5/16 in. long pegs
to avoid damage to shock piston.

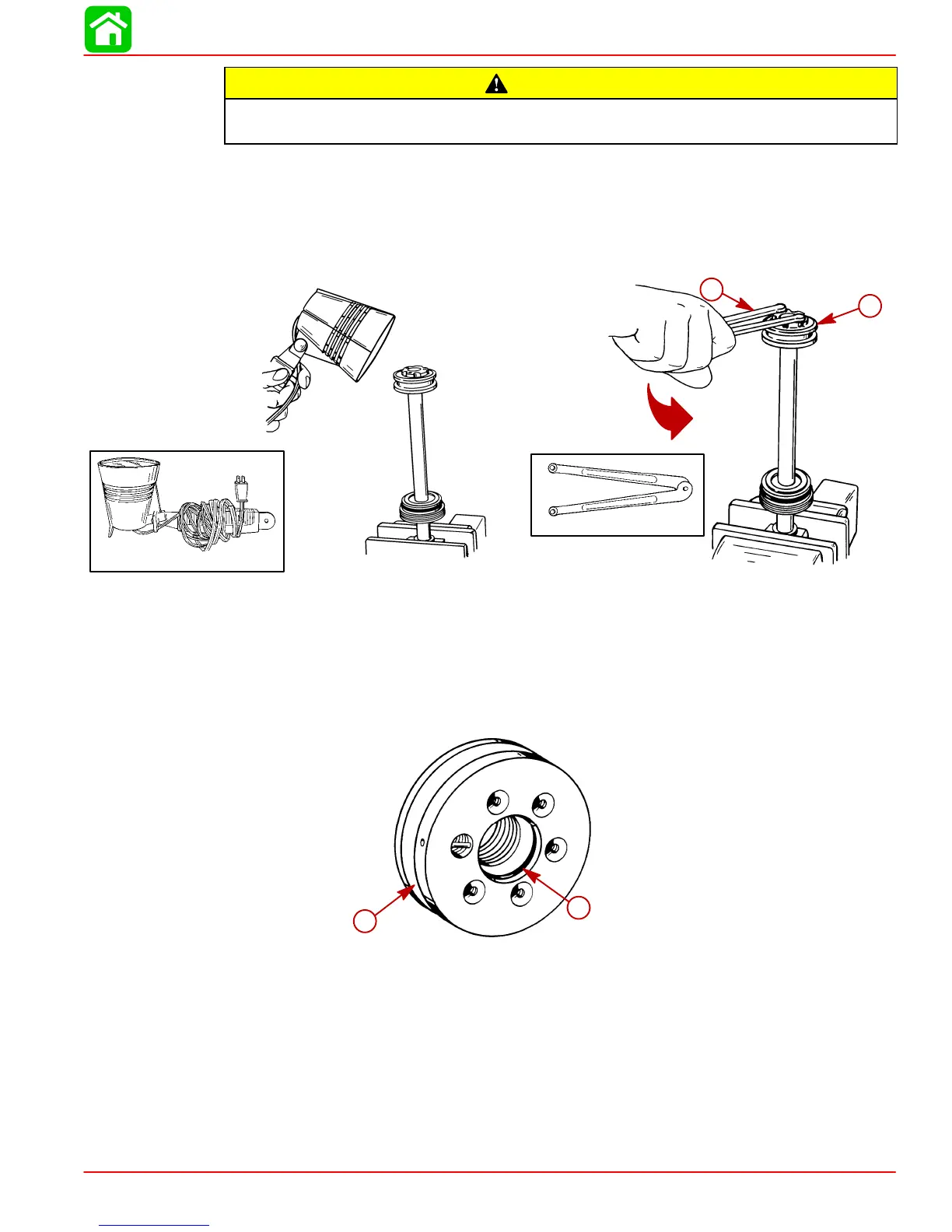

5. Place shock rod into soft jawed vise and apply heat to loosen piston using torch lamp
(P/N 91-63209).
6. Loosen shock rod piston using spanner wrench [1/4 in. x 5/16 in. (6.4mm x 8mm) long
pegs].
7. Allow shock rod piston to cool. Remove from shock rod.
b
a
91-74951
91-63209
a-Spanner Wrench
b-Shock Rod Piston
8. Inspect check valve for debris; clean debris from check valve if found. If debris cannot
be cleaned from check valve, replace shock piston as an assembly.
9. Clean shock and components with compressed air.
10. Remove inner O-ring.
51199
b
a
a-Shock Piston
b-O-ring
