BIGFOOT GEAR HOUSING
90-857046R1 NOVEMBER 2001 Page 6B-41

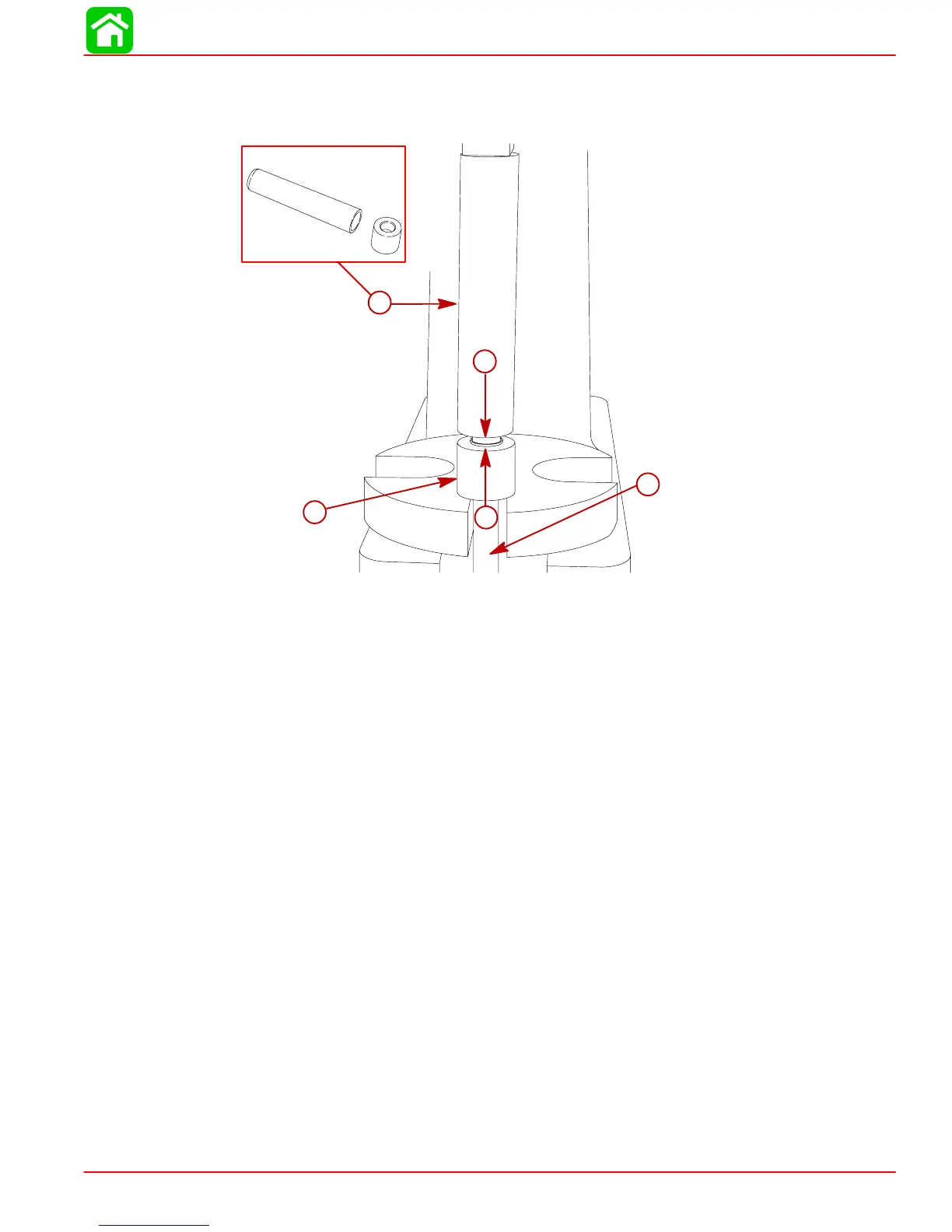

4. Press sleeve onto driveshaft using Wear Sleeve Installation Tool (91-14310A1). Continue
pressing until the upper and lower part of the tool make surface to surface contact.
5. Remove excess Loctite from assembled shaft.
19166
a
b
b
91-14310A1
c
d
a- Drive Shaft
b- Wear Sleeve Installation Tool (91-14310A1)
c- Upper part of tool (Surface C)
d- Lower part of tool (Surface D)
