POWER TRIM
90-857046R1 NOVEMBER 2001 Page 5B-47
Pressure Operated Assembly Installation
IMPORTANT: Inspect poppet assembly for debris in the area shown. If debris is found
on poppet, replace poppet.
1. Lubricate o-rings.
2. Install spool, seat (with o-ring), check valve/poppet, spring and plug (with o-ring) into
pump. Repeat for other side. Tighten plugs to specified torque.
d
c
d
e
c
a
b
e
f
g
f

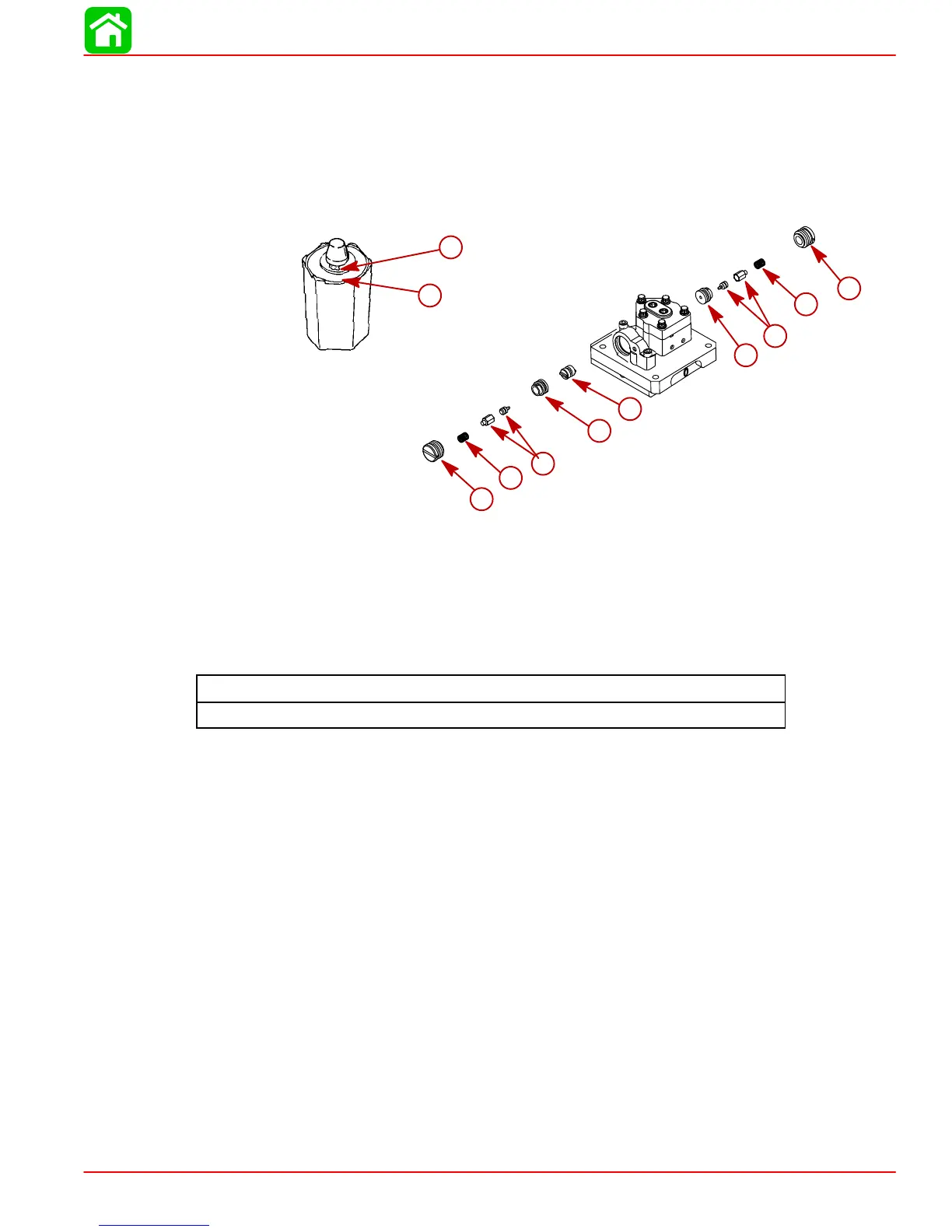

a-Debris Under Valve Tip
b-Rubber Seat
c-Plug (2)
d-Spring (2)
e-Check Valve/Poppet (2)
f-Seat (2)
g-Spool
Plug Torque
120 lb-in (13.5 Nm)
