MANUAL TILT ASSIST
Page 5C-42 90-857046R1 NOVEMBER 2001

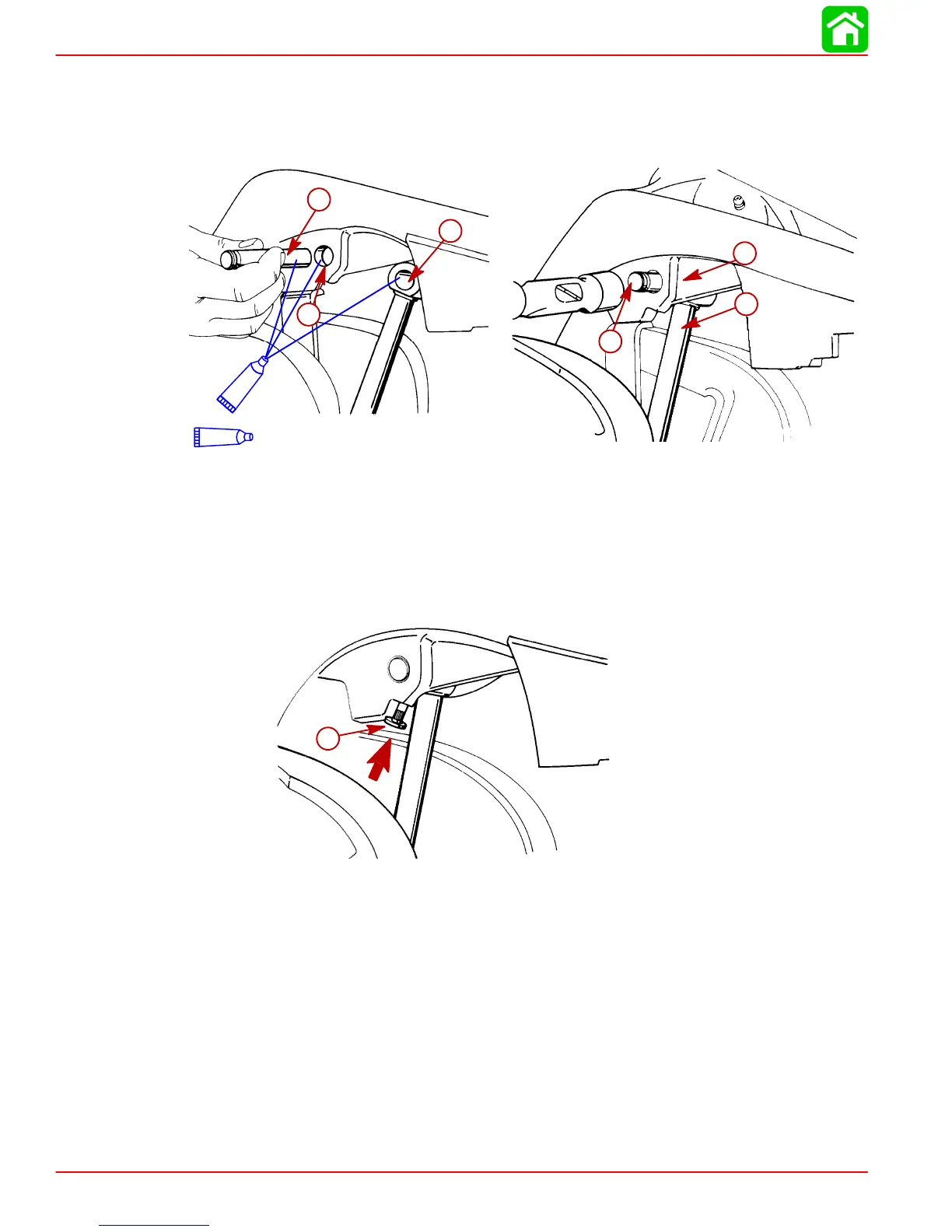

6. Apply 2-4-C Marine Lubricant with Teflon to surface of upper pivot pin, pivot pin hole and
shock rod hole.
7. Using a mallet, drive upper pivot pin into swivel bracket and through shock rod until pivot
pin is flush with swivel bracket.
51148
f
e
d
51148
95
2-4-C Marine Lubricant with Teflon
95
b
c
a
a-Pivot Pin
b-Pivot Pin Bore
c-Shock Rod Bore
d-Pivot Pin
e-Swivel Bracket
f-Shock Rod
8. Drive upper trilobe pin into its hole until seated.
51147
a
a-Trilobe Pin
