TILLER HANDLE
90-857046R1 NOVEMBER 2001 Page 7B-7

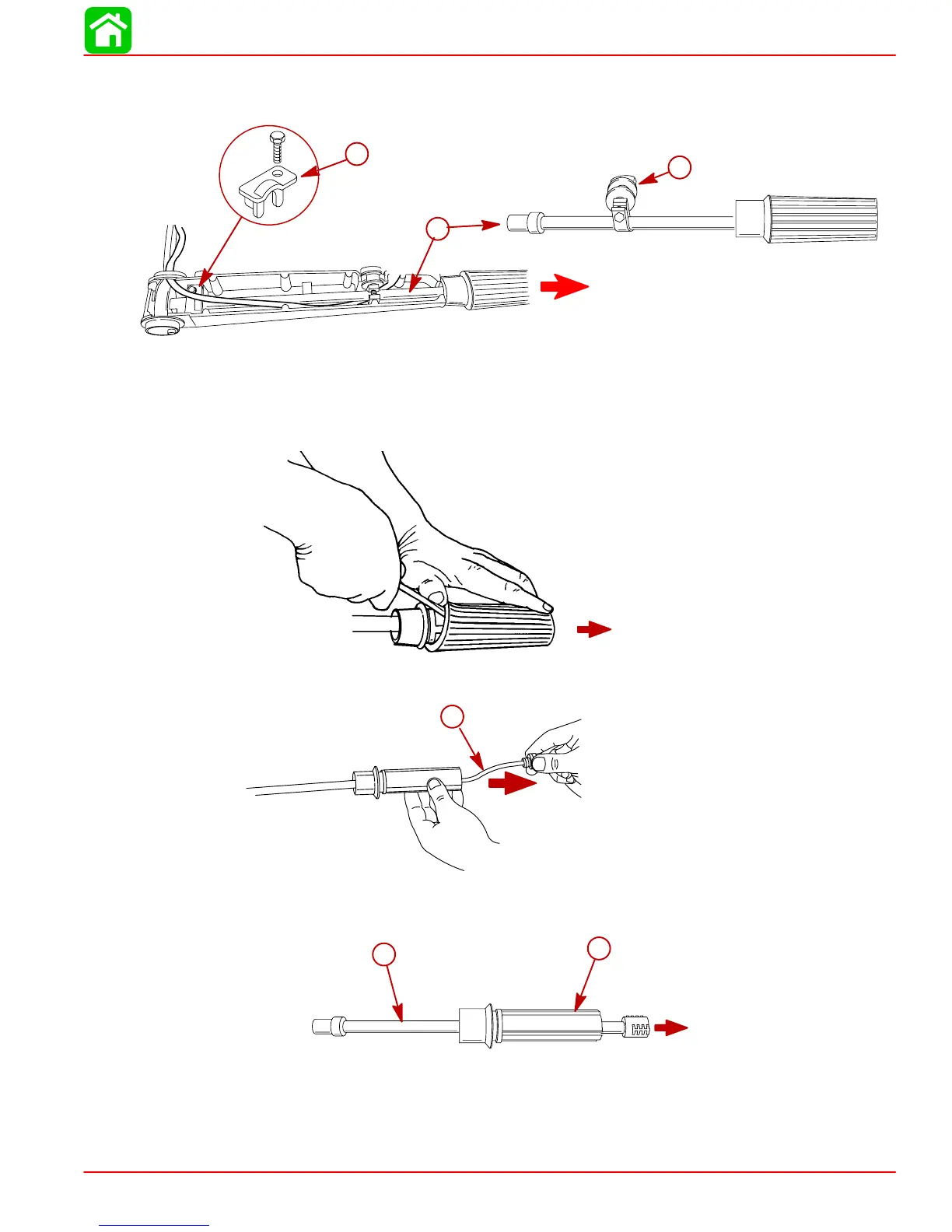

4. Remove retainer and slide out the tiller tube assembly.
5. Remove the throttle friction knob assembly.
a
b
c
a-Retainer
b-Throttle Friction Knob Assembly
c-Tiller Tube Assembly
6. Use a flat tip screwdriver to pry/push the rubber grip off the handle.
7. Pull out the stop switch harness.
a
a-Stop Switch Harness
8. Push the tiller tube out of the handle.
b
c
b-Tiller Tube
c-Handle
