MANUAL TILT ASSIST
Page 5C-36 90-857046R1 NOVEMBER 2001
8. Open and close cam lever, watching for bubbles coming from accumulator check ball
hole. When bubbles stop, fill accumulator opening to top with fluid. Grease threads on
accumulator and opening with 2-4-C Marine Lubricant with Teflon. Start accumulator in
threads and open cam lever (Down Position). Torque accumulator to 35 lb–ft (47 Nm).

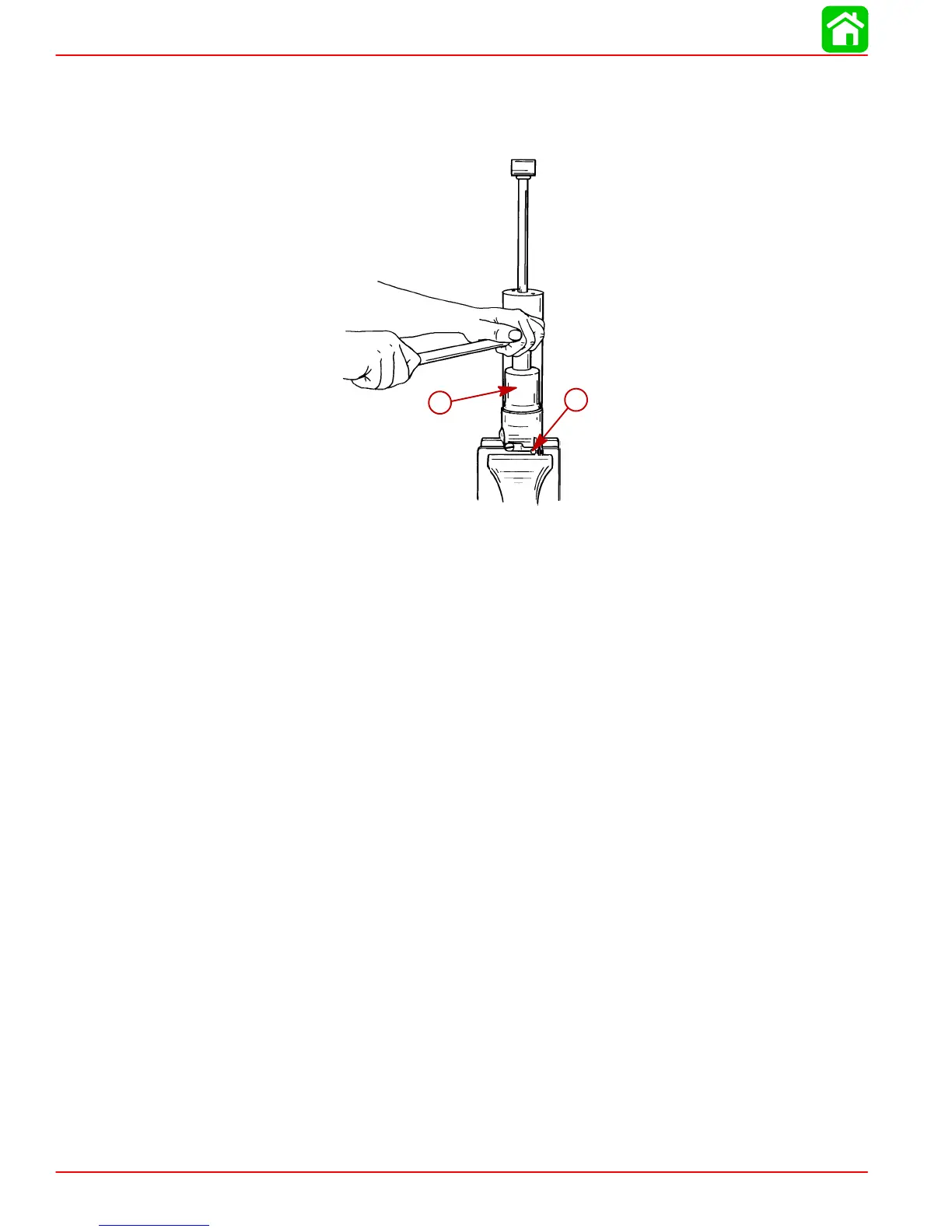

51143
b
a
a-Accumulator
b-Cam Lever (Down Position)
NOTE: If filling procedure is done correctly, it should be hard to turn cylinder rod assembly
by hand.
