WIRING DIAGRAMS
90-857046R1 NOVEMBER 2001 Page 2D-17
CLEANING GAUGES
Clean gauge by washing with fresh water to remove sand and salt deposits. Wipe off with
a soft cloth moistened with water. The gauge may be scored or damaged if wiped with abra-
sive material (sand, saline or detergent compounds, etc.) or washed with solvents such as
trichloroethylene, turpentine, etc.
2 Function Gauge

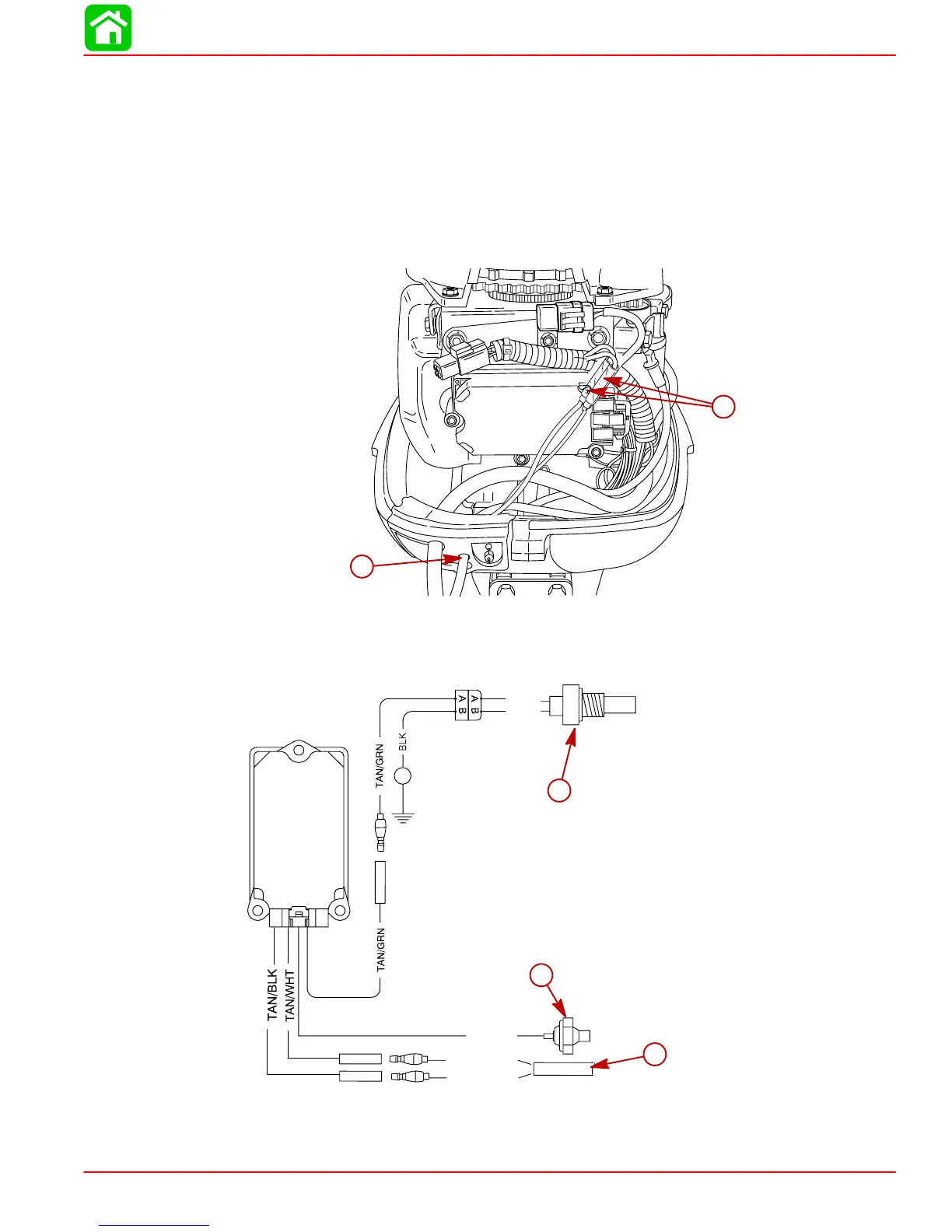

1. Route extension harness through grommet opening. Connect TAN/WHITE and TAN/
BLACK of harness to TAN/WHITE and TAN/BLACK wires on engine harness.
a
b
a-Grommet Opening
b-TAN/WHITE and TAN/BLACK WIRES ON ENGINE HARNESS
LT. BLU
TAN/WHT
TAN/BLK
c
b
a
BLK
BLK
a-Harness Extension Plugging Into Engine Harness
b-Oil Pressure Sensor
c-Engine Temperature Sensor
To Next Page
