CARBURETOR
90-857046R1 NOVEMBER 2001 Page 3B-21
DISASSEMBLY CONTINUED (ALL MODELS)
2. Remove float bowl.
3. Remove plunger, spring, and gasket.
a
b
c
d
e
f

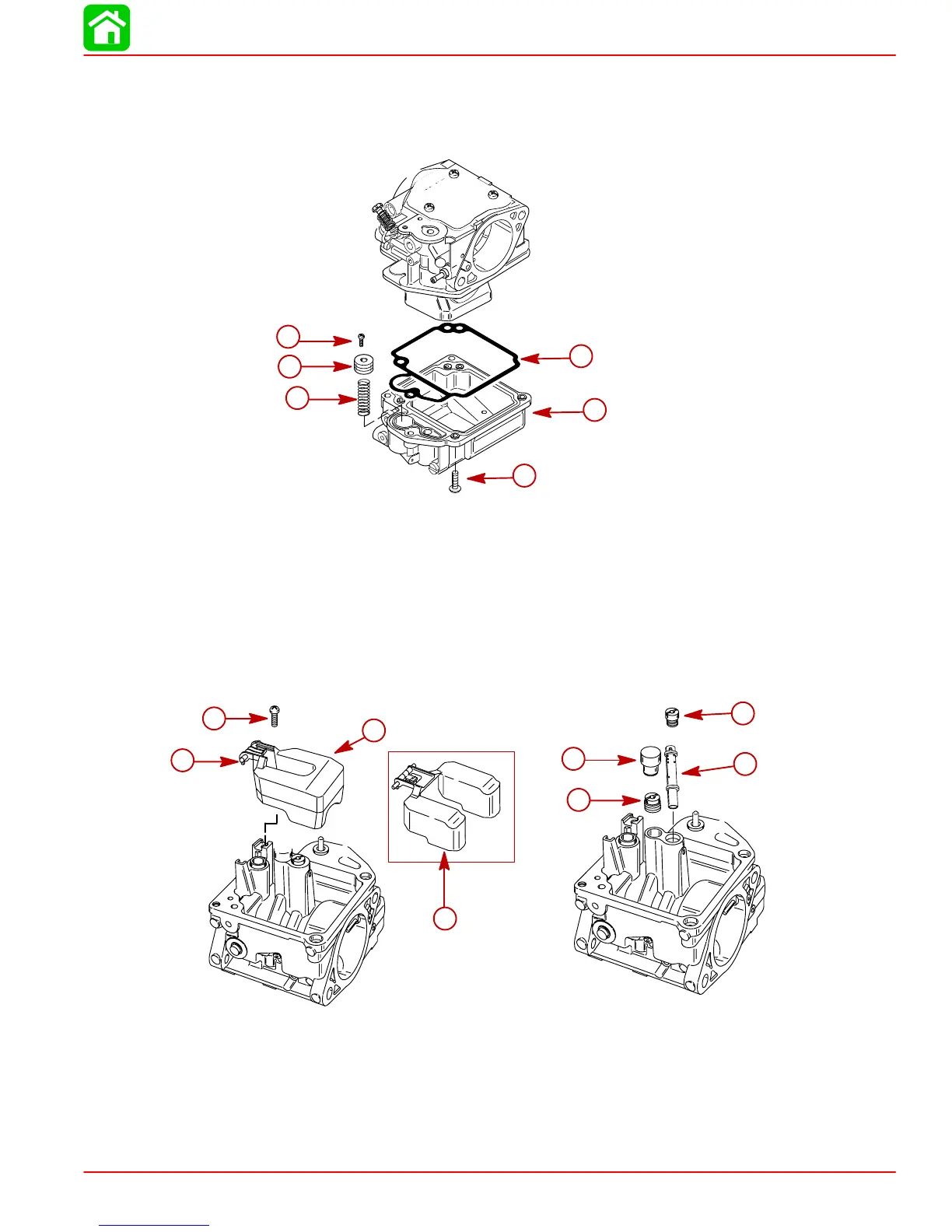

a-Screws (4)
b-Float Bowl
c-Plunger
d-Spring
e-Gasket
f-Retaining Screw
4. Remove float, plug, nozzles and jets.
NOTE: Earlier models are likely equipped with the old style float..
a
b
c
e
f
g
d
h
a-Screw
b-Float Pin
c-Old Style Float
d-New Style Float
e-Plug
f-Slow Jet
g-Main Jet
h-Main Nozzle
