CYLINDER HEAD
Page 4A-14 90-857046R1 NOVEMBER 2001
4. Disconnect the crankcase breather hose, vent hose, and fuel pump in/out hoses.
5. Disconnect fuel cooler in/out hoses (If equipped).
IMPORTANT: The hose fittings on the fuel pump can break if you try twisting or pull-
ing off the hoses. Remove fuel pump hoses by slowly prying them off using a small
screwdriver.
6. Remove coils from valve cover. Refer to section 2A - Ignition Coil Removal.
7. Remove valve cover.

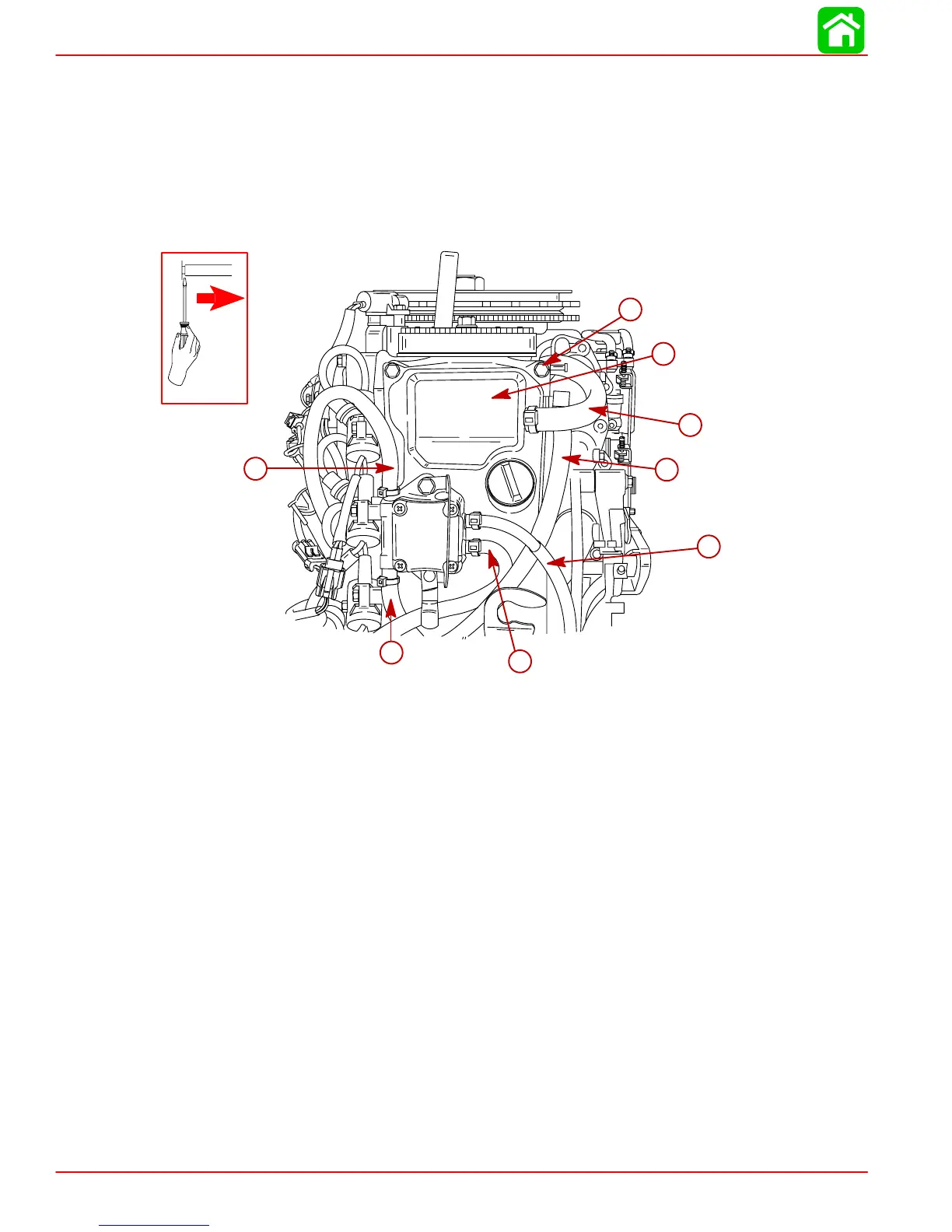

59250
c
d
f
g
h
e
b
a
a-Screw (7) M6 x 20
b-Valve Cover
c-Crankcase Breather Hose
d-Crankcase Vent Hose
e-Fuel Pump Output Hose
f-Fuel Pump Input Hose
g-Fuel Cooler OUT Hose
h-Fuel Cooler IN Hose
