CYLINDER HEAD
Page 4A-16 90-857046R1 NOVEMBER 2001
3. Reinstall the valve cover. Tighten screws to the specified torque.
4. Install coils. Refer to section 2A - Ignition Coil Installation.
5. Install fuel pump. Refer to section 3C - Fuel Pump Installation.
6. Connect fuel pump in/out hoses, fuel cooler in/out hoses, crankcase breather and vent
hose. Secure all with sta-straps.
7. Reinstall spark plugs and spark plug leads.
59250
c
d
f
g
h
e
b
a

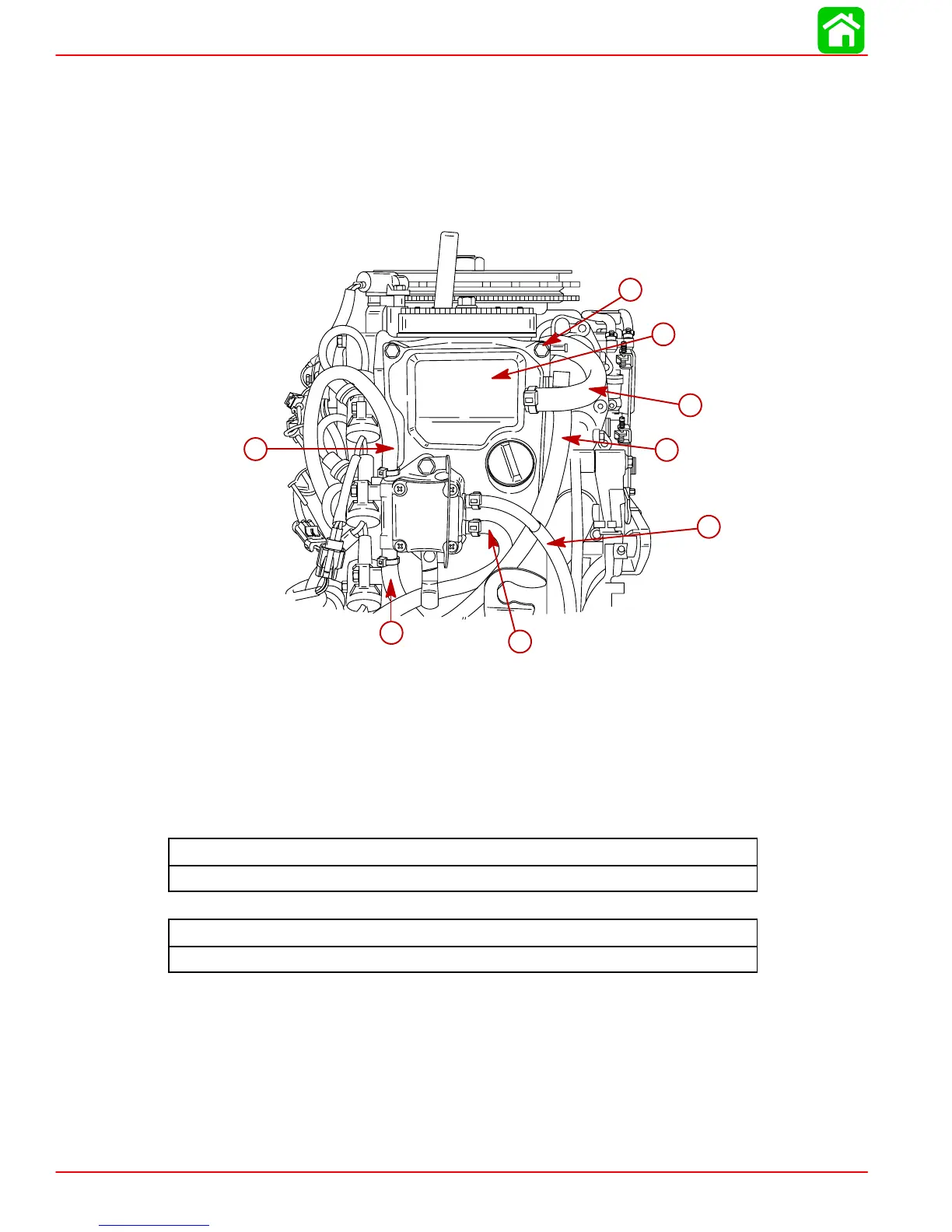

a-Screw (7) M6 x 20
b-Valve Cover
c-Crankcase Breather Hose
d-Crankcase Vent Hose
e-Fuel Pump Output Hose
f-Fuel Pump Input Hose
g-Fuel Cooler OUT Hose
h-Fuel Cooler IN Hose
Valve Cover Screw Torque
70 lb-in. (8 Nm)
Coil Mounting Screw
75 lb-in. (8.5 Nm)
