CYLINDER BLOCK/CRANKCASE
Page 4B-3790-857046R1 NOVEMBER 2001

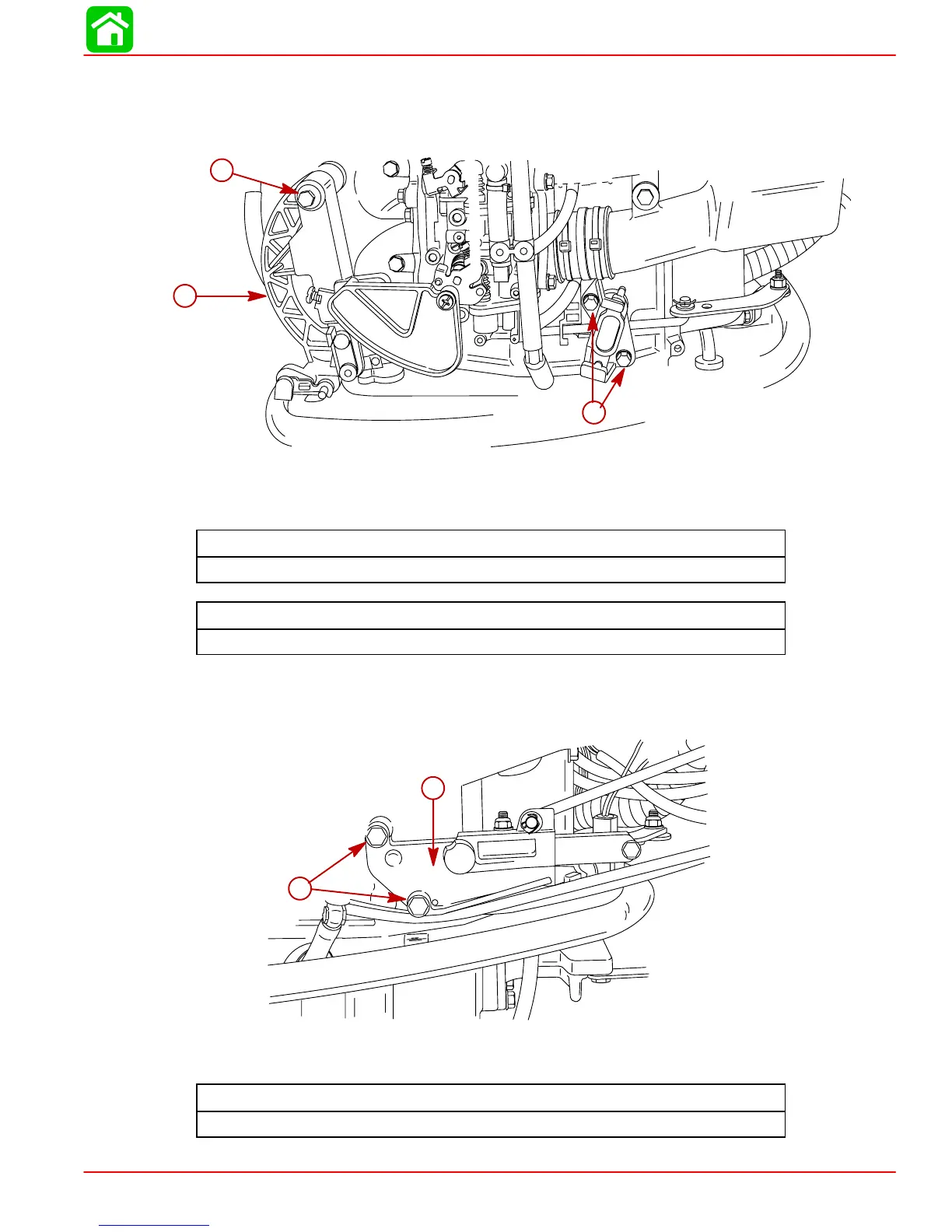

3. Re-connect throttle/shift linkage and control cable anchor bracket. Torque fasteners to
specified torque.
Remote Control Model (Bigfoot Gearcase)
58254
a
b
c
a-Control Cable Anchor Bracket Screw (2) M6 x 16
b-Throttle/Shift Lever
c-Throttle/Shift Lever Screw (1) M8 x 70
Throttle/Shift Lever Mounting Screw Torque
100 lb-in. (11 Nm)
Cable Anchor Bracket Mounting Screw Torque
75 lb-in. (8.5 Nm)
4. Install the shift guide bracket screws. Tighten to specified torque.
Tiller Handle Model (Bigfoot Gearcase)
58479
a
b
a-Shift Guide Bracket
b-Screw (2) M6 x 25
Shift Guide Bracket Mounting Screw Torque
70 lb-in. (8 Nm)
To Next Page
