CHECKING LUBRICANT LEVEL AND FILLING GEAR CASE
Gear Case Lubricant Capacity
24 fl oz (710 ml)
1. Place outboard in a vertical operating position.
2. Remove the front vent plug and rear vent plug.
3. Place lubricant tube into the fill hole and add lubricant until it appears at the front vent
hole. At this time install the front vent plug and sealing washer.
4. Continue adding lubricant until it appears at the rear vent hole.
5. Stop adding lubricant. Install the rear vent plug and sealing washer before removing lu-
bricant tube.
6. Remove lubricant tube and reinstall cleaned fill/drain plug and sealing washer.
a
c
d
e
b

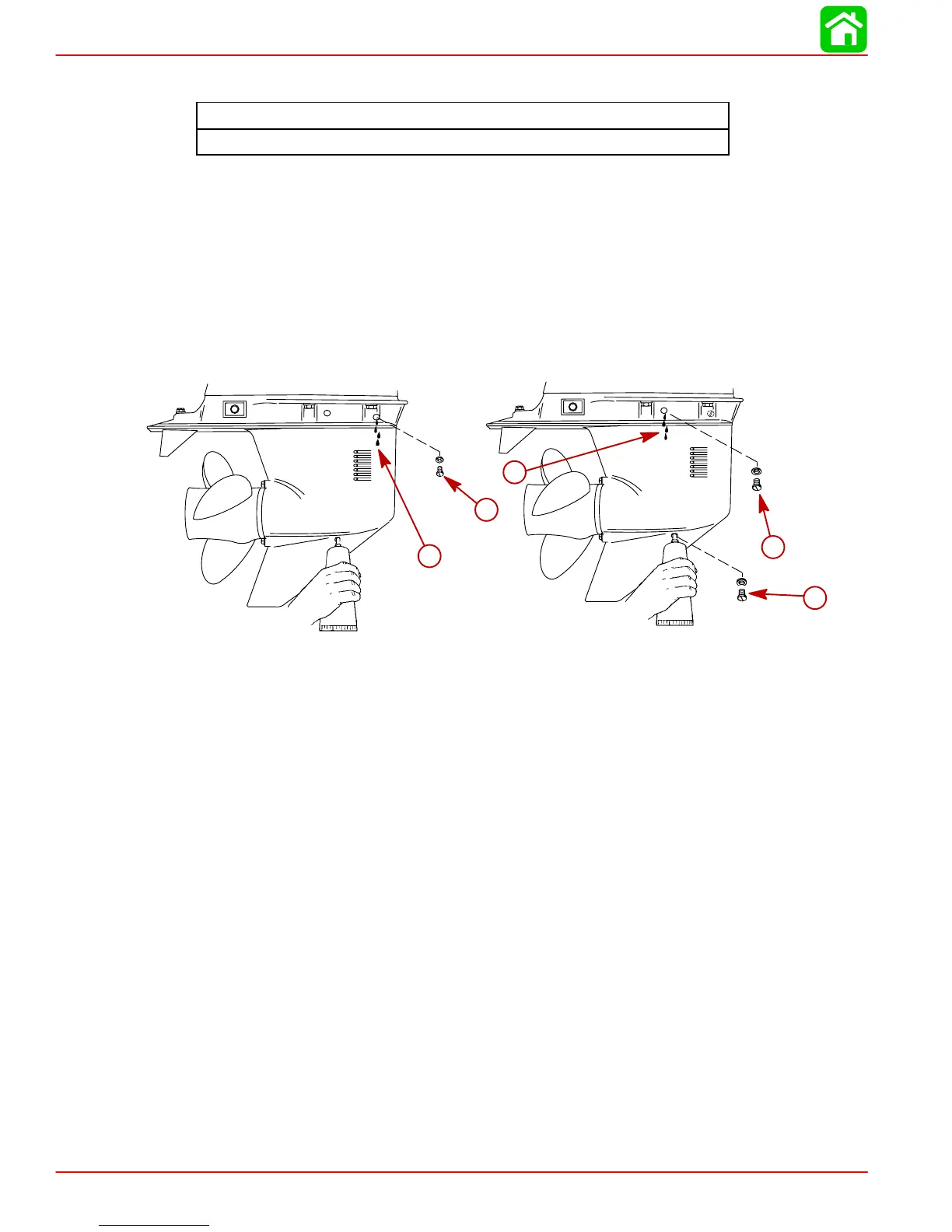

a-Front Vent Plug
b-Rear Vent Plug
c-Front Vent Hole
d-Rear Vent Hole
e-Fill/Drain Plug and Sealing Washer
