MANUAL TILT ASSIST
Page 5C-34 90-857046R1 NOVEMBER 2001
CAUTION

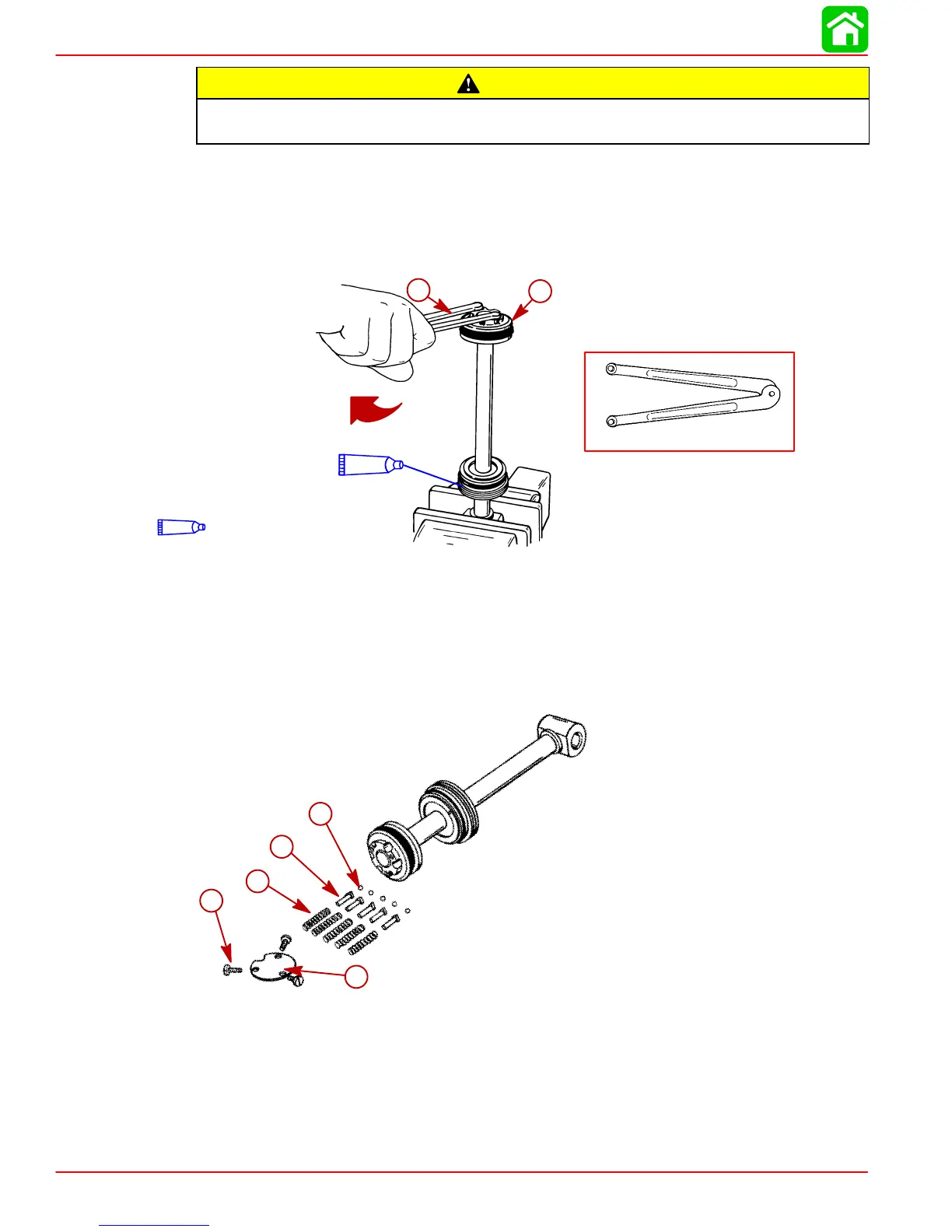

When installing shock rod piston, spanner wrench must have 1/4 in. x 5/16 in.
(6.4mm x8mm) long pegs to avoid damage to shock rod piston.
6. Apply Loctite 271 to threads on shock rod.
7. Install shock rod piston.
8. Tighten shock rod piston securely using spanner wrench [1/4 in. x 5/16 in. (6.4mm x
8mm) long pegs]. If a torquing type spanner tool is used to tighten shock piston, then
torque to 90 lb-ft (122 Nm).
51146
7
Loctite 271
7
a
b
91-74951
a-Spanner Wrench
b-Shock Rod Piston - Torque to 90 lb-ft (122 Nm)
9. Install ball, seat, and spring (five sets) to shock rod piston.
10. Secure components with plate. Torque screws to 35 lb-in. (4.0 Nm).
11. Remove shock rod assembly from vise.
51147
e
d
c
a
b
a-Screw (3) Torque to 35 lb-in. (4.0 Nm)
b-Plate
c-Spring (5)
d-Seat (5)
e-Ball (5)
