BIGFOOT GEAR HOUSING
Page 6B-22 90-857046R1 NOVEMBER 2001
6. Replace forward gear needle bearing if it is rusted or does not roll freely.
7. Use suitable tools (screwdriver and awl) to remove retaining ring. Use a punch and ham-
mer to remove bearing.

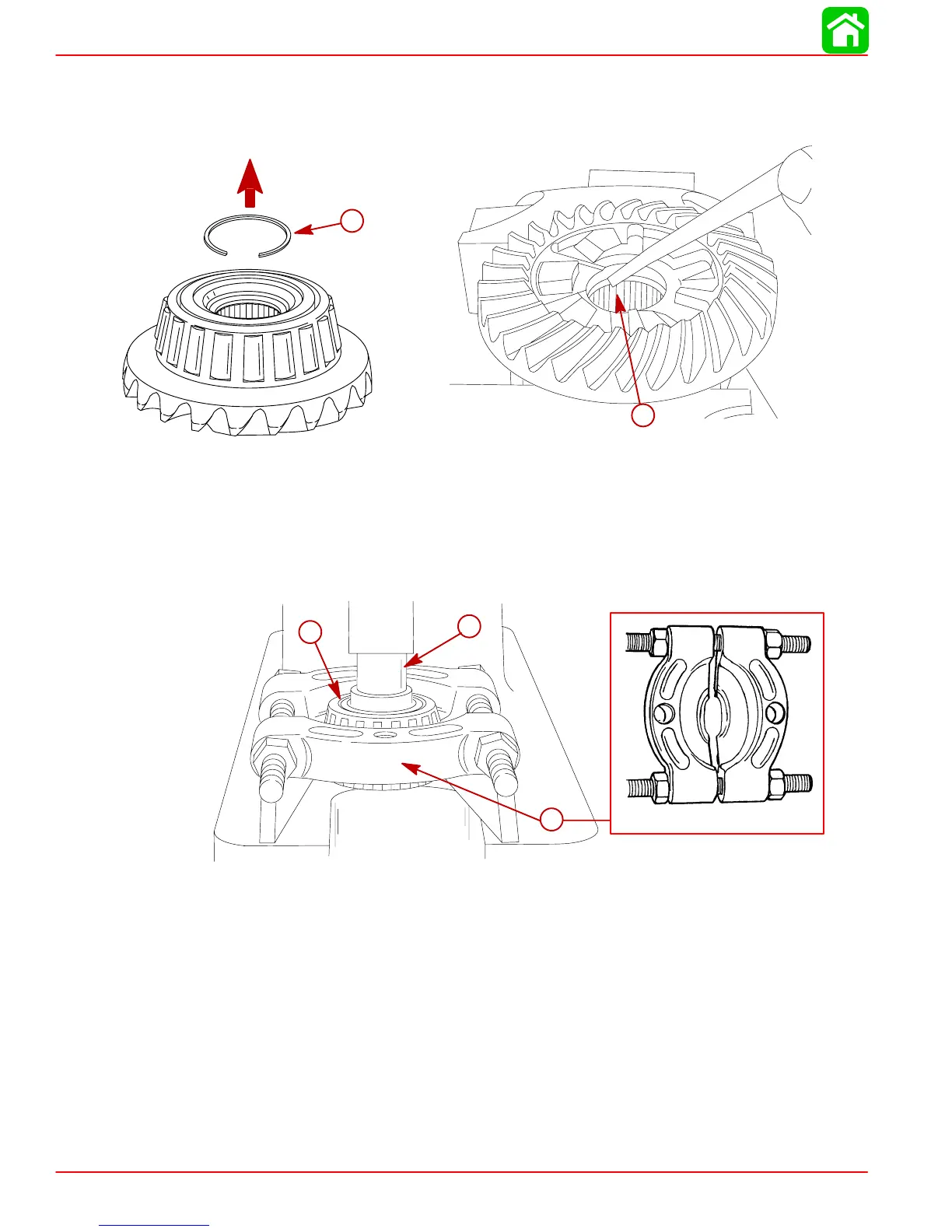

19203
57905
a
b
a- Retaining Ring
b- Forward Gear Needle Bearing
8. Replace forward gear bearing and race if either are rusted, pitted or damaged, or if bear-
ing does not roll freely. Remove bearing from gear using Universal Puller Plate
(91-37241) and mandrel. To remove race, refer to “Forward Gear Bearing Race,” follow-
ing.
51119
a
b
c
91-37241
a- Forward Gear Bearing
b- Universal Puller Plate (91-37241)
c- Mandrel
