BIGFOOT GEAR HOUSING
Page 6B-28 90-857046R1 NOVEMBER 2001

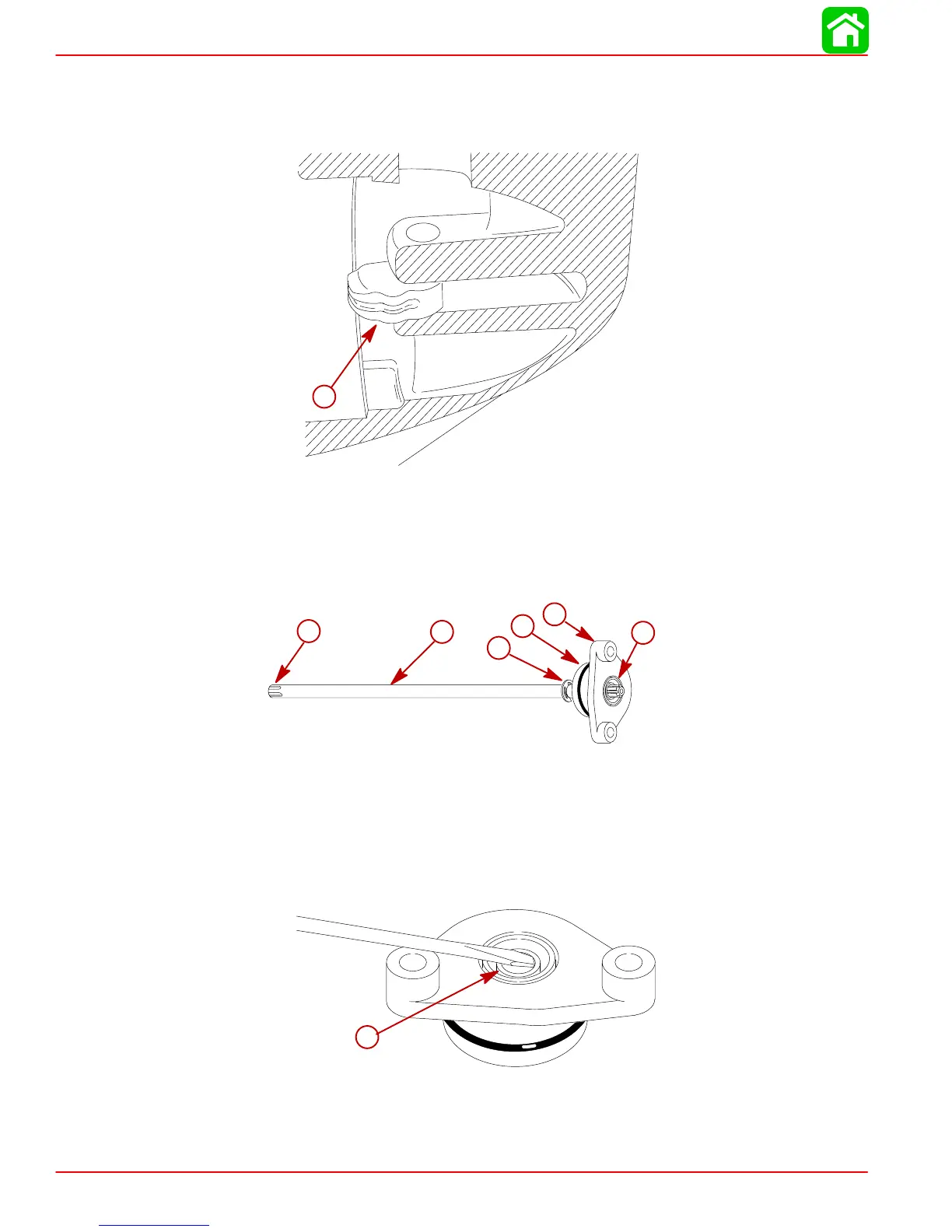

4. Remove shift cam from housing.
5. Replace shift cam if worn.
60 (2-Stroke) Bigfoot Shown
51117
a
a- Shift Cam
6. Remove shift shaft bushing and clip from shift shaft.
7. Replace shift shaft if splines are worn or shaft is twisted.
8. Remove (and discard) O-ring.
53928
a
b
c
d
e
d
a- Bushing
b- Clip
c- Shift Shaft
d- Splines
e- O-ring
9. Remove (and discard) seal. (Lightly clamp the bushing in a vise when removing seal.)
53929
a
a- Seal
