SPECIFICATIONS
90-857046R1 NOVEMBER 2001 Page 1A-5

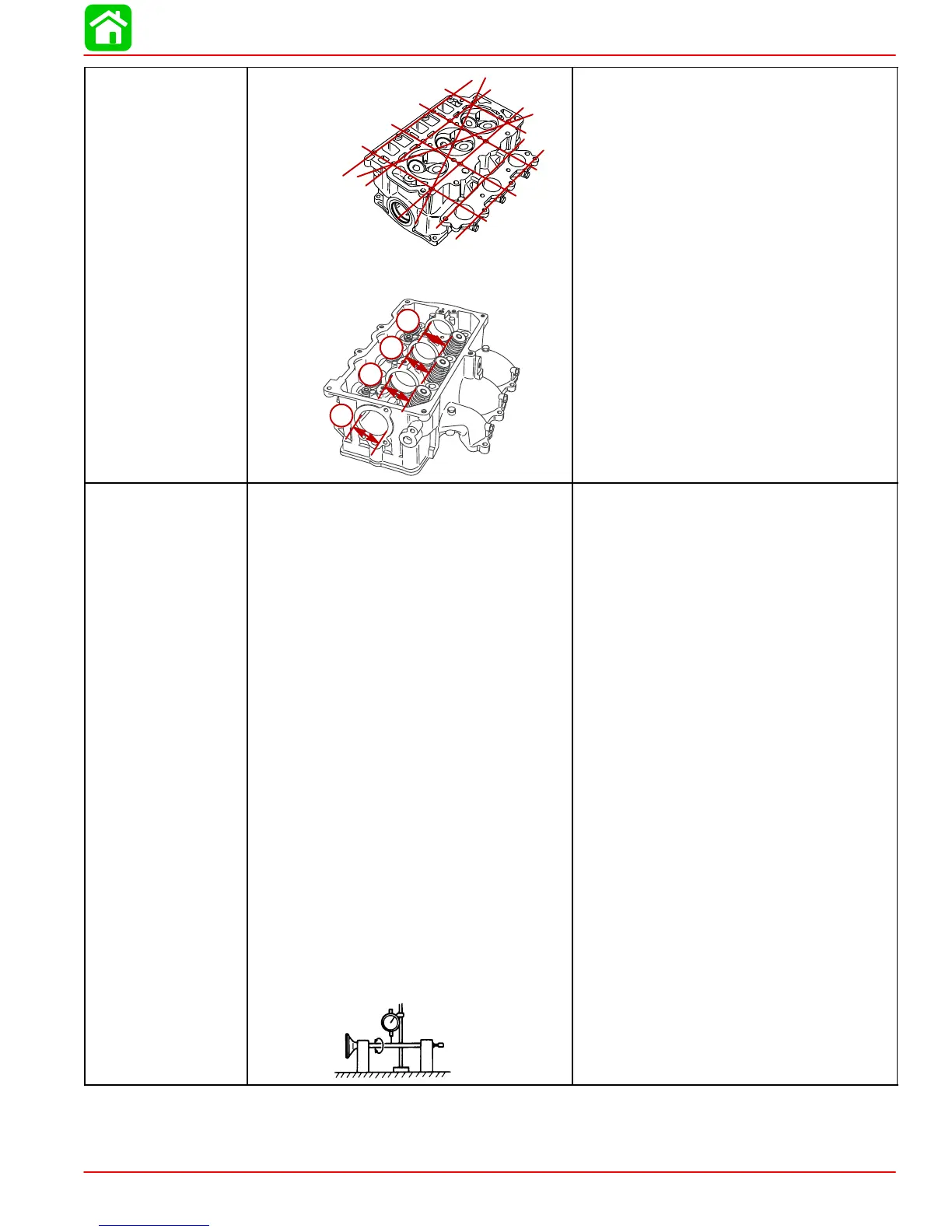

CYLINDER HEAD
Warp Limit
* Lines indicate
straight edge
measurement
Camshaft Bore Inside Diameter “a”
56900
56899
a
a
a
a
0.004 in. (0.1 mm)
1.4567 - 1.4577 in.
(37.000 - 37.025 mm)
VALVES
Valve/Valve Seat/Valve Guides:
Valve Clearance (cold)
Intake
Exhaust
Valve Dimensions:
“A” Head Diameter
Intake
Exhaust
“B” Face Width
Intake
Exhaust
“C” Seat Width
Intake
Exhaust
“D” Margin Thickness
Intake
Exhaust
Stem Outside Diameter
Intake
Exhaust
Guide Inside Diameter
Intake
Exhaust
Stem To Guide Clearance
Intake
Exhaust
Stem Run-out Limit (max.)
0.006 - 0.010 in. (0.15 - 0.25 mm)
0.010 - 0.014 in. (0.25 - 0.35 mm)
1.256 - 1.264 in. (31.9 - 32.1 mm)
1.020 - 1.028 in. (25.9 - 26.1 mm)
0.079 - 0.124 in. (2.00 - 3.14 mm)
0.079 - 0.124 in. (2.00 - 3.14 mm)
0.035 - 0.043 in. (0.9 - 1.1 mm)
0.035 - 0.043 in. (0.9 - 1.1 mm)
0.020 - 0.035 in. (0.5 - 0.9 mm)
0.020 - 0.035 in. (0.5 - 0.9 mm)
0.2156 - 0.2161 in. (5.475 - 5.490 mm)
0.2150 - 0.2156 in. (5.460 - 5.475 mm)
0.2165 - 0.2170 in. (5.500 - 5.512 mm)
0.2165 - 0.2170 in. (5.500 - 5.512 mm)
0.0004 - 0.0015 in. (0.010 - 0.037 mm)
0.0010 - 0.0020 in. (0.025 - 0.052 mm)
0.0006 in. (0.016 mm)
