8 Description of Function Codes NICE3000
new
User Manual
- 234 -
8
Bit Meaning Bit Meaning
Bit4
Elevator state:
0: Inspection
1: Shaft auto-tuning
3: Return to base oor at re emergency
4: Fireghter operation
6: Attendant operation
7: Automatic (normal)
Bit12 Full-load
Bit5 Bit13 Overload
Bit6 Bit14 Reserved
Bit7 Bit15 Reserved
The method of viewing this parameter is the same as that of parameter "Input terminal low bits".
16. Pre-torque current: indicates the percentage of the pre-torque current compensated by the
NICE3000
new
system at startup to the rated current, in unit of %.
8.13.2 Elevator and Door State Display
Function Code Parameter Name Setting Range Default Unit Property
FA-12
Logic information 0–65535 0 -
It displays the elevator and door state.

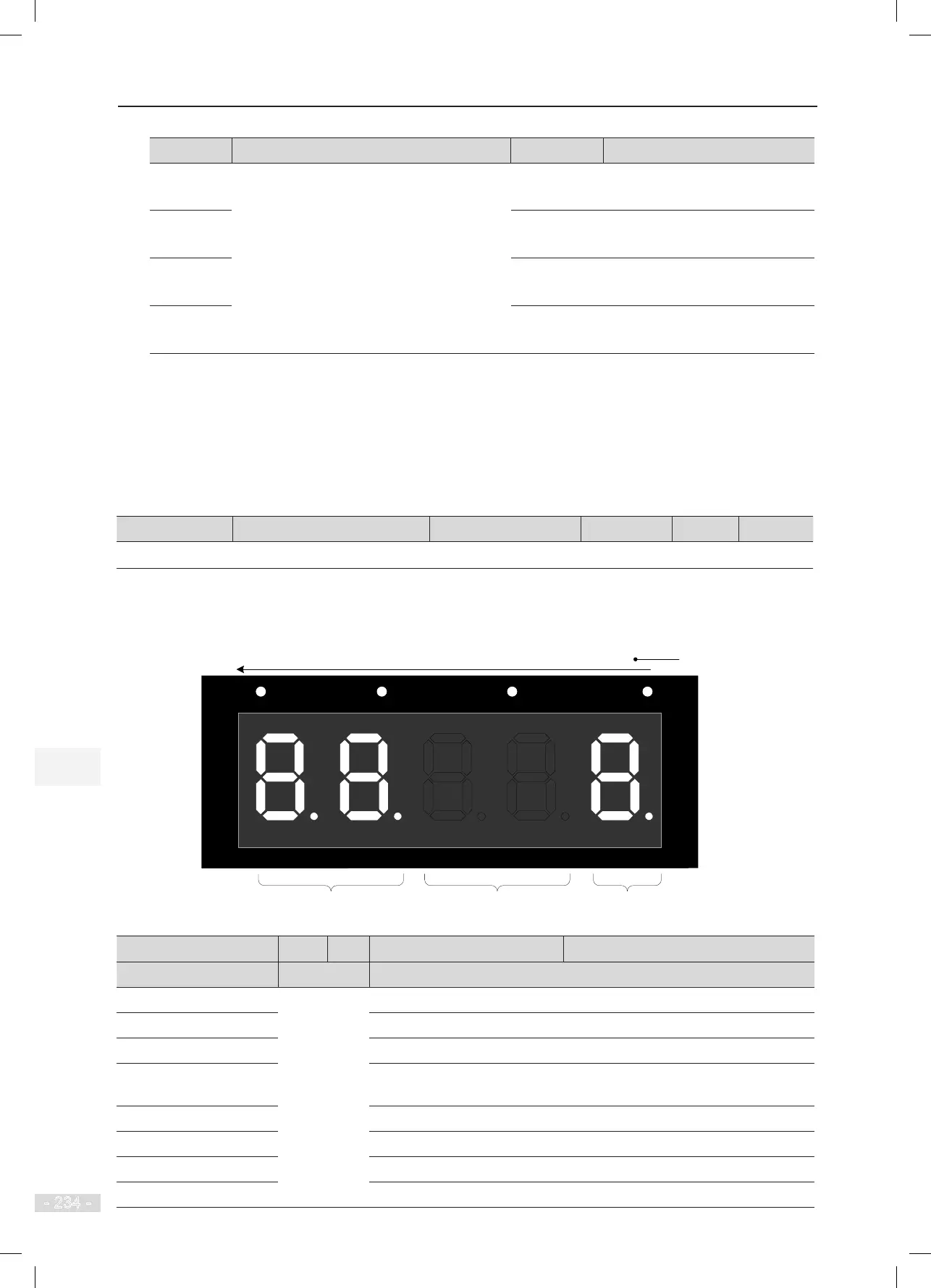

Figure 8-16 Elevator and door state display
RUN
LOCAL/REMOT FED/REV TUNE/TC
5
4 3
2
1
LED No.
Elevator state No display Door 1 state
1 2 3 4 5
Door 1 State No Display Elevator State
0 Waiting state
-
00 Inspection state 08 Elevator lock
1 Door open state 01 Shaft auto-tuning 09 Idle elevator parking
2 Door open limit 02 Micro-leveling 10 Re-leveling at inspection speed
3 Door close state 03
Returning to base oor
at re emergency
11 Emergency evacuation operation
4 Door close limit 04 Fireghter operation 12 Motor auto-tuning
- - 05 Fault state 13 Keypad control
- - 06 Attendant operation 14 Base oor check
- - 07 Automatic running 15 VIP state
