NICE3000
new
User Manual 8 Description of Function Codes
- 239 -
8

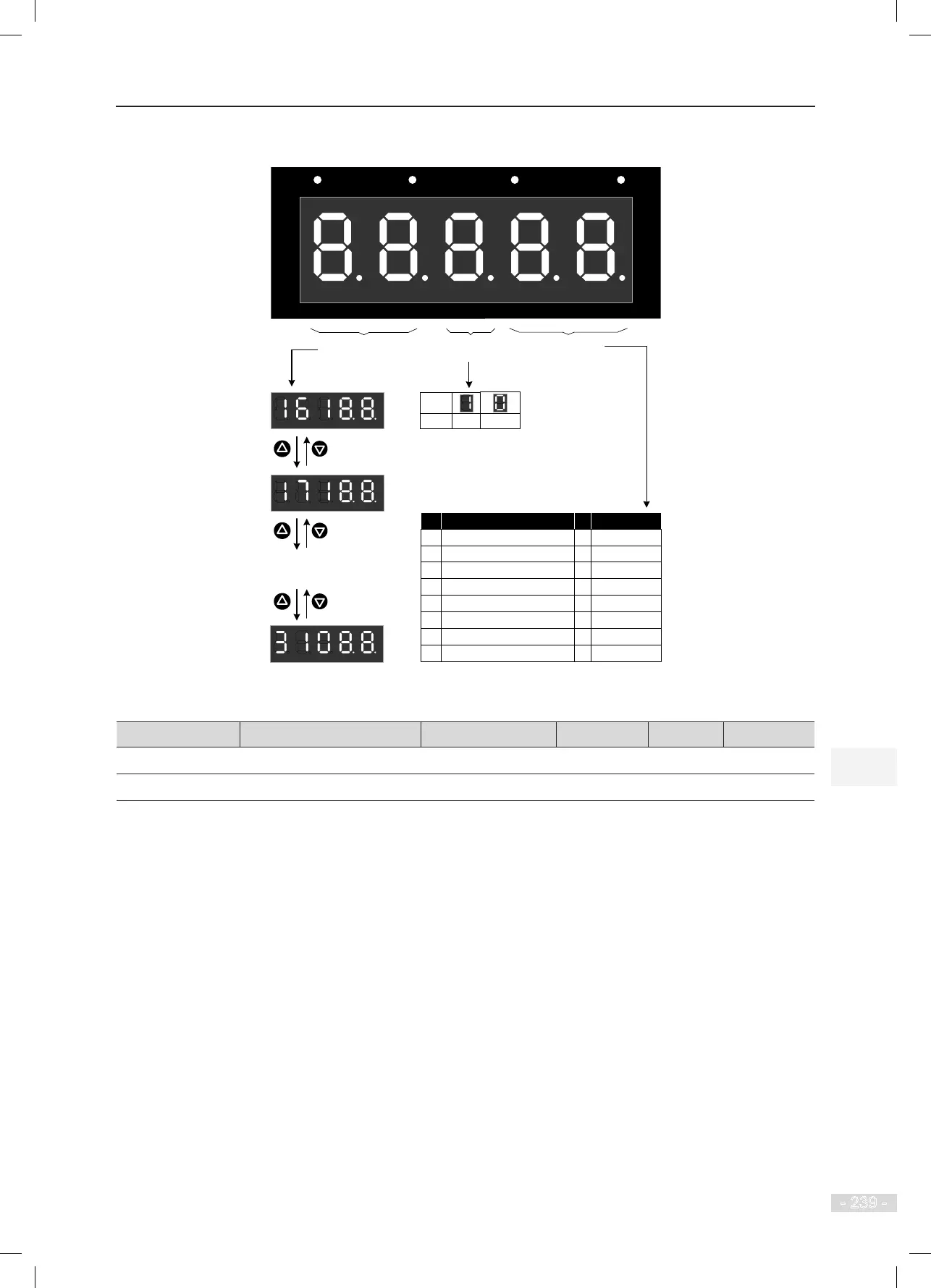

Figure 8-23 FA-32 Output state 2
RUN LOCAL/REMOT FED/REV TUNE/
TC
16
17
1820
21
19
22
23
24
25
26
30
27
28
29
31
Present signal No.
State of present
signal
Each segment
indicates a signal
Segment ON: active
Segment OFF: inactive
Display
Meaning
Active Inactive
...
No.
Signal
No.
Signal
16
17
18
19
20
21
23
Elevator running in up direction
Lamp/Fan running
Electric lock
Non-door zone stop
Medical sterilization
Non-service state
Reserved
24
25
26
28
29
30
31
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Reserved
Higher-voltage startup of brake
27
Reserved
22
8.13.6 Car Input/Output State Display
Function Code Parameter Name Setting Range Default Unit Property
FA-33
Car input state 0–65535 0
-
FA-34
Car output state 0–65535 0
-
They are used to display the car input and output states.
