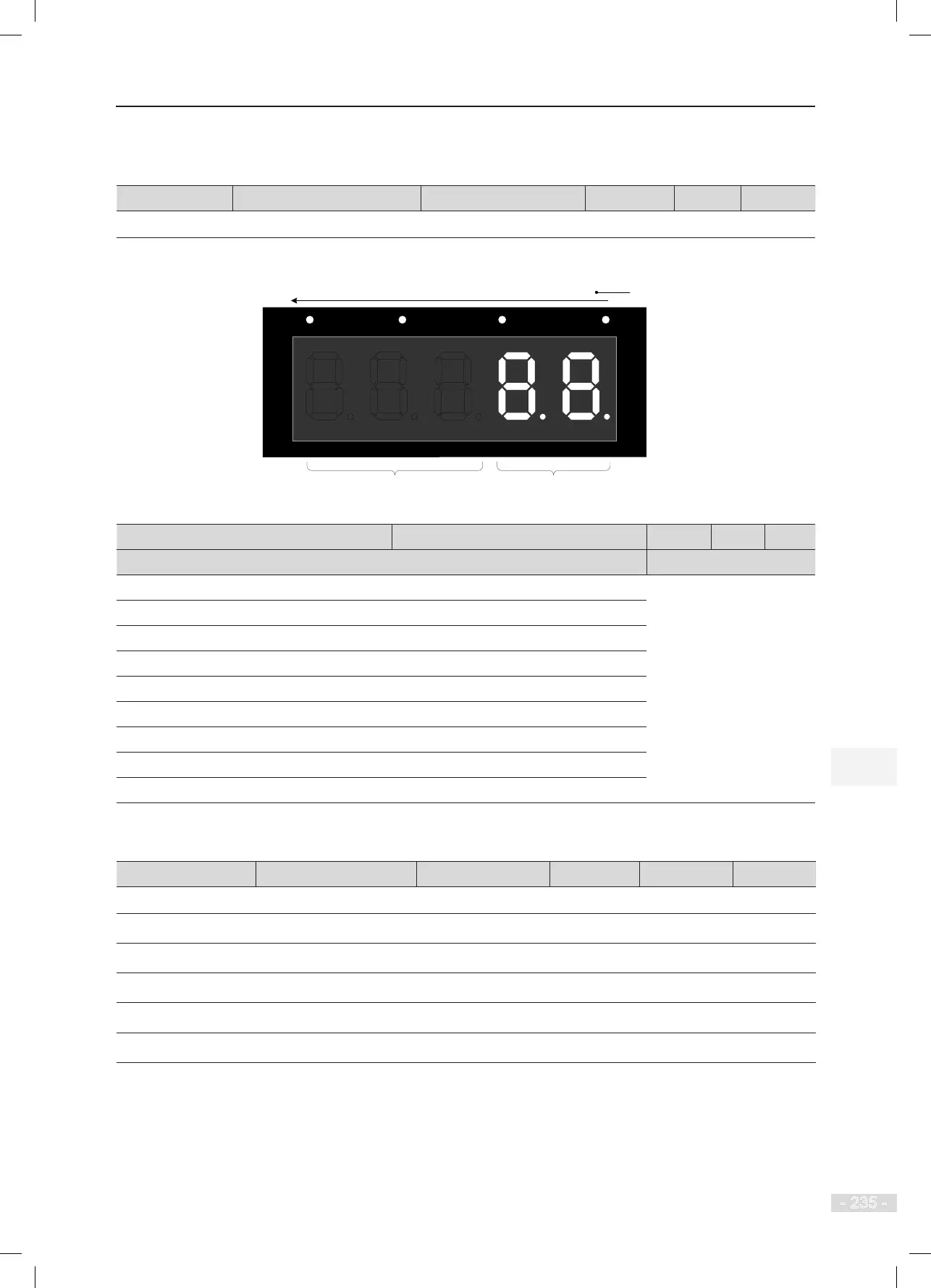

NICE3000
new
User Manual 8 Description of Function Codes
- 235 -
8
8.13.3 System Running Curve Display
Function Code Parameter Name Setting Range Default Unit Property
FA-13
Curve information 0–65535 0 -
It displays the system running curve information
RUN
LOCAL/REMOT FED/REV TUNE/TC
5 4 3 2
1
LED No.
No display
Running curve
information
1 2 3 4 5
Curve Information No Display
00 Standby state 09 Deceleration start segment
-
01 Zero-speed start segment 10 Linear deceleration segment
02 Zero-speed holding segment 11 Deceleration end segment
03 Reserved 12 Zero speed at stop
04 Startup speed stage 13 Current stop stage
05 Acceleration start segment 14 Reserved
06 Linear acceleration segment 15 Stop data processing
07 Acceleration end segment 16-20 Auto-tuning stage
08 Stable-speed running segment 21 Emergency operation
8.13.5 MCB Input/Output State Display
Function Code Parameter Name Setting Range Default Unit Property
FA-26
Input state 1 0–65535 0
-
FA-27
Input state 2 0–65535 0
-
FA-28
Input state 3 0–65535 0
-
FA-30
Input state 5 0–65535 0
-
FA-31
Output state 1 0–65535 0
-
FA-32
Output state 2 0–65535 0
-
These parameters display the system input and output states.
