NICE3000
new
User Manual
2 Product Information
- 23 -
2
2.3 Exploded Views of Components

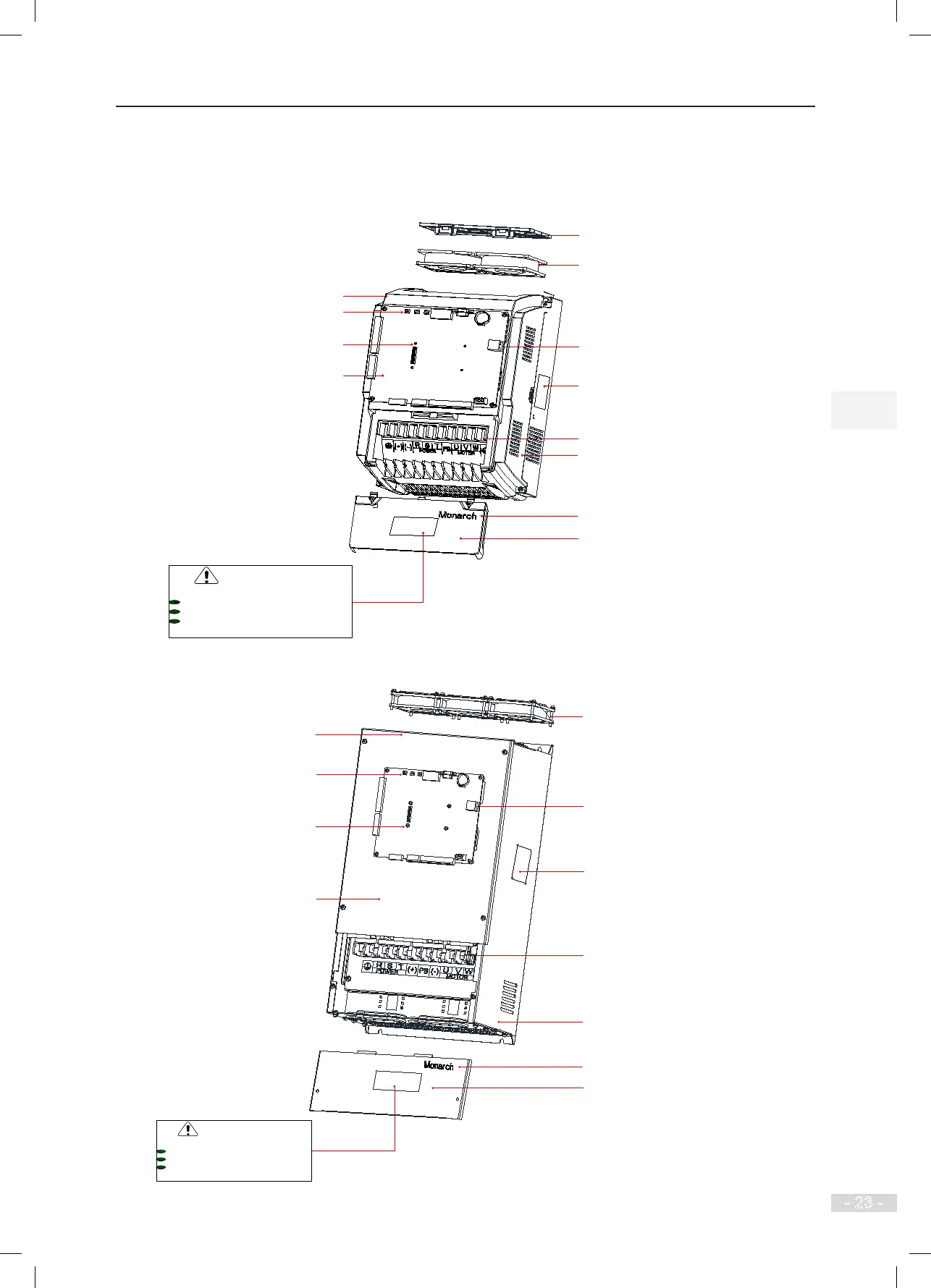

Figure 2-2 Exploded view of the plastic structure (2.2–15 kW)
Terminal cover
For removing and reattaching, see
section 3.1.
Logo
House
Main circuit and grounding terminals
For related description, see section 3.2.1.
Nameplate
For related description, see section 2.2.
Control board
For related description, see section 3.2.
Cooling fan
For removing and installing of the
fan, see section 11.3.
Fan cover
Equipment bar code
Interface for external operation panel
For use of the operation panel, see
section 5.2.
PG card fixing holes (4)
For use of the PG card, see section 4.5
Warning
label
Keypad
For the use, see section 5.1.
Read the manual and follow the safety instructions
before use
Wait 10 mins power down before removing cover
Risk of electric shock
WARNING
Figure 2-3 Exploded view of the sheet metal structure (18.5–30 kW)
Terminal cover
For removing and reattaching,
see section 3.1.
Equipment bar code
PG card fixing holes (4)
For use of the PG card, see
section 4.5
.
House
Main circuit and grounding
terminals
For related description, see
section 3.2.1.
Nameplate
For related description, see
section 2.2.
Control board
For related description, see
section 3.2.
Fan components
For removing and installing
of the fan, see section 11.3.
Interface for external
operation panel
For use of the operation panel,
see section 5.2.
Logo
Keypad
For the use, see section 5.1.
Warning label
Read the manual and follow the safety instructions
before use
Wait 10 mins power down before removing cover
Risk of electric shock
WARNING
