NICE3000
new
User Manual
4 Peripheral Devices and Options
- 87 -
S2 Function
S2.4 For test
S2.5 HCB-B function selection
S2.6 HCB-B function selection
The HCB-B provides nine functions, which can be set according to the following table.
Table 4-18 Function setting of the HCB-B
HCB-B Function S2.6 S2.5 S2.3 S2.2
1. HCB-B function OFF OFF ON OFF
2. Binary output OFF OFF OFF ON
3. 7-segment function OFF OFF OFF OFF
4. BCD output OFF ON OFF OFF
5. Binary output with letter OFF ON OFF ON
6. Disability function output OFF ON ON OFF
7. In-car extension output OFF ON ON ON
8. In-car output based on physical oor (binary output) ON OFF OFF ON
9. Indication by hall arrival gong and indicator ON OFF OFF OFF
4.4.3 CCB Board (MCTC-CCB)
The car call board (MCTC-CCB) is another interface between users and the control system. Each CCB
comprises 24 inputs and 22 outputs, including 16 oor buttons and 8 functional signals. The CCB mainly
collects button calls and outputs signals of the button call indicators. The need for 40-oor use can be
implemented through cascaded connection. CN2 is an input connector and CN1 is a cascaded output
connector.

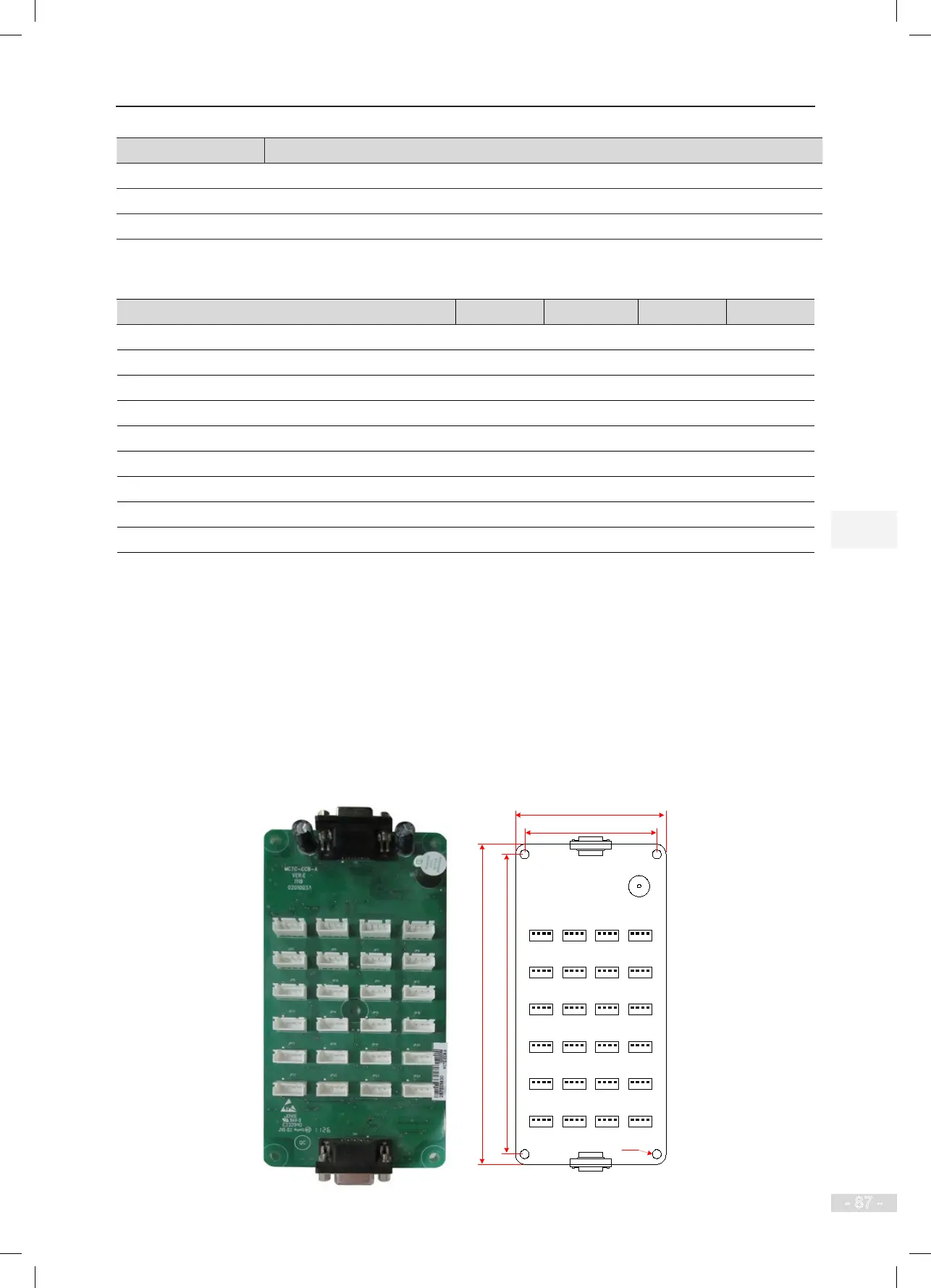

The following îš¿gure shows the appearance and dimensions of the CCB.
Figure 4-20 Appearance and dimensions of the CCB
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
JP1 JP2 JP3 JP4
JP5 JP6 JP7 JP8
JP9 JP10 JP11 JP12
JP13 JP14 JP15 JP16
JP17 JP18 JP19 JP20
JP21 JP22 JP23 JP24
CN1
Buzzer
Floor 1 Floor 2 Floor 3 Floor 4
Floor 5 Floor 6 Floor 7 Floor 8
Floor 9 Floor 10 Floor 11 Floor 12
Floor 13 Floor 14 Floor 15 Floor 16
Attendant
Direction
change
Independent
running
Fire
emergency
Door
open
Door
close
Door open
delay
Direct
travel ride
79
69
158
148
MCTC-CCB
CN2
R2.5
Unit: mm
