4 Peripheral Devices and Options NICE3000
new
User Manual
- 92 -
4

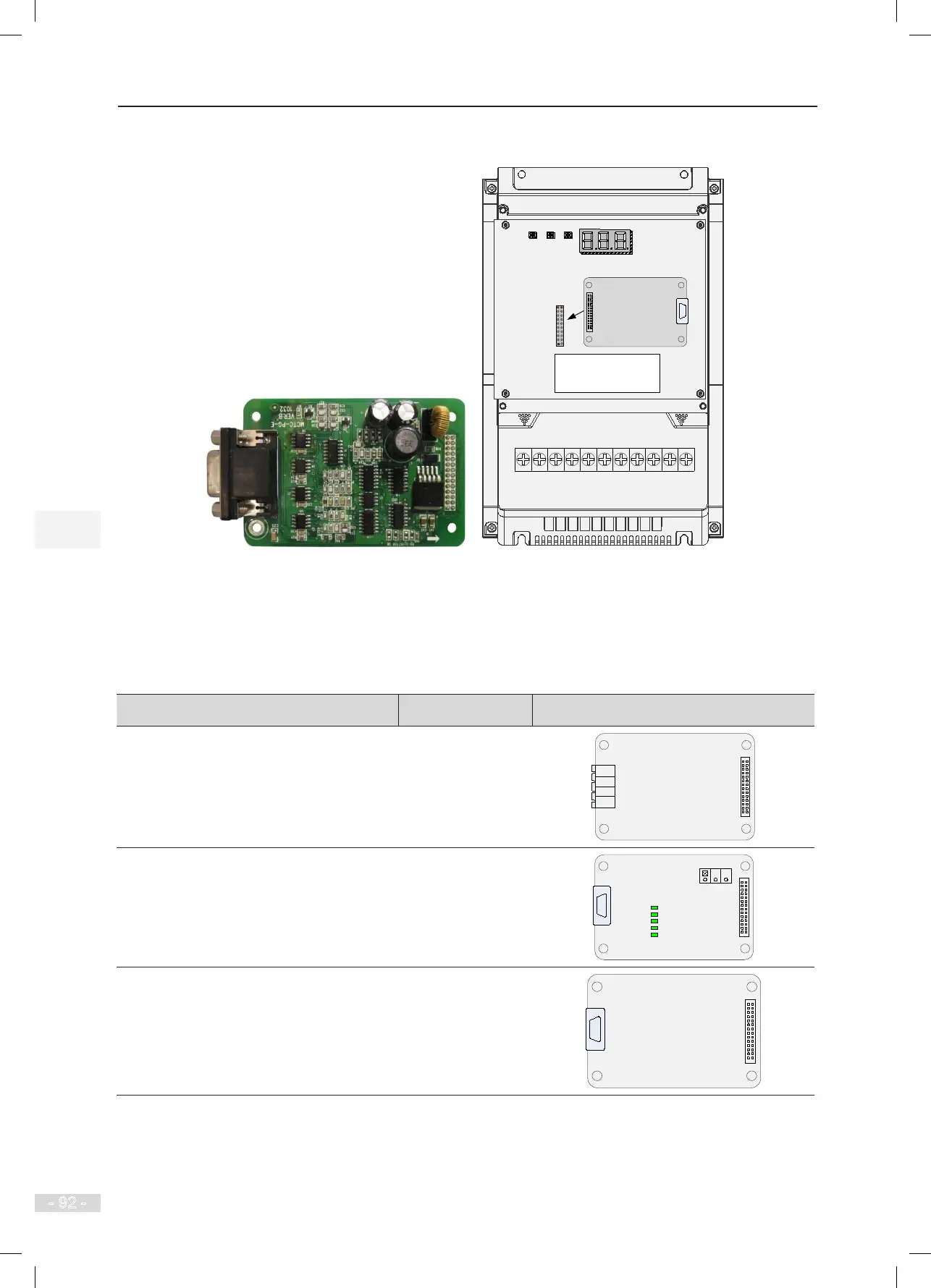

Figure 4-25 Appearance of the MCTC-PG card and its installation on the controller
PRG
UP
SET
NICE3000
new
series integrated
elevator controller
J12
J1
MCTC-PG
card
CN1
4.5.1 Selection of MCTC-PG Cards
Monarch provides four PG card models, MCTC-PG-A2, MCTC-PG-D, MCTC-PG-E and MCTC-PG-F1 for
different encoder types, as described in the following table.
Table 4-21 Selection of the MCTC-PG card models
Encoder Type Adaptable PG Card Appearance
Push-pull encoder
Open-collector incremental encoder
MCTC-PG-A2
12V
PGM
PGA
PGB
MCTC-PG-A2
J1
CN1
UVW encoder MCTC-PG-D
J1
MCTC-PG-D
CN1
D2
D5
D8
D11
D14
M AI
CN2
SIN/COS encoder MCTC-PG-E
J1
MCTC-PG-E
CN1
