NICE3000
new
User Manual
3 Mechanical and Electrical Installation
- 41 -
3
3.2.3 Main Circuit Cable Sizes and Tightening Torque

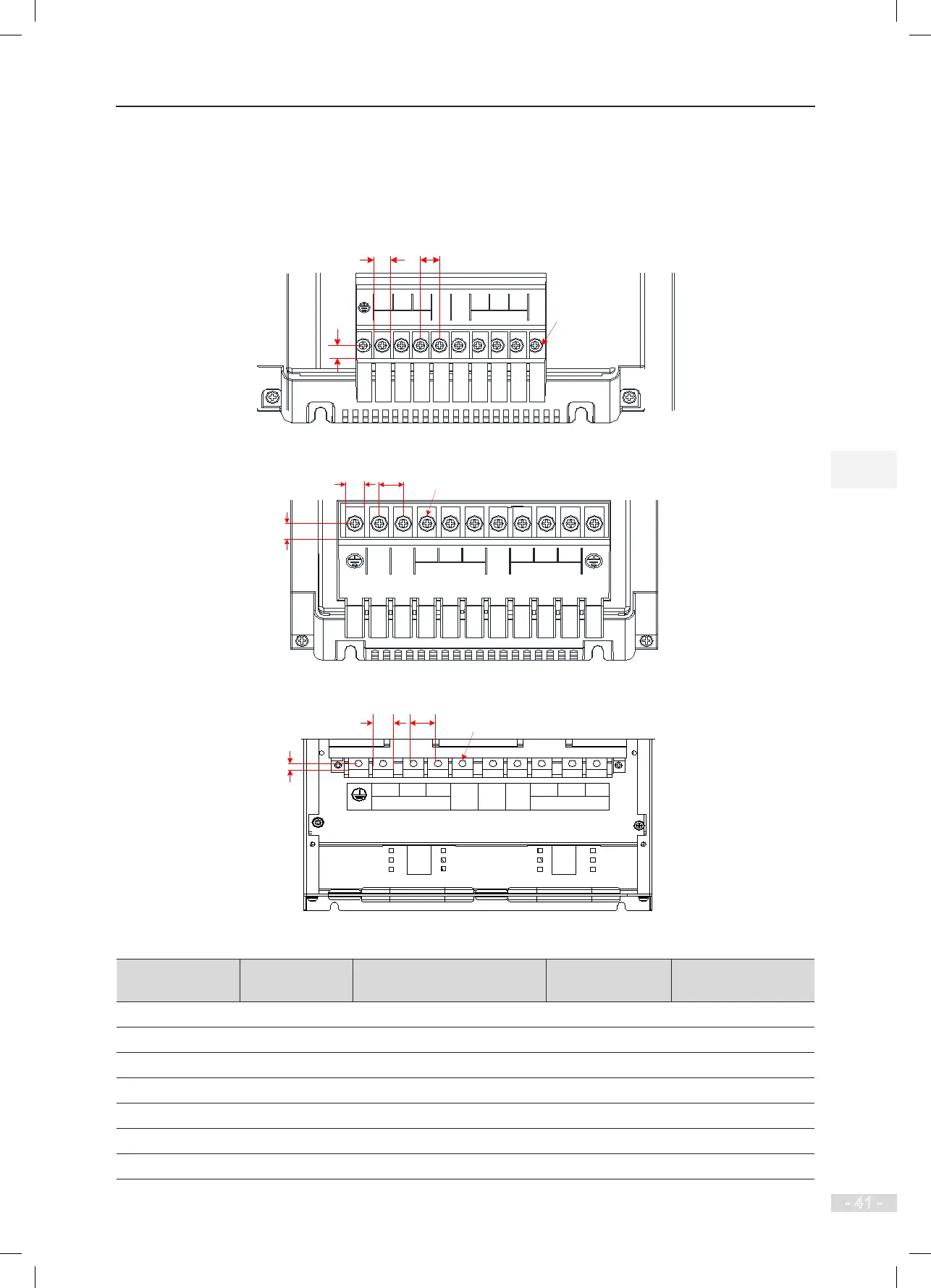

Figure 3-15 Main circuit cable size diagrams (Size C to Size E)
1) Plastic structure, Size C
R S T U V W
POWER
MOTOR
(-) (+)
PB
8
.9
9.6
11.1
M4 combination
screw
2) Plastic structure, Size D
(-)(+)
R S T
POWER
PB
U V W
MOTOR
10.9
11.5 14.5
M5 combination screw
3) Sheet metal structure, Size E
R S
(+) (-)
U
WV
PB
POWER MOTOR
T
6
20
17
M6 combination screw
Table 3-4 Cable size and torque of Size C to Size E (NICE-L-C-4002/3/5/7/11/15/22/30)
Controller Model
Rated Input
Current (A)
Recommended Output Power
Cable Diameter (mm
2
)
Torque of Torque
Driver (N·m)
Recommended Cable
Lug Model
NICE-L-C-4002 6.5 0.75 1.2 TNR0.75-4
NICE-L-C-4003 10.5 1.5 1.2 TNR1.25-4
NICE-L-C-4005 14.8 2.5 1.2 GTNR2.5-4
NICE-L-C-4007 20.5 4 2.5 GTNR4-5
NICE-L-C-4011 29.0 6 2.5 GTNR6-5
NICE-L-C-4015 36.0 6 2.5 GTNR6-5
NICE-L-C-4018 41.0 10 4.0 GTNR10-6
