3 Mechanical and Electrical Installation NICE3000
new
User Manual
- 42 -
3
Controller Model
Rated Input
Current (A)
Recommended Output Power
Cable Diameter (mm
2
)
Torque of Torque
Driver (N·m)
Recommended Cable
Lug Model
NICE-L-C-4022 49.5 10 4.0 GTNR16-6
NICE-L-C-4030 62.0 16 4.0 GTNR16-6

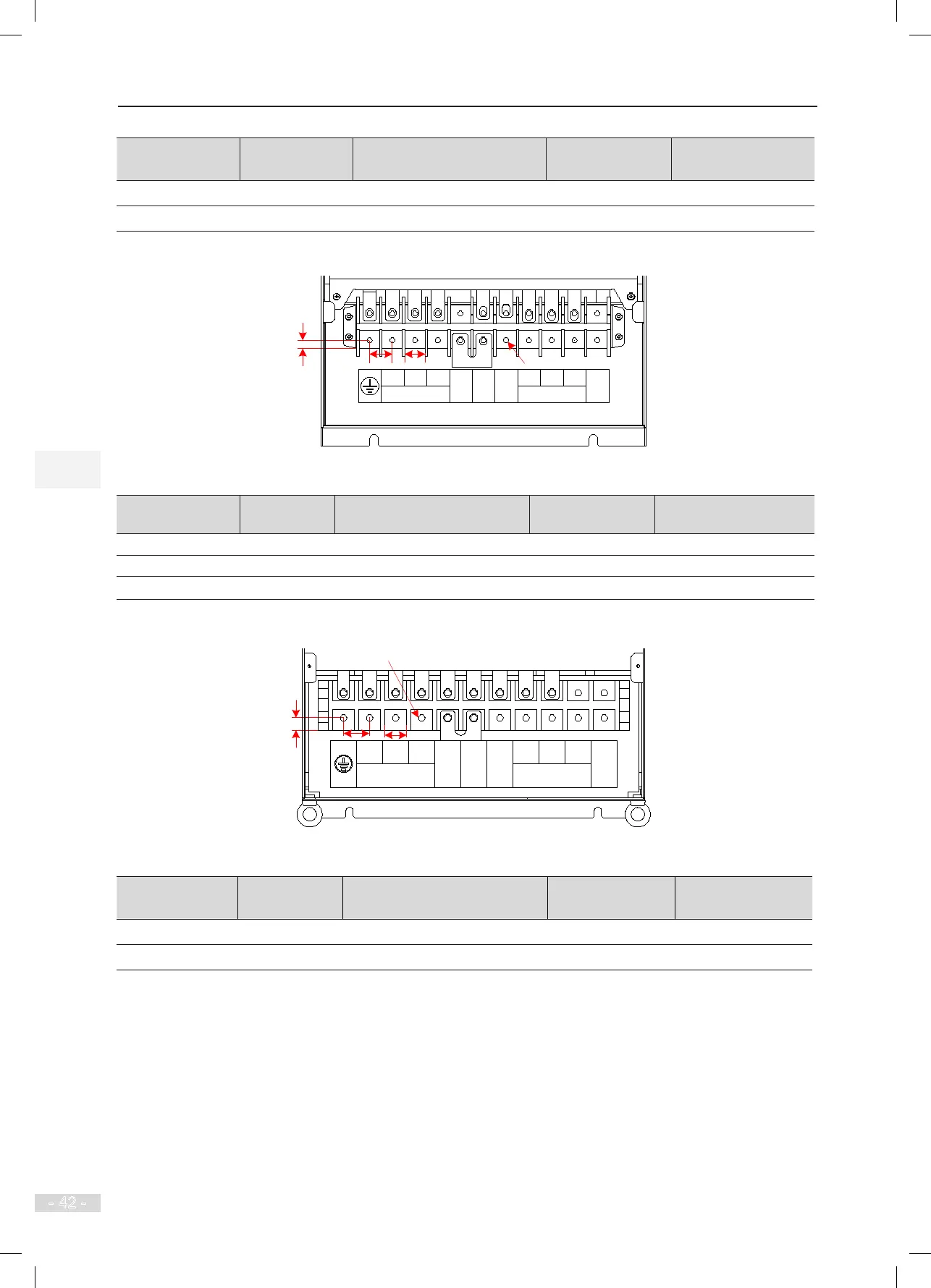

Figure 3-16 Main circuit cable size diagram of sheet metal structure, Size F
R S T
POWER
电源
U V W
MOTOR
电机
(-)
(+)
P
10
27
M8 combination screw
24
Table 3-5 Cable size and torque of Size F (NICE-L-C-4037/45/55)
Controller Model
Rated Input
Current (A)
Recommended Output Power
Cable Diameter
mm
2
)
Torque of Torque
Driver (N·m)
Recommended Cable
Lug Model
NICE-L-C-4037 77.0 25 10.5 GTNR25-8
NICE-L-C-4045 93.0 35 10.5 GTNR35-8
NICE-L-C-4055 113.0 50 10.5 GTNR50-8
Figure 3-17 Main circuit cable size diagram of sheet metal structure, Size G
M10 combination screw
17
36
30
R S T
POWER
电源
U V W
MOTOR
电机
(-)(+)
P
Table 3-6 Cable size and torque of Size G (NICE-L-C-4075/95)
Controller Model
Rated Input
Current (A)
Recommended Output Power
Cable Diameter (mm
2
)
Torque of Torque
Driver (N·m)
Recommended
Cable Lug Model
NICE-L-C-4075 157.5 70 20 GTNR70-10
NICE-L-C-4090 180.0 95 20 GTNR95-10
