3 Mechanical and Electrical Installation
- 43 -
3

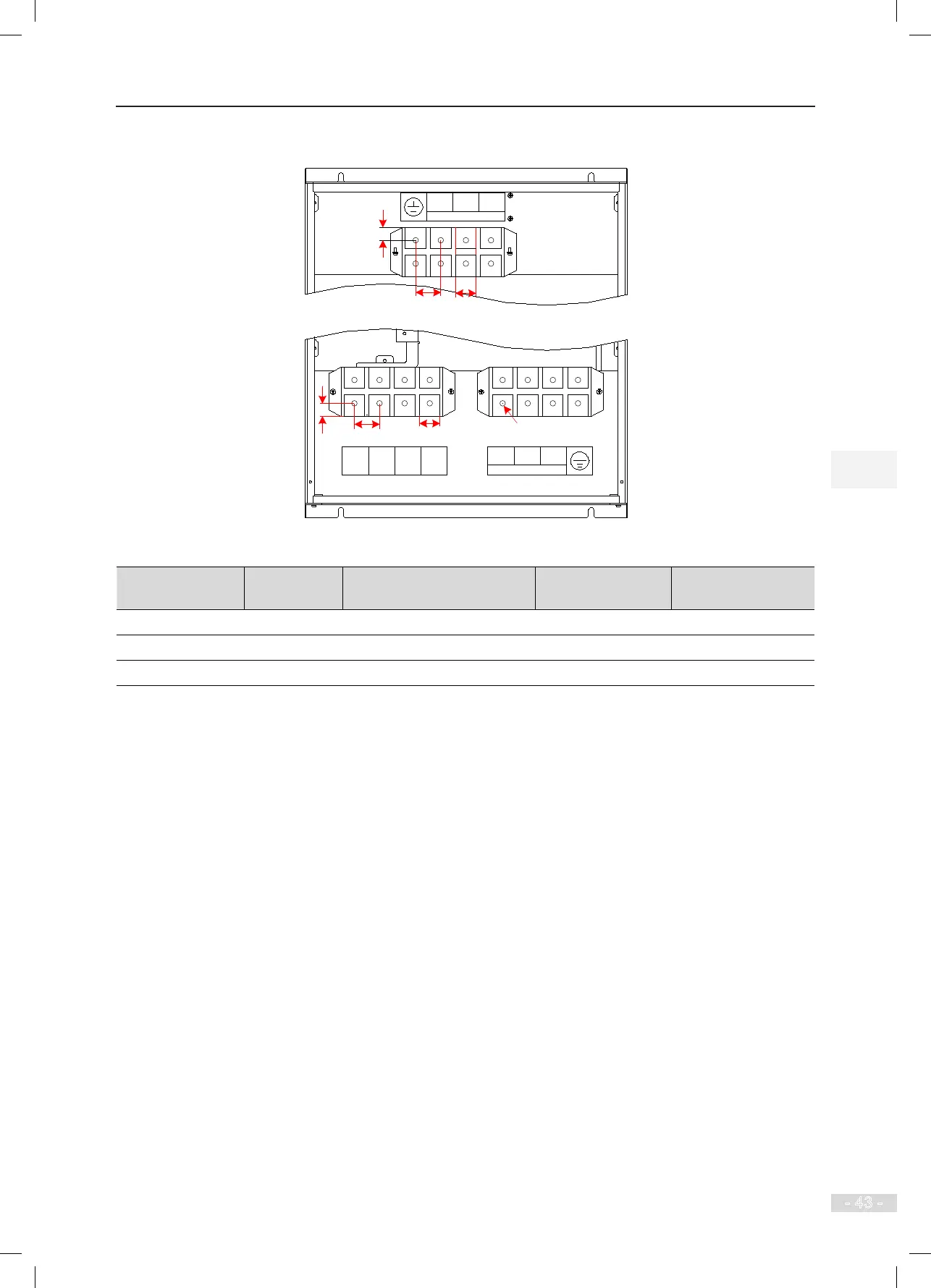

Figure 3-18 Main circuit cable size diagram of sheet metal structure, Size H
22.8
45
M10 combination screw
37
22.8
45
37
R S T
POWER
电源
U V W
MOTOR
电机
(-) (+)
P
Table 3-7 Cable size and torque of Size H (NICE-L-C-4110/132/160)
Controller Model
Rated Input
Current (A)
Recommended Output Power
Cable Diameter (mm
2
)
Torque of Torque
Driver (N·m)
Recommended Cable
Lug Model
NICE-L-C-4110 214.0 120 35.0 GTNR120-12
NICE-L-C-4132 256.0 120 35.0 GTNR120-12
NICE-L-C-4160 307.0 150 35.0 GTNR150-12
The manufacturuer of the above recommended cable lug models is Suzhou Yuanli Metal Enterprise. For
details, see the related documentation of Yuanli.
