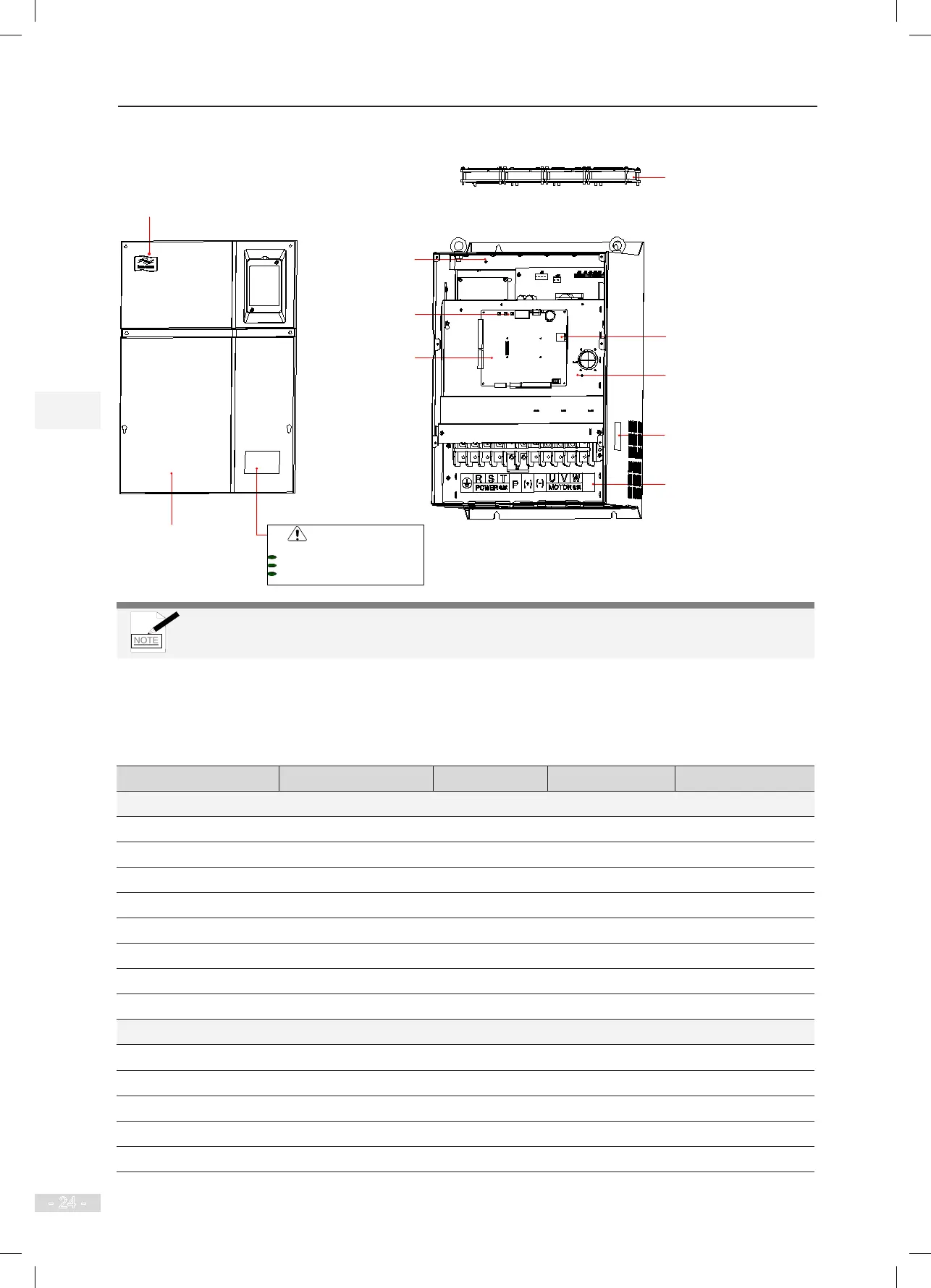

Figure 2-4 Exploded view of the sheet metal structure (37–55 kW)
Fan components
For removing and installing
of the fan,
see section 11.3.
Interface for external
operation panel
For use of the operation panel,
see section 5.2.
Main circuit and grounding
terminals
For related description, see
section 3.2.1.
Keypad
For the use, see
section 5.1.
PG card fixing
holes (4)
For use of the PG
card, see section 4.5.
Logo
Nameplate
For related description, see
section 2.2.
Warning label
Read the manual and follow the safety instructions
before use
Wait 10 mins power down before removing cover
Risk of electric shock
WARNING
Front cover
Equipment bar code
Control board
For related description, see
section 3.2.
The preceding îš¿gures show the exploded views of only common models 2.2 to 55 kW. For the structure
of higher power ratings, contact us.
2.4 Models
Table 2-1 NICE3000
new
models
Controller Model
Power Capacity (kVA) Input Current (A) Output Current (A) Motor Power (kW)
Single-phase 220 V, range: 220–240 V, 50/60 Hz
NICE-L-C-2002 2.0 9.2 5.2 1.1
NICE-L-C-2003 2.9 13.3 7.5 1.5
220-NICE-L-C-4007 3.9 17.9 10.3 2.2
220-NICE-L-C-4011 5.9 25.3 15.5 3.7
220-NICE-L-C-4015 7.3 31.3 19 4.0
220-NICE-L-C-4018 8.6 34.6 22.5 5.5
220-NICE-L-C-4022 10.6 42.6 27.7 11
220-NICE-L-C-4030 13.1 52.6 34.6 15
Three-phase 220 V, range: 220–240 V, 50/60 Hz
NICE-L-C-2002 4.0 11.0 9.6 2.2
NICE-L-C-2003 5.9 17.0 14.0 3.7
220-NICE-L-C-4007 7.0 20.5 18.0 4.0
220-NICE-L-C-4011 10.0 29.0 27.0 5.5
220-NICE-L-C-4015 12.6 36.0 33.0 7.5
