6 System Commissioning and Functions NICE3000
new
User Manual
- 140 -
6
Function Code
Parameter
Name
Setting Range Value Remarks
Fd-07 HCB:JP1 input
0: Reserved
NO/NC input:
1/33: Elevator lock signal
2/34: Fire emergency signal
3/35: Present oor forbidden
4/36: VIP oor signal
5/37: Security oor signal
6/38: Door close button input
4
1. These parameters are used to
set the functions of JP1 and JP2
on the HCB.
2. The setting is effective to the
HCBs for all oors.
3. You can use either of JP1 and
JP2 for VIP input.
Fd-08 HCB:JP2 input 4
F6-46
VIP function
selection
Bit1: VIP enabled by terminal Bit1 = 1
After the hall call input for
the VIP function is active, the
elevator enters the VIP state.
6.1.6 Riding Comfort Adjustment
Riding Comfort Adjustment
The riding comfort is an important factor of the elevator’s overall performance. Improper installation of
mechanical parts and improper parameter settings will cause discomfort. Enhancing the riding comfort
mainly involves adjustment of system control and the elevator’s mechanical construction.
1. Performance adjustment of system control

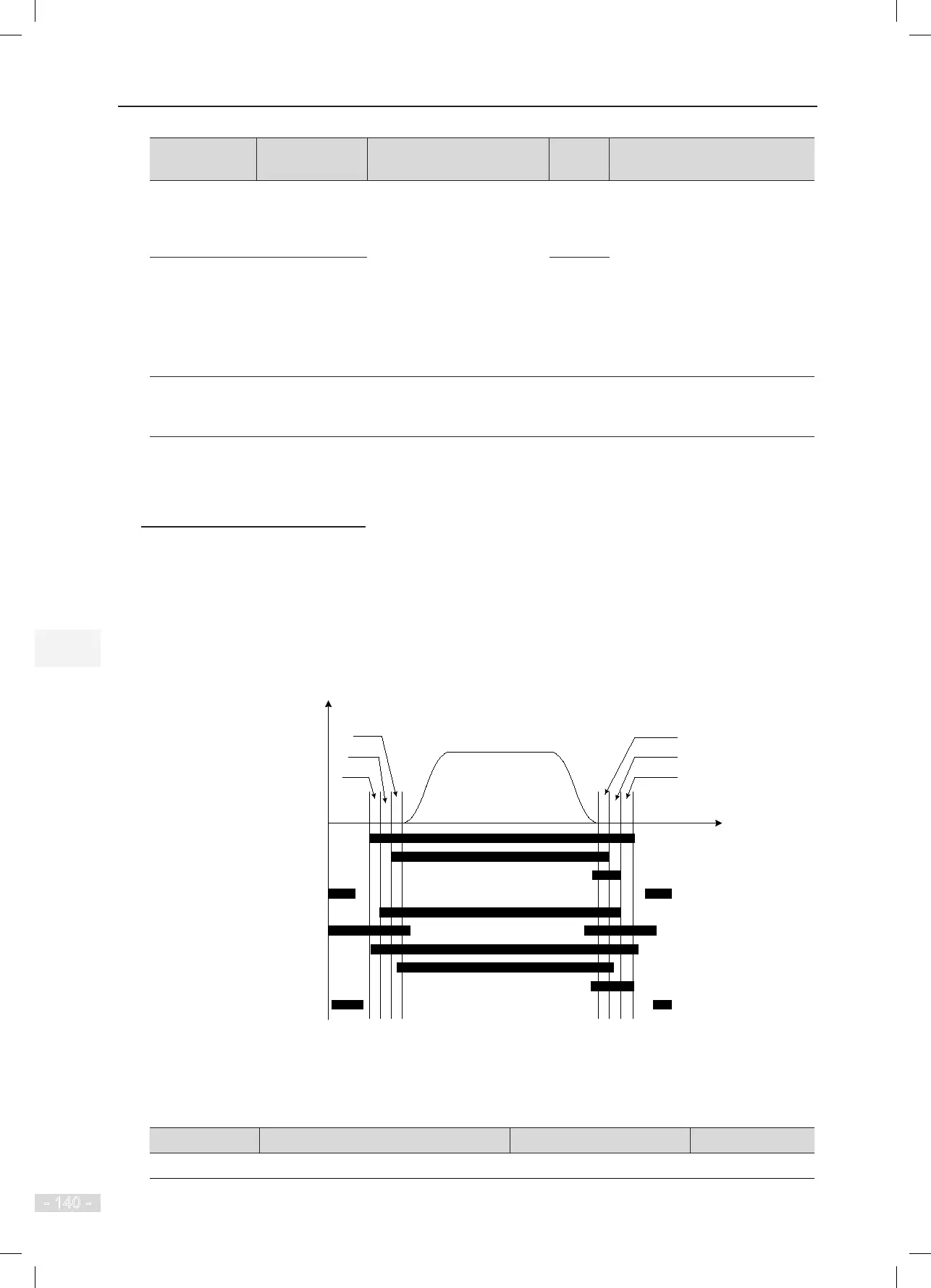

Figure 6-11 Running time sequence
V (speed)
t (time)
F3-18
F3-19
F8-11
F3-20
RUN contactor
Brake contactor
Shorting door lock circuit contactor
Shorting PMSM stator contactor
Internal running status
Leveling signal
RUN contactor feedback
Brake contactor feedback
Shorting door lock circuit
contactor feedback
Shorting PMSM stator
contactor feedback
F2-
17
F2-16
Riding comfort adjustment at elevator startup and stop
The parameter setting related to riding comfort adjustment at elevator startup and stop is described
in the following table.
Function Code Parameter Name Setting Range Default
F2-00 Speed loop proportional gain Kp1 0–100 40
