12 EMC NICE3000
new
User Manual
- 308 -
12

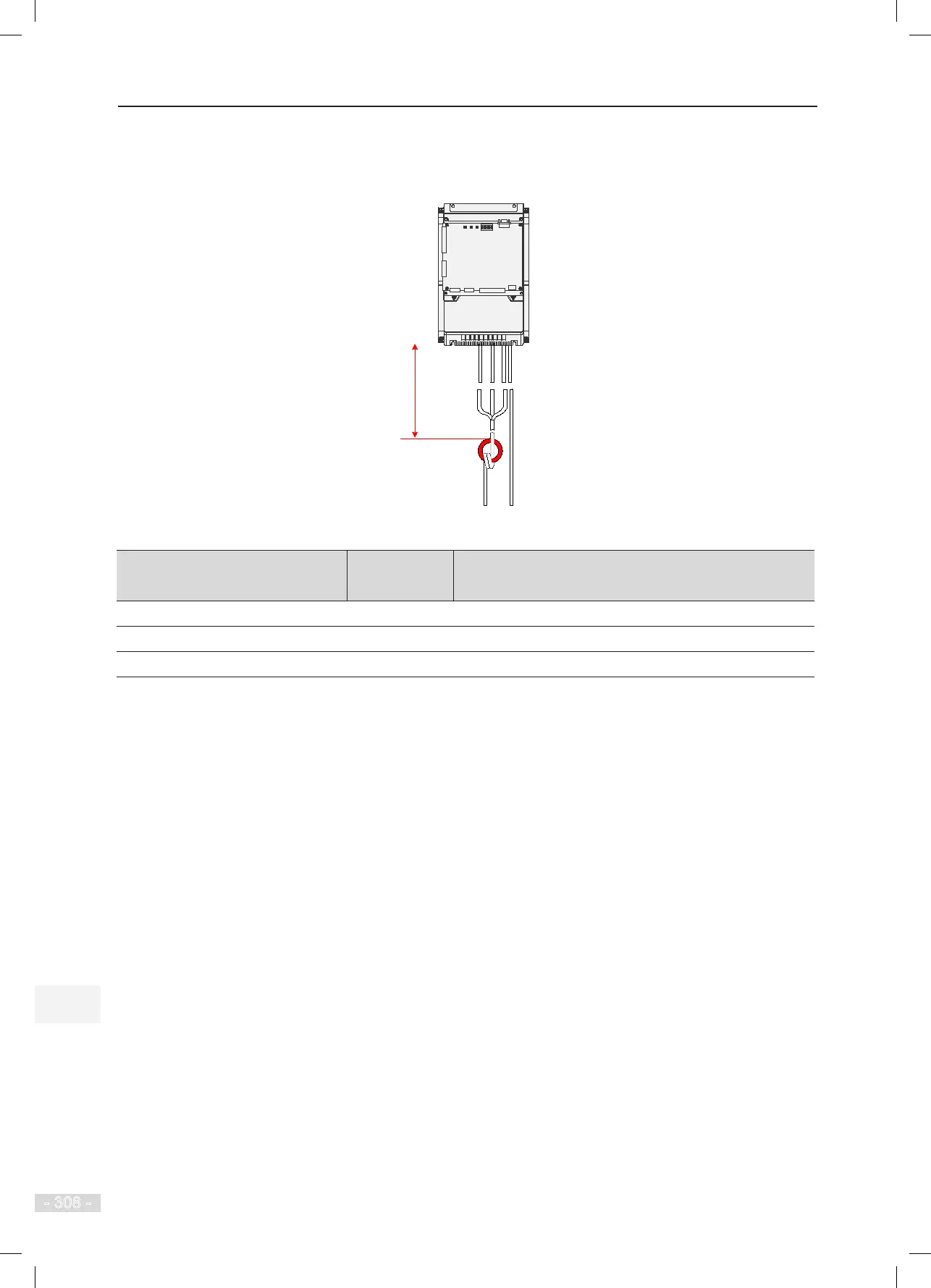

The following gure shows installation of the common-mode lter.
Figure 12-11 Installation of the common-mode lter
PE
V
U
Cable length
< 300 mm
Magnetic ring
(wind three coils)
W
Table 12-12 Recommended common-mode lter model
Common-Mode Filter Model SN
Dimensions
(Outer Diameter x Inner Diameter x Thickness)
DY644020H 11013031 64 x 40 x 20 mm
DY805020H 11013032 80 x 50 x 20 mm
DY1207030H 11013033 120 x 70 x 30 mm
12.6 Circuit Breaker and Fuse Selection
The earth leakage current of the controller is larger than 3.5 A, requiring grounding protection.
The controller produces DC leakage current inside protective conductor, thus a B-type (delay-time) ELCB
must be used.
When the ELCB malfunction occurs, you can:
Use an ELCB of higher rated operating current or use a B-type ELCB.
Reduce the carrier frequency of the AC drive.
Shorten the length of drive cables of the motor.
Take more leakage current suppression measures.
The recommended leakage breaker manufacturers are CHINT and Schneider.
