Monarch nice3000 User Manual

NICE3000
new
User Manual
4 Peripheral Devices and Options
- 65 -
4

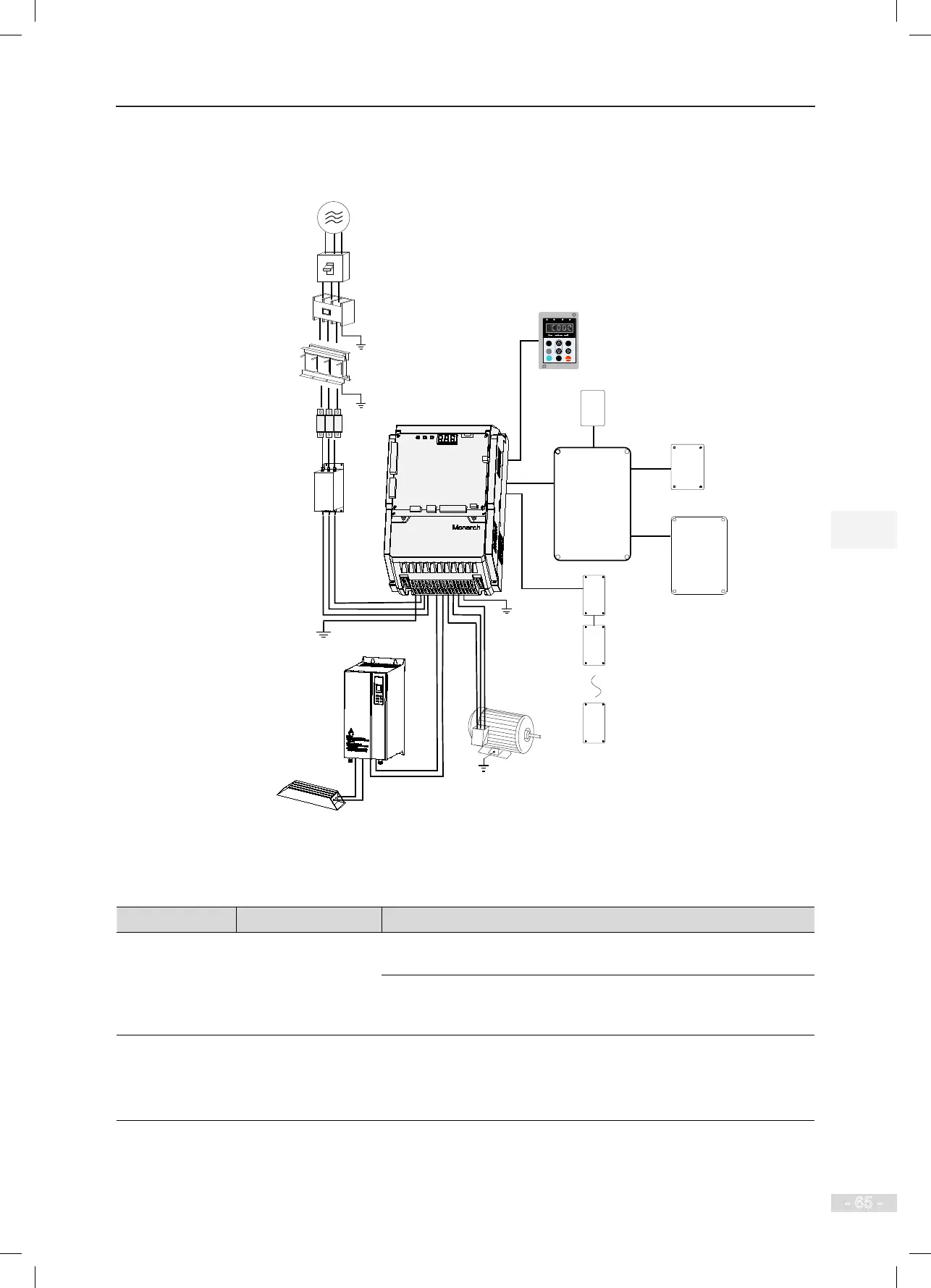

The following gure shows the recommended peripheral device connection diagram.
Figure 4-1 Peripheral device connection diagram
Ground
AC input
reactor
Electromagnetic
contactor
Circuit
breaker
Three-phase AC
power supply
Regen. resistor
EMC filter
P(+)
BR
Braking unit
+
-
Motor
External
operation panel
Ground
Ground
MCTC-CTB
MCTC
-CCB
MCTC-HCB
MCTC-HCB
Voice
announcer
Bottom floor
Top floor
MCTC-HCB
Fuse
NICE3000
new
integrated
elevator
controller
Ground
Ground
MF.K
RUN
STOP
RES
QUICK
ENTER
RUN
LOCAL/REMOT FED/REV TUNE/TC
RPM
%
A VHz
PRG
4.1.2 Peripheral Device Descriptions
Table 4-1 Peripheral device descriptions
Peripheral Device Mounting Position Function Description
Circuit breaker Power input side
Molded case circuit breaker (MCCB): Cut off power supply when
overcurrent occurs on downstream devices
Earth leakage circuit breaker (ELCB): Provide protection against
potentially leakage current during controller running to prevent electric
shock and even a re.
(Electromagnetic)
contactor
Between circuit
breaker and controller
input side
Apply/Cut off the power supply of the controller.
Do not start and stop the controller frequently by opening or closing
the contactor (less than twice per minute) nor use it to directly start the
controller.
