12 EMC NICE3000
new
User Manual
- 304 -
12

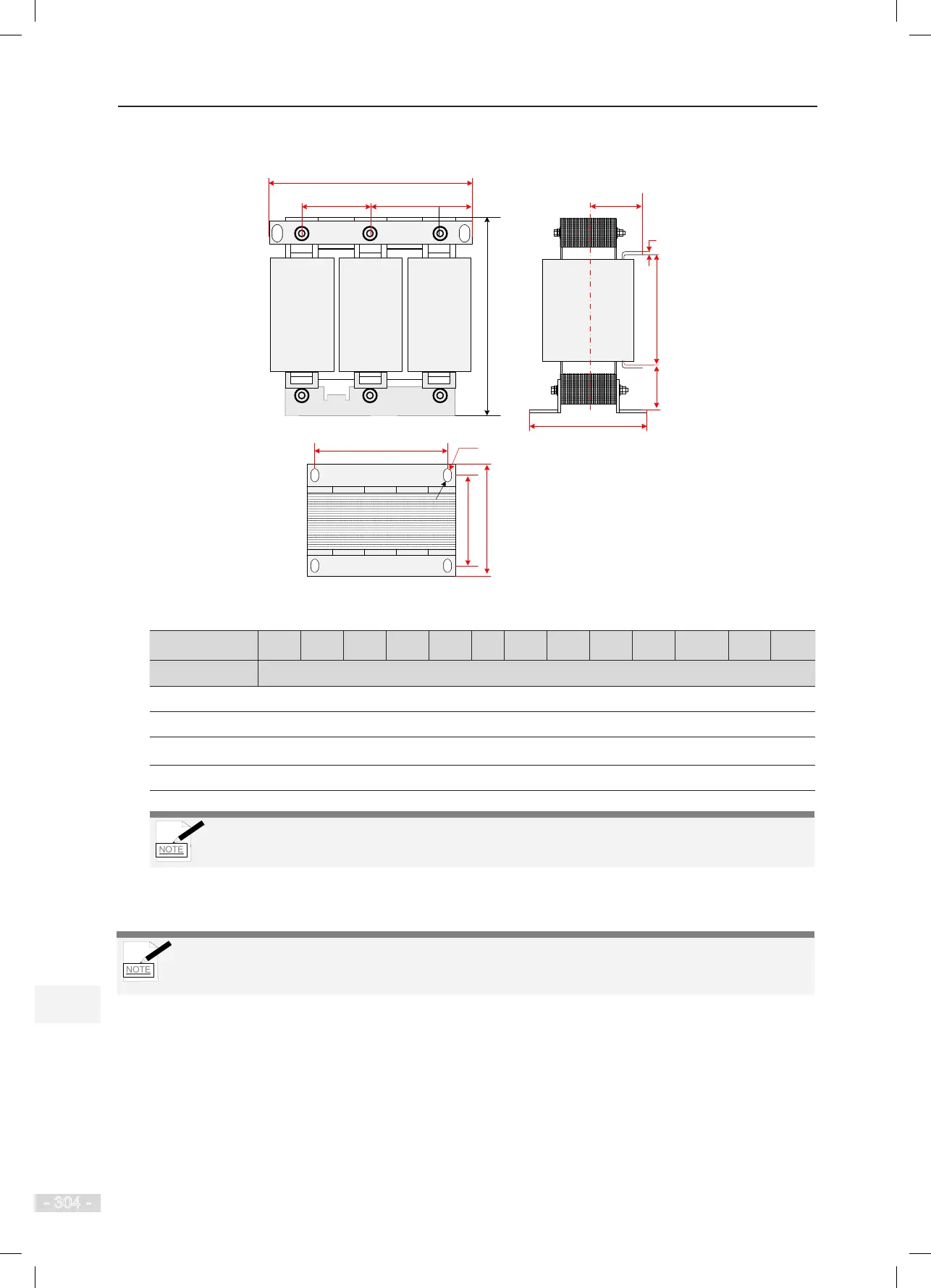

Figure 12-4 Physical dimension diagram of 150–330 A AC reactor
R S T
X Y Z
A
D
B
C
I
F
G
H
E
J
ML
K
Table 12-3 Physical dimensions of 150–330 A AC reactor
Rated Current A B C D E F G H I J K L M
(A) (mm)
150 250 81 81 230 92 5 140 38 155 182 11*18 76 102
200 250 81 81 230 102 5 140 40 175 182 11*18 96 122
250 250 81 81 230 102 5 155 50 175 182 11*18 96 122
330 290 95 95 275 107 5 155 60 180 214 11*18 100 126
NOTE
The dimensions of the AC reactors provided here are for reference only, and the actual dimensions
are subject to the material product.
12.5.2 EMC Filter
NOTE
Select a cable as short as possible to connect the lter and the controller. The cable length must be less
than 30 cm. Make sure to connect the lter and the controller to the same grounding reference surface to
implement reliable grounding of the lter. Otherwise, the desired ltering effect will not be achieved.
1. Standard EMC Filter
This type of lters satisfy the EN 61800-3 category C2 and EN12015 requirement of CE certication.
Connect the lter to ground reliably and ensure that the length of the cable connecting the controller
and the lter is less than 30 cm. For detailed specication on cables, see Table 4-2.
Schaffner and Jianli lters are recommended, as listed in the following table.
