NICE3000
new
User Manual 12 EMC
- 303 -
12
3) 15 A AC reactor
155max
150max
148±1
95±1
61±2
76±2
4-6*15

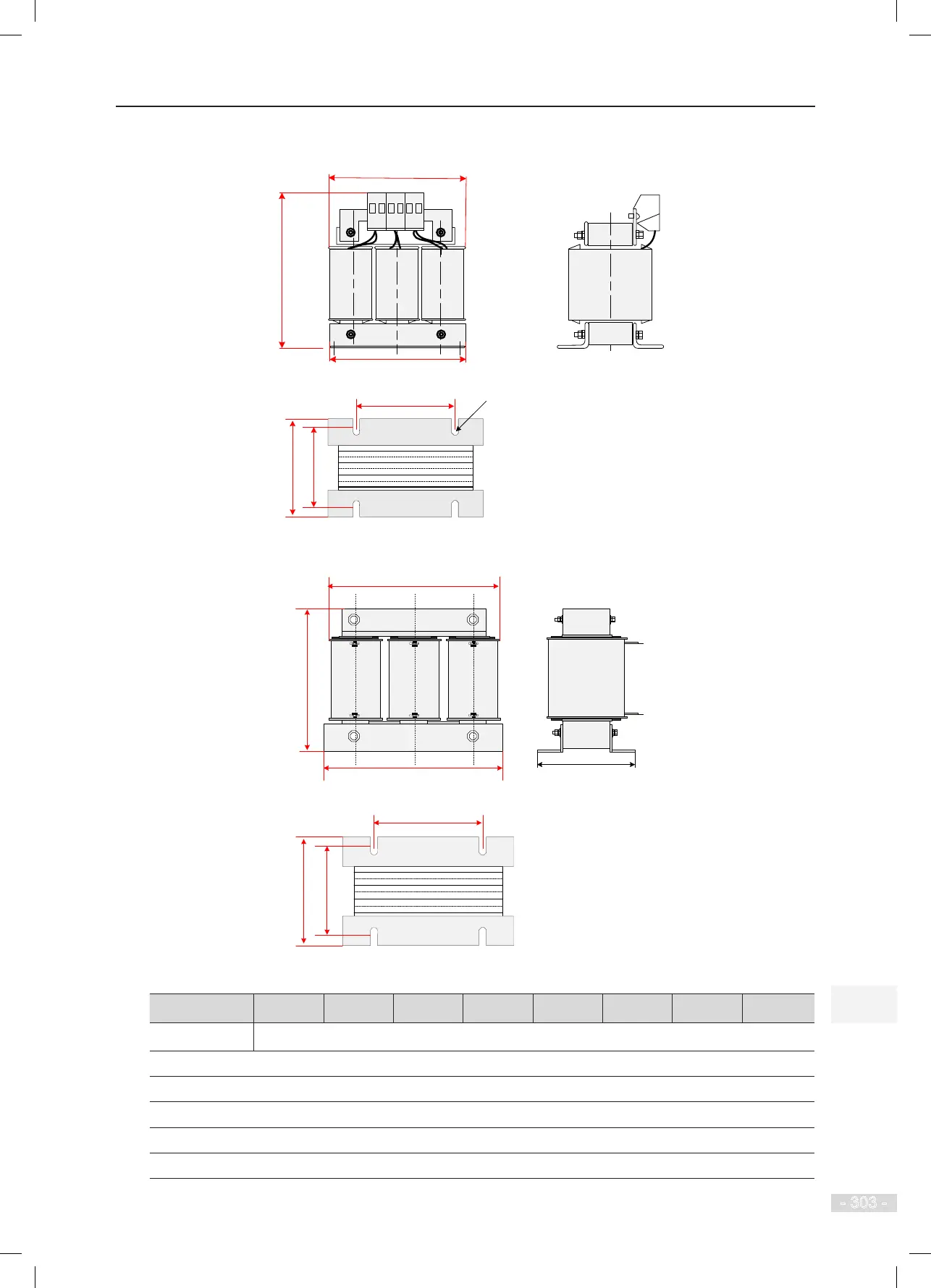

Figure 12-3 Physical dimension diagram of 30–120 A AC input reactor
R S T
X Y Z
A
C
B
D
R
X
E
HG
Table 12-2 Physical dimensions of 50–120 A AC reactor
Rated Current A B C D E F G H
(A) (mm)
30 155 130 148 150 95 6*15 95 80
40 155 130 148 150 95 6*15 95 80
50 155 130 148 150 95 6*15 95 80
80 195 160 188 150 120 8.5*20 92 72
120 195 160 188 135 120 8.5*20 112 72
