3 Mechanical and Electrical Installation NICE3000
new
User Manual
- 48 -
3
3.3 Interface and Communication
3.3.1 Digital Input (DI)
Quantity 24
Code X1 to X24
Function code F5-01 to F5-24
Input impedance 3.5 kΩ
Effective voltage 10–30 VDC
Electrical feature Optocoupler isolation
The 24 DI terminals provides inputs to the MCB in parallel for monitoring the elevator status. All the
terminals share the COM ground. After 24 V voltage is input to a terminal, the signal indicator of the
terminal becomes ON.

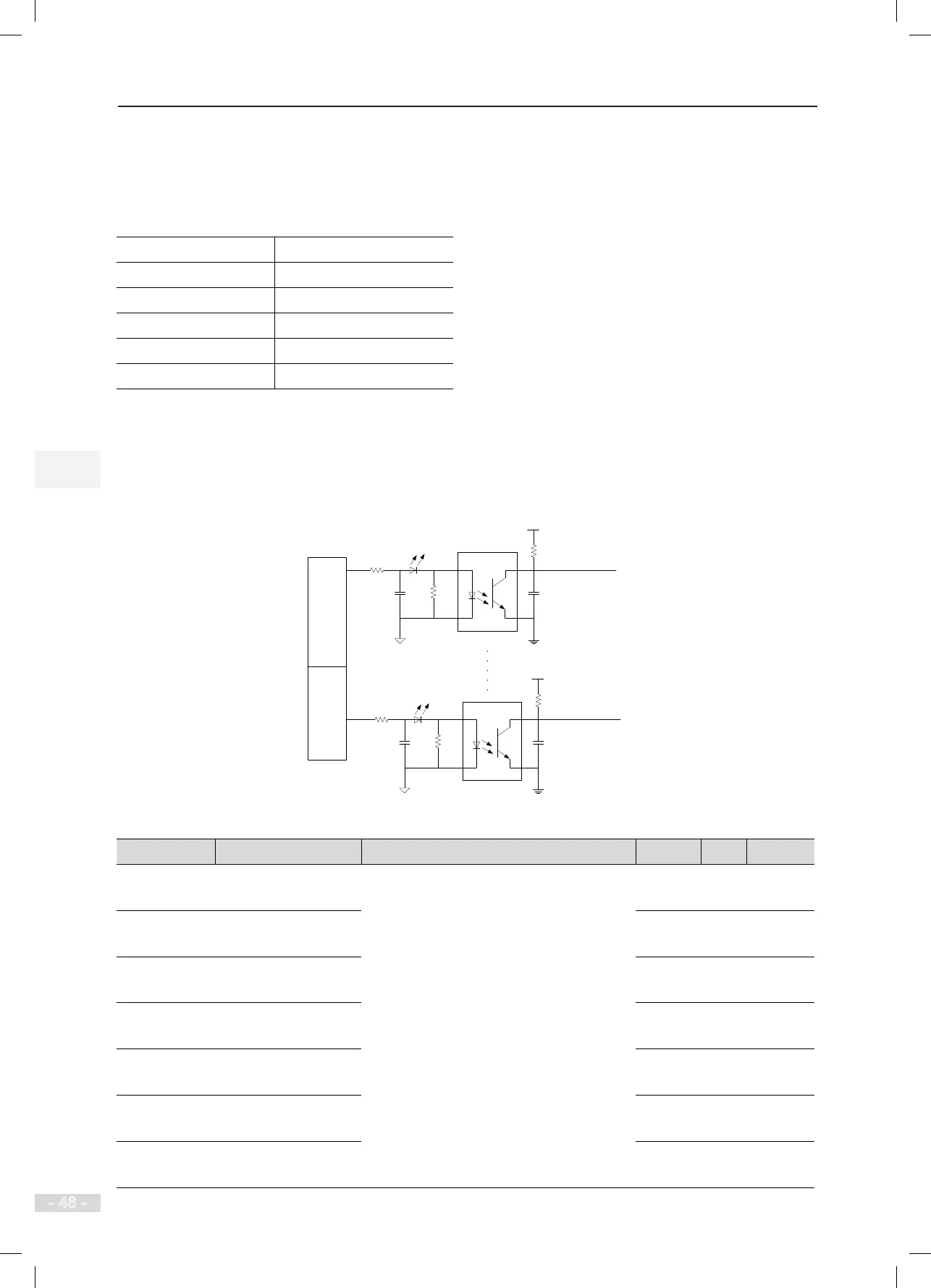

Figure 3-22 DI circuit
VCC
X1
VCC
X24
I/
O
I/O
DI Optocoupler
ARM
CN1
CN9
The DI functions are set in F5-01 to F5-24.
Function Code Parameter Name Setting Range
Default Unit
Property
F5-01 X1 function selection
01/33: Up leveling signal NO/NC
03/35: Door zone signal NO/NC
02/34: Down leveling signal NO/NC
04/36: Safety circuit feedback NO/NC
05/37: Door lock circuit feedback NO/NC
06/38: RUN contactor feedback NO/NC
07/39: Brake contactor feedback NO/NC
22/54: Shorting door lock circuit contactor
feedback NO/NC
08/40: Inspection signal NO/NC
09/41: Inspection up signal NO/NC
10/42: Inspection down signal NO/NC
(To be continued)
33 -
★
F5-02 X2 function selection 35 -
★
F5-03 X3 function selection 34 -
★
F5-04 X4 function selection 4 -
★
F5-05 X5 function selection 5 -
★
F5-06 X6 function selection 38 -
★
F5-07 X7 function selection 39 -
★
