5 Use of the Commissioning Tools NICE3000
new
User Manual
- 98 -
Chapter 5 Use of the Commissioning Tools
The NICE3000
new
supports îš¿ve commissioning tools, as listed in the following table.
Tool Function Description Remark
Onboard 3-button keypad
It is used to enter the shaft commissioning commands
and view oor information.
Standard
LED operation panel
(MDKE)
It is used to view and modify parameters related to
elevator drive and control.
Optional
LED operation panel
(MDKE6)
It is used to upload and download controller parameters. Optional
Host computer monitoring
software (NEMS)
It is used to monitor the current elevator state, view
and modify all parameters, and upload and download
parameters on the PC.
Optional.
Download the software at
www.szmctc.com.
Andriod cell phone
commissioning software
(EDSAP)
A Bluetooth module is used to connect the MCB and
the Android cell phone installed with the commissioning
software, through which you can commission the
elevator, and upload and download parameters.
The software does not
provide the English version
currently.
The following part describes the commonly used keypad and LED operation panel (MDKE) in detail.
5.1 Use of the Onboard Keypad
5.1.1 Buttons and Display
The onboard keypad consists of three 7-segment LEDs and three buttons. You can view information about
the controller and enter simple commands on the keypad.
The keypad is exposed, and pay attentions to the following points during use:
1. Wear insulated gloves when performing operations on the keypad to prevent electric shock or damage to the
controller components due to electrostatic discharge.
2. Do not use a metal or sharp tool to press the button to prevent the short circuit fault or damage to the components
on the MCB.

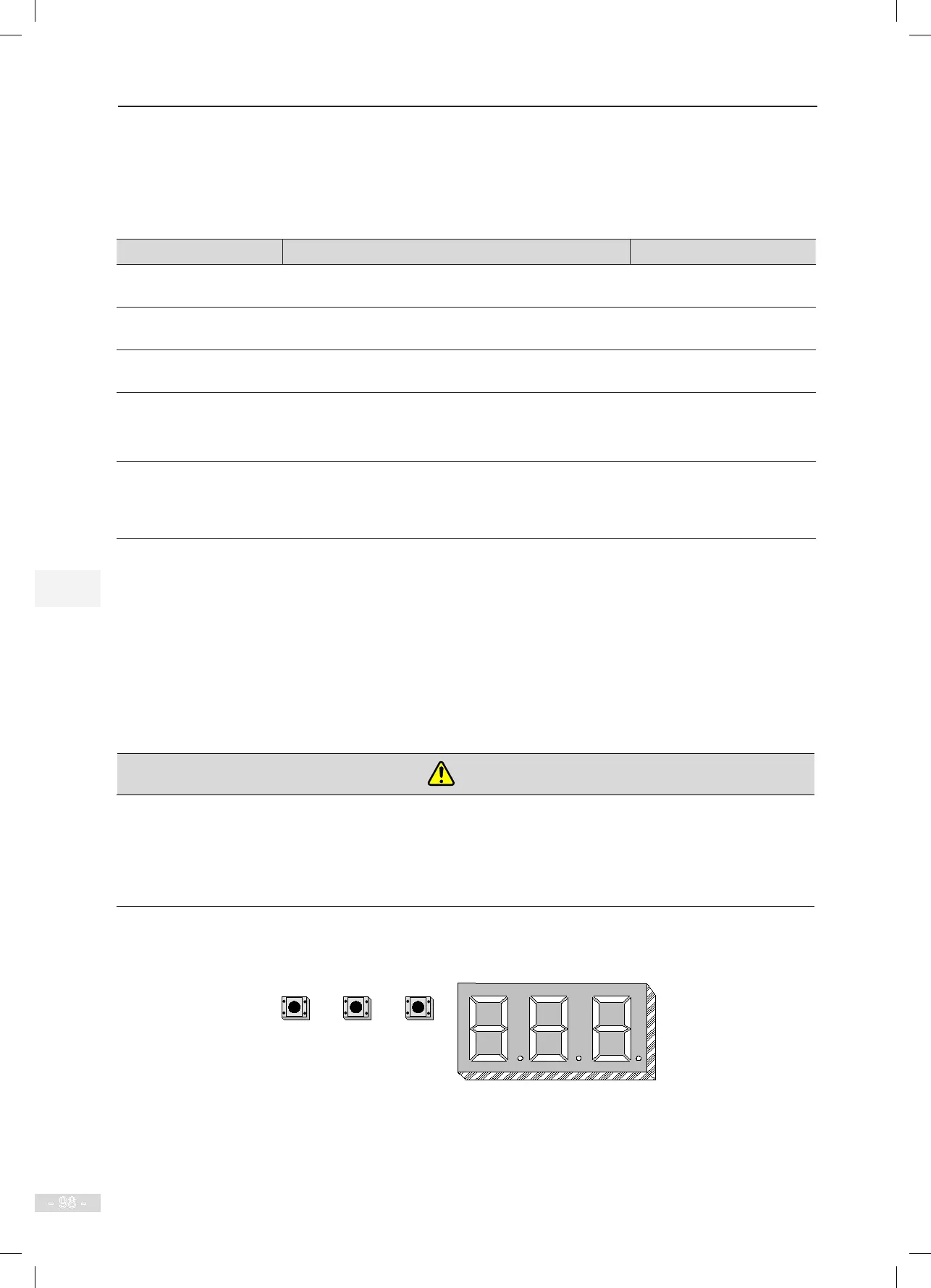

The following îš¿gure shows the appearance of the keypad.
Figure 5-1 Appearance of the keypad
As shown in the preceding îš¿gure, the three buttons are PRG, UP, and SET. The functions of the three
buttons are described in the following table.
