8 Description of Function Codes NICE3000
new
User Manual
- 236 -
8

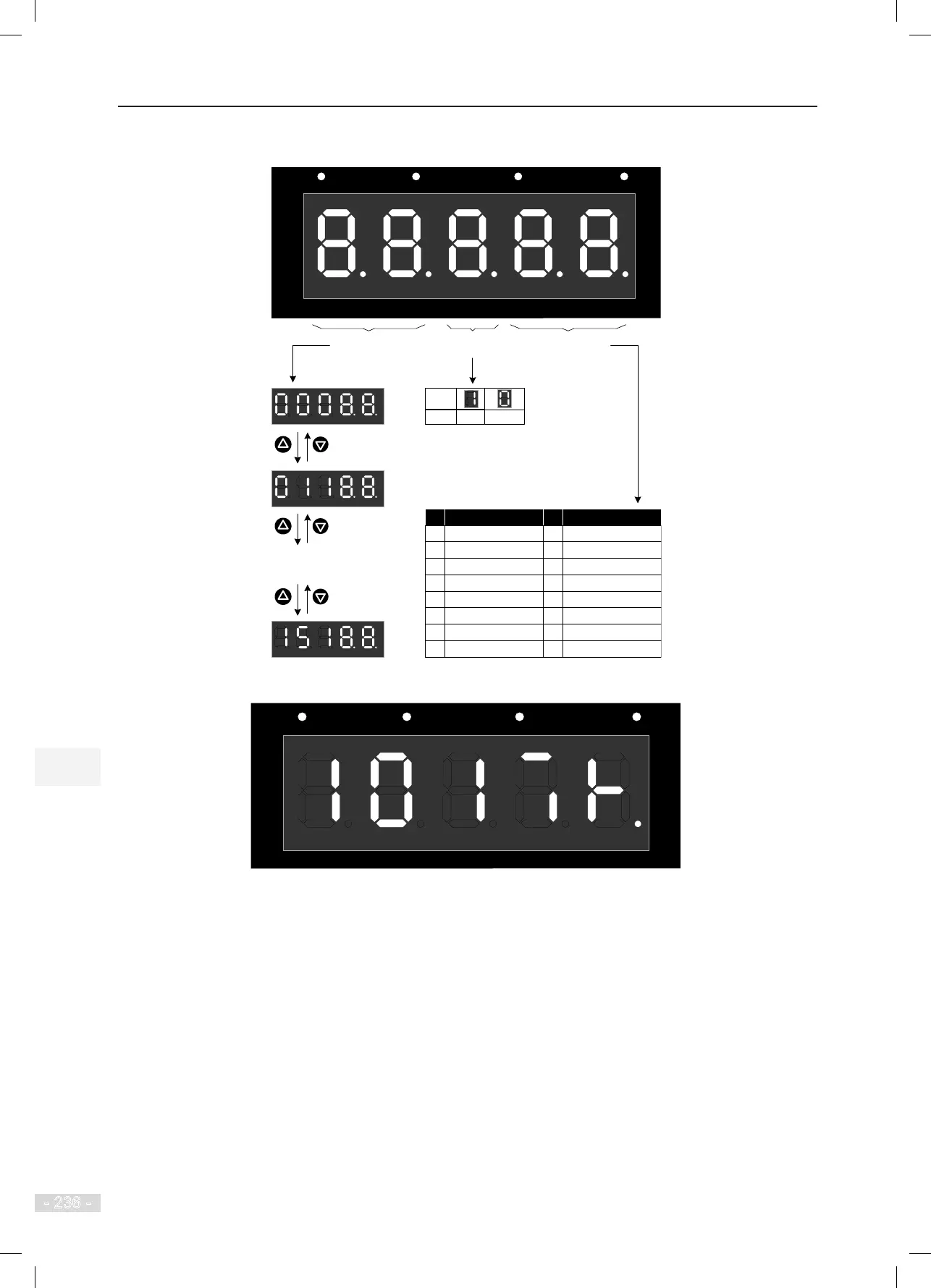

Figure 8-17 FA-26 Input state
RUN
LOCAL/REMOT FED/REV TUNE/TC
0
1
24
5
3
6
7
8
9
10
14
11
12
13
15
Present signal No.
State of present
signal
Each segment
indicates a signal
Segment ON: active
Segment OFF: inactive
Display
Meaning
Active Inactive
...
No. Signal No. Signal
0
1
2
3
4
5
7
Up leveling signal
Down leveling signal
Door zone signal
Safety circuit feedback
Door lock circuit feedback
RUN contactor feedback
Brake contactor feedback
8
9
10
12
13
14
15
Inspection signal
Inspection up
Inspection down
Up limit signal
Down limit signal
Overload signal
Full-load signal
Reserved
11 Fire emergency signal
6
Figure 8-18 Example display of FA-26
RUN LOCAL/REMOT FED/REV TUNE/TC
0
1
24
5
3
6
7
8
9
10
14
11
12
13
15
According to the preceding gure, the currently viewed signal 10 (Inspection down) is 1 (Active); besides
signal 10, signals 4 (Safety circuit feedback), 5 (Door lock circuit feedback), 6 (RUN contactor feedback), 7
(Brake contactor feedback), and 8 (Inspection signal) are active.
