NICE3000
new
User Manual
3 Mechanical and Electrical Installation
- 51 -
3

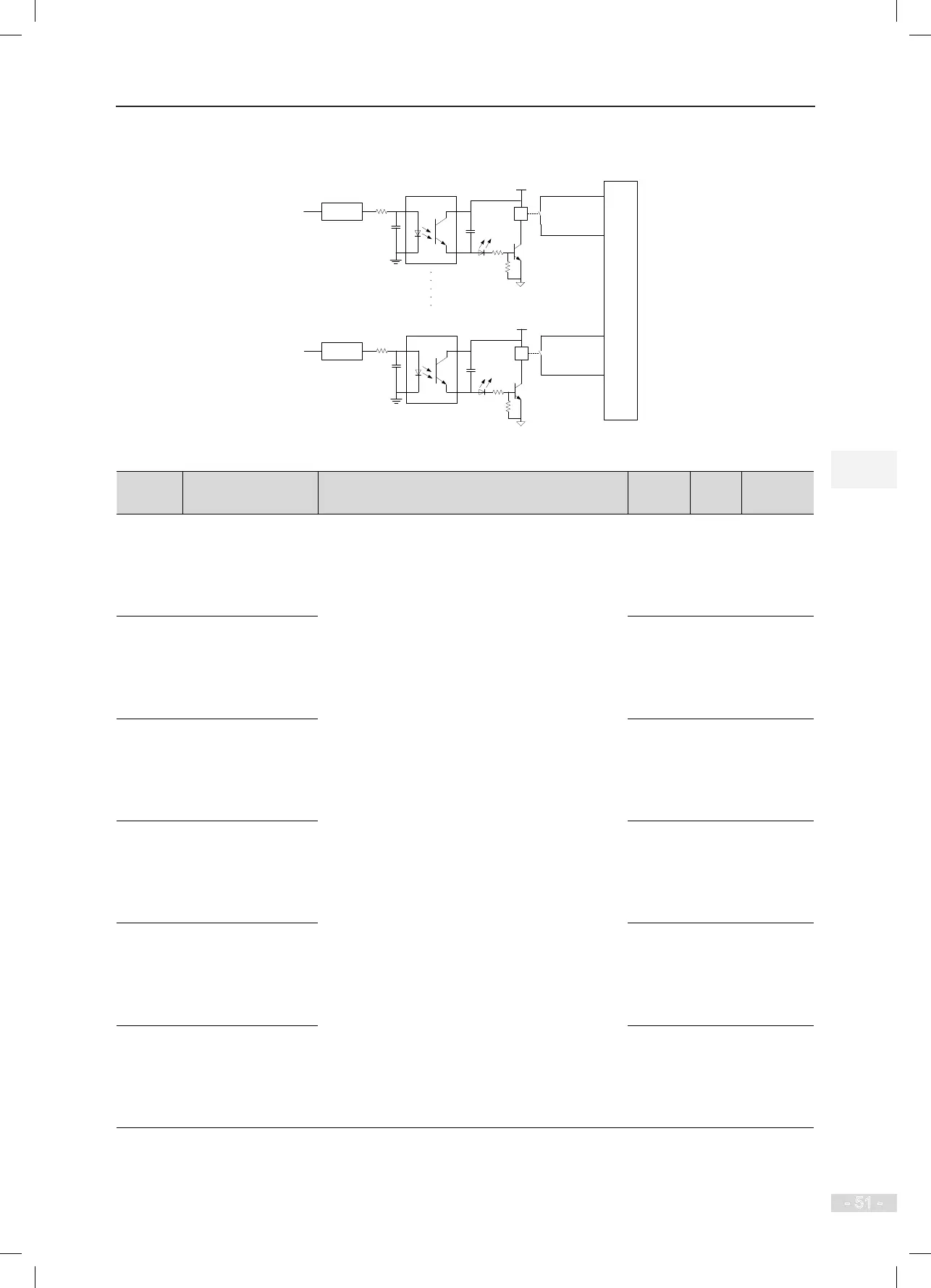

Figure 3-24 Relay output circuit
VCC
I/O
ARM
Optocoupler
DO
Y1
M1
Relay
VCC
I/O
Optocoupler
Y6
M6
Relay
CN7
BUFFER
BUFFER
The DO functions are set in F5-26 to F5-31.
Function
Code
Parameter Name Setting Range
Default Unit Property
F5-26 Y1 function selection
01: RUN contactor control
02: Brake contactor control
03: Shorting door lock circuit contactor control
04: Fire emergency oor arrival signal feedback
Others:
00: Invalid
05: Door machine 1 open
06: Door machine 1 close
07: Door machine 2 open
08: Door machine 2 close
09: Brake and RUN contactors healthy
10: Fault state
11: Running monitor
12: Shorting PMSM stator contactor
13: Emergency evacuation automatic switchover
14: System healthy
15: Emergency buzzer control
16: Higher-voltage startup of brake
17: Elevator running in up direction
18: Lamp/Fan running
19: Medical sterilization
20: Non-door zone stop
21: Electric lock
22: Non-service state
1 -
F5-27 Y2 function selection 2 -
F5-28 Y3 function selection 3 -
F5-29 Y4 function selection 4 -
F5-30 Y5 function selection 0 -
F5-31 Y6 function selection 0 -
