Spitfire – Maintenance Manual
68
AP-74096, Rev. 1.0, 09/06/05

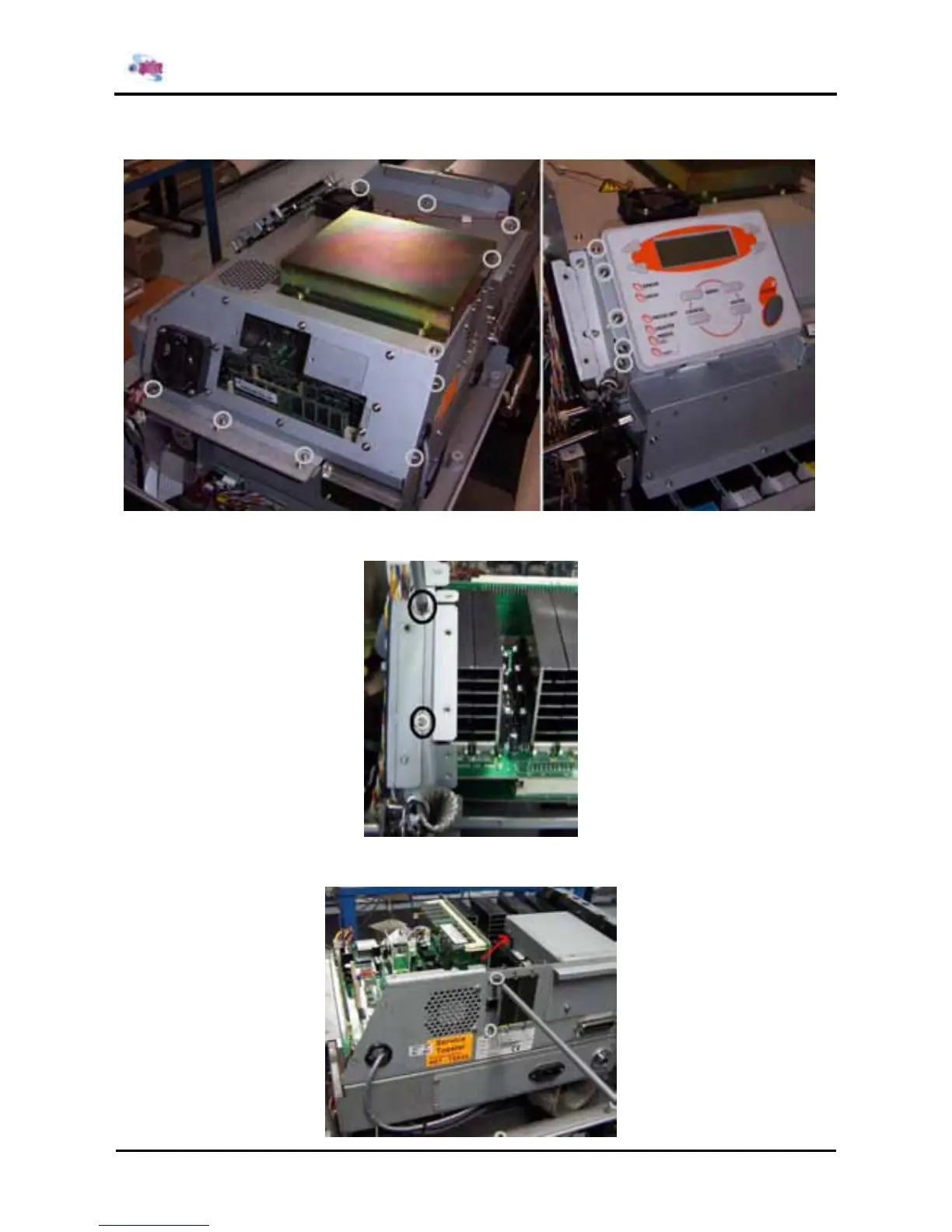

Step 7 : Remove the mainboard cover by loosening the 16 screws.
Step 8 : Remove the bracket by loosening the 2 screws, this to have more accessibility to the mainboard
Step 9 : Remove the PCI_Linux board assembly by loosening the 2 screws.
