Spitfire – Maintenance Manual
70
AP-74096, Rev. 1.0, 09/06/05

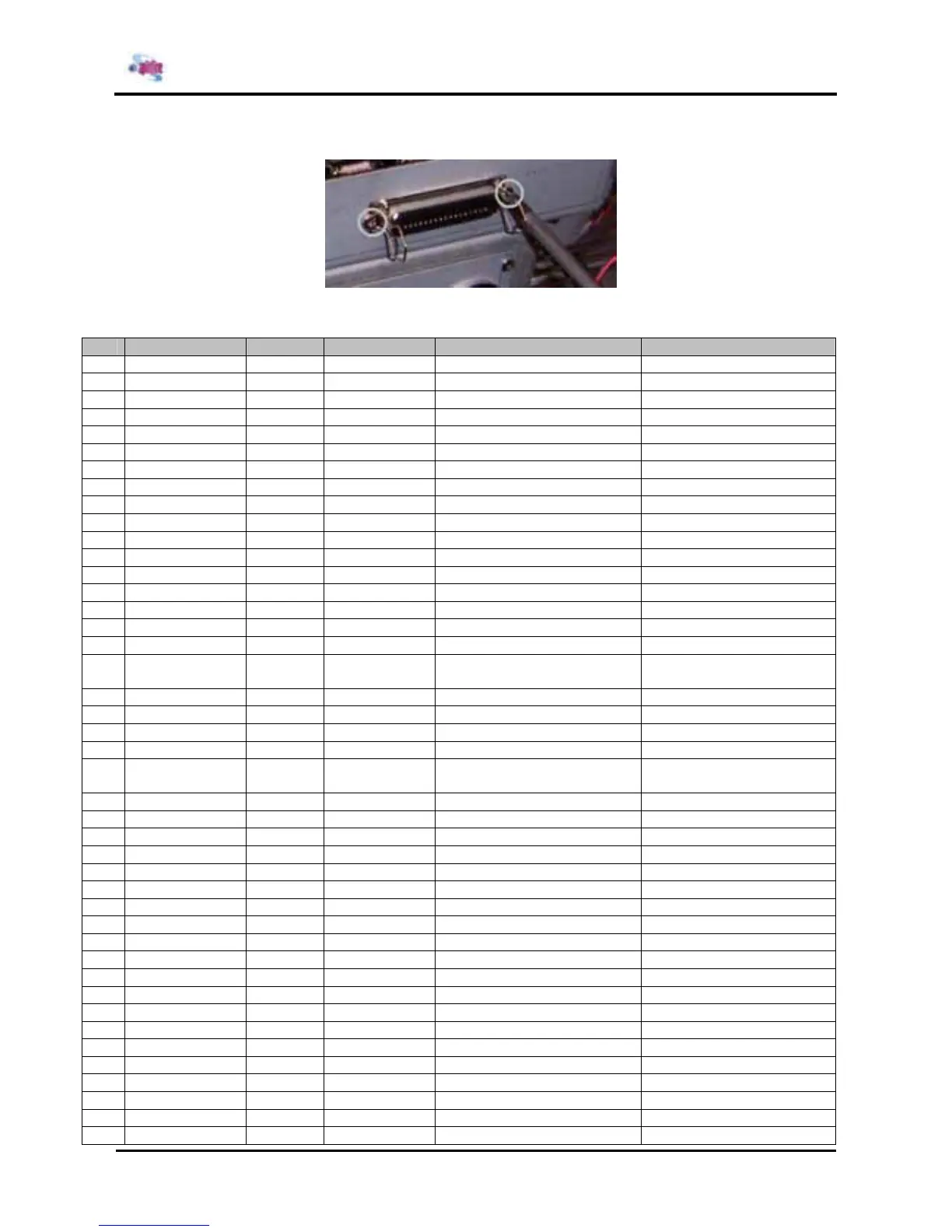

Step 14 : Remove the Centronics interface by loosening the two screws.
Step 15 : Disconnect following cables.
N° Connector N° # of pins Colour Connected to Remarks
1 J101 12 White Main Power Lock type
2 J102 6 White 12 V Power Lock type
3 J103 168 DIMM
4 J104 68
5 J105 28 White or black Display Panel Lock type
6 J106 120 PCI_LINUX board
9 J109 39
10 J110 96 White HD_MOTHER board
11 J111 3 White Adhesion FAN 1 Free
12 J112 2 Blue Adhesion FAN 2 For 65, 90 inch spec
13 J113 2 Red Adhesion FAN 3 For 65, 90 inch spec
14 J114 2 Yellow Adhesion FAN 4 For 65, 90 inch spec
15 J115 2 Black Adhesion FAN 5 For 65, 90 inch spec.
16 J116 2 White Adhesion FAN 6 For 90 inch spec.
17 J117 3 Yellow Free
18 J118 3 Black DRV_FAN 1
19 J119 No preparation
20 J120 3 Red Waste fluid BOX sensor
cable
21 J121 4 White Ink cover sensor
22 J122 5 White Lever foot SW cable
23 J123 4 Black Lever up sensor Transmission photosensor
24 J124 4 Yellow Lever down sensor Transmission photosensor
25 J125 6 White Maintenance origin sensor
cable
Transmission photosensor
26 J126 No preparation
27 J127 5 Red Head slide sensor
28 J128 5 Yellow P_REAR_L sensor
29 J129 4 Blue P_REAR_R sensor
30 J130 4 CR origin sensor Transmission photosensor
31 J131 5 Black Wiper origin sensor Transmission photosensor
32 J132 No preparation
33 J133 30 White or black JUNCTION board Lock type
34 J134 30 White or black JUNCTION board Lock type
35 J135 HEAD_DRV board
36 J136 HEAD_DRV board
37 J137 30 White or black CR board Lock type
38 J138 30 White or black CR board Lock type
39 J139 30 White or black CR board Lock type
40 J140 30 White or black CR board Lock type
41 J141 30 White or black CR board Lock type
42 J142 30 White or black CR board Lock type
43 J143 30 White or black CR board Lock type
44 J144 30 White or black CR board Lock type
45 J145 (87) 30 White or black CR board Lock type
